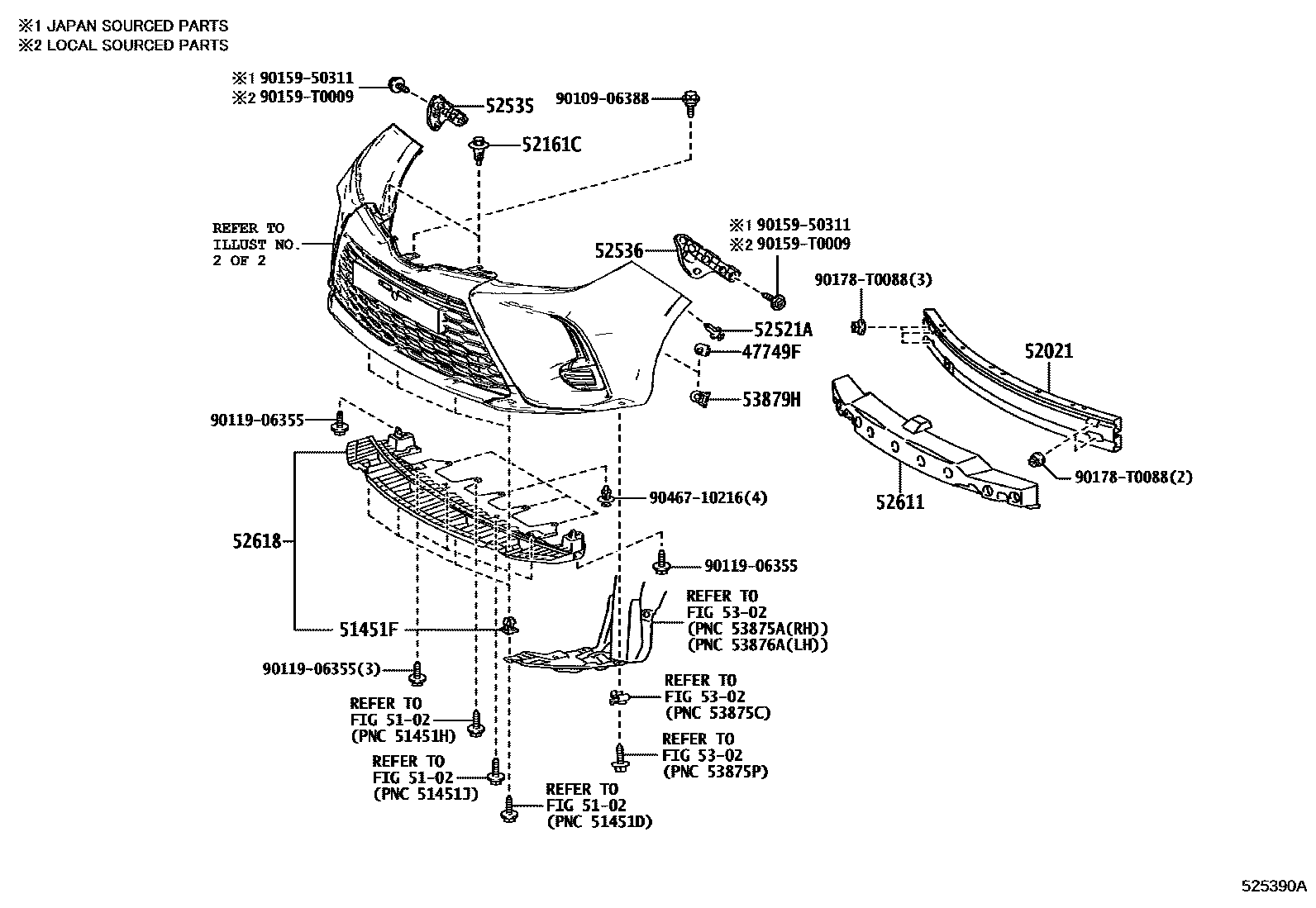

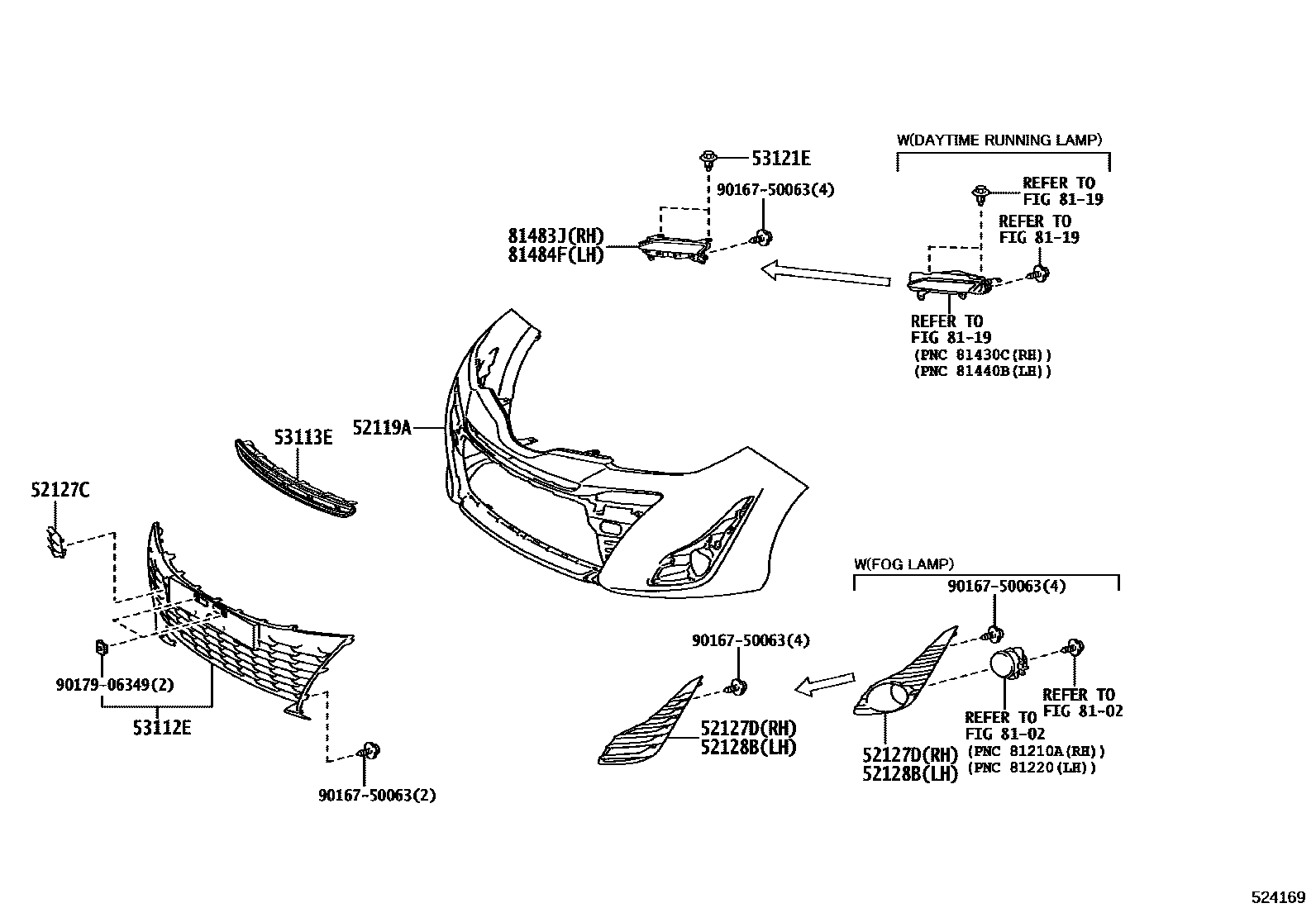

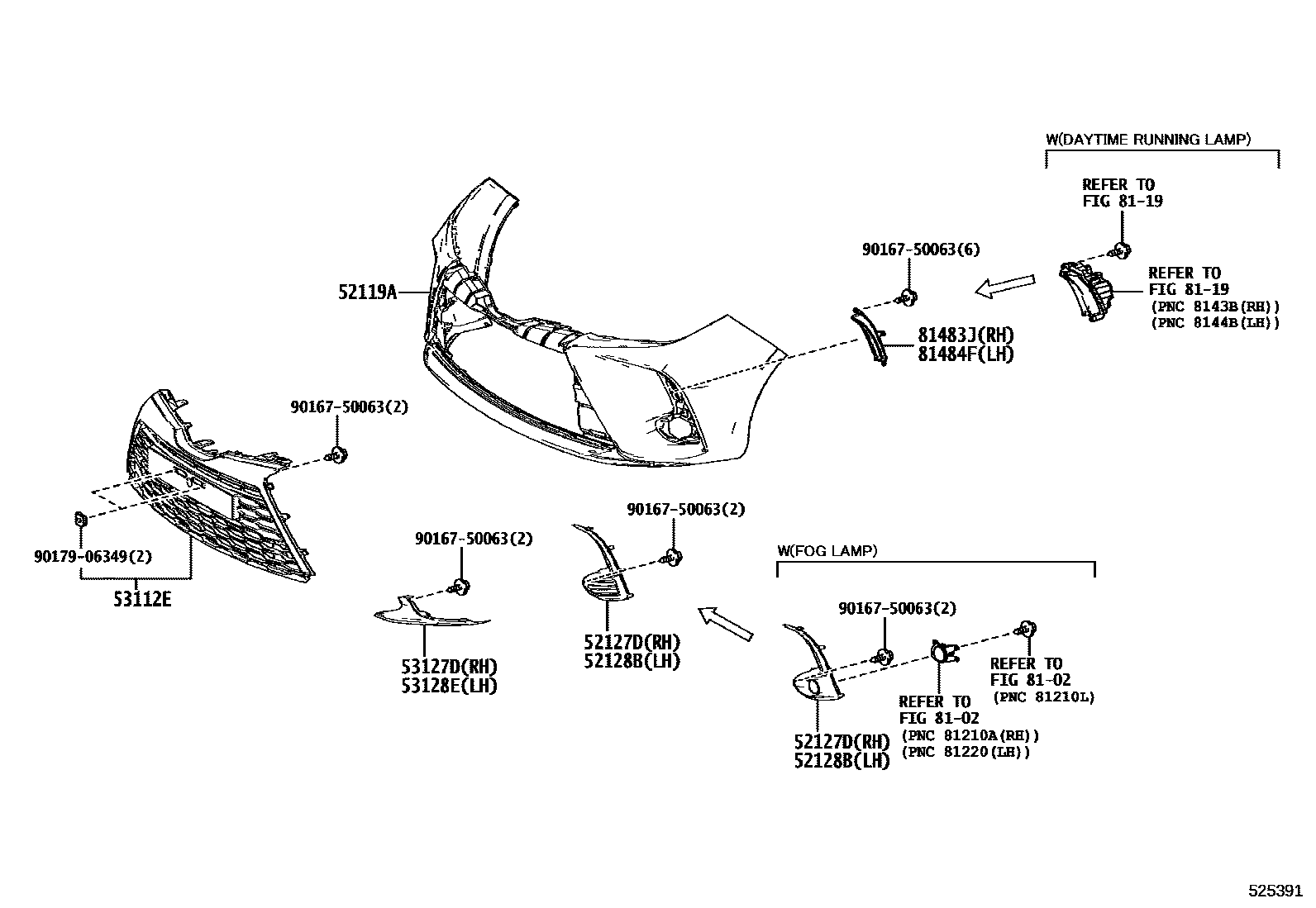

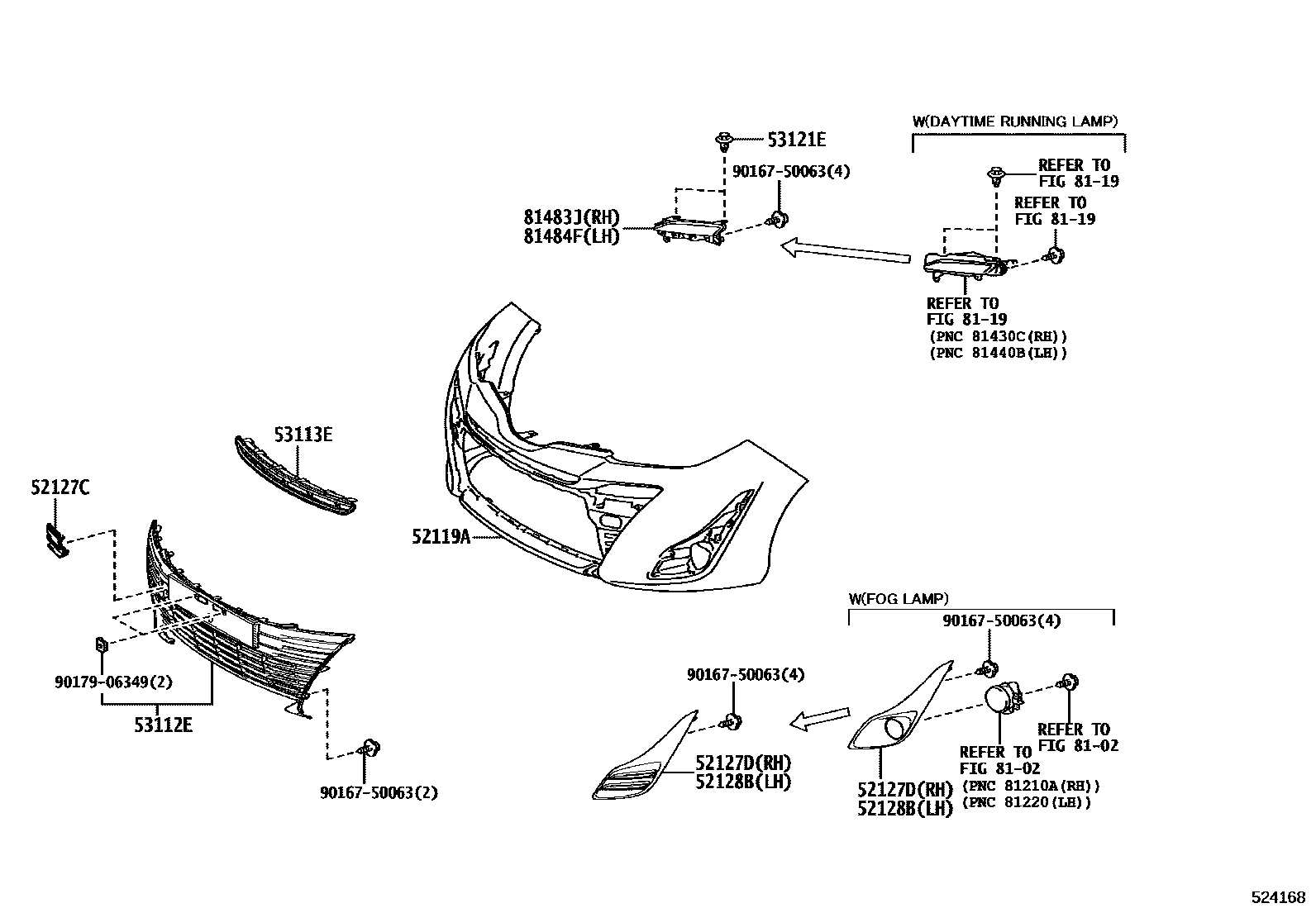

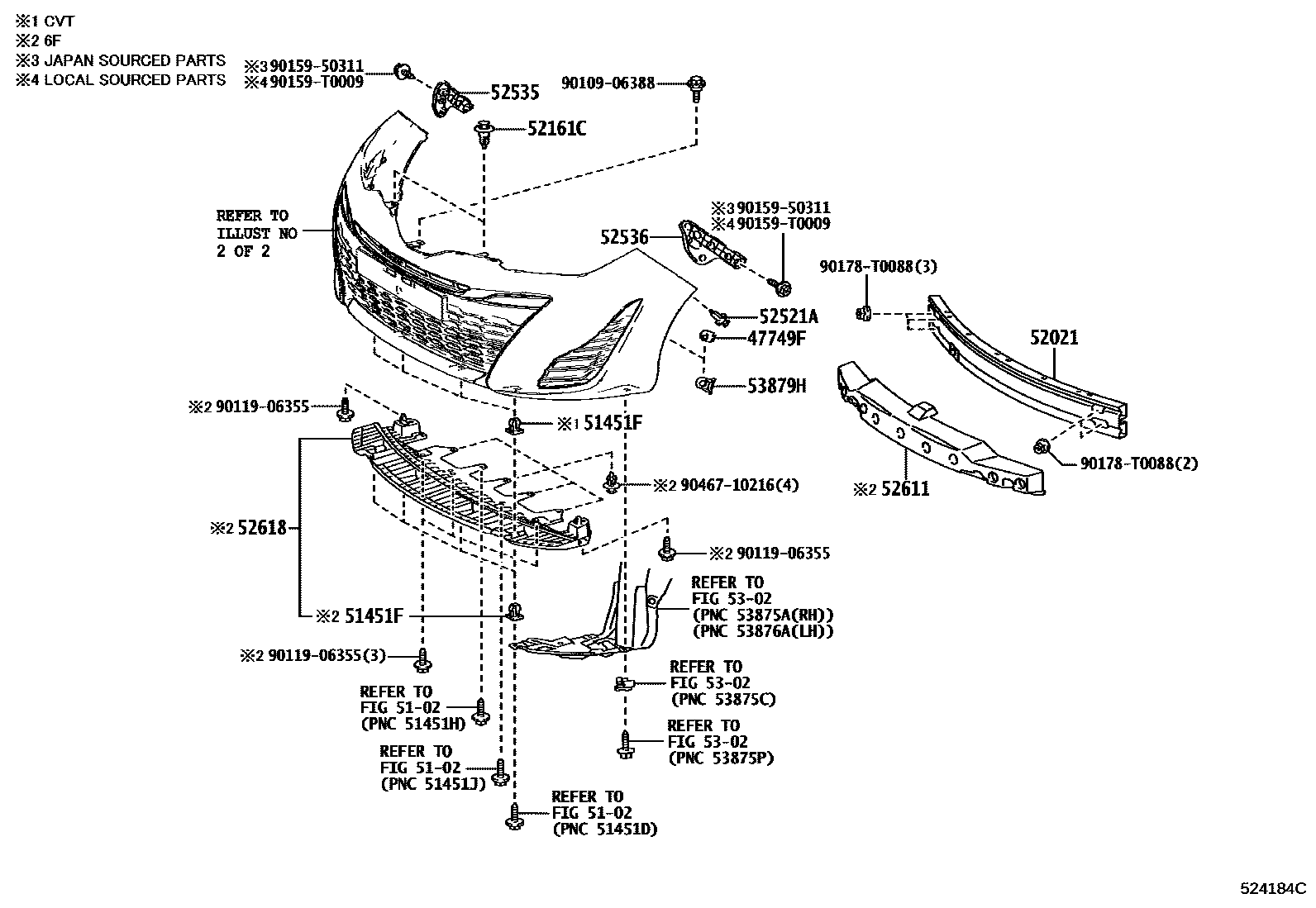

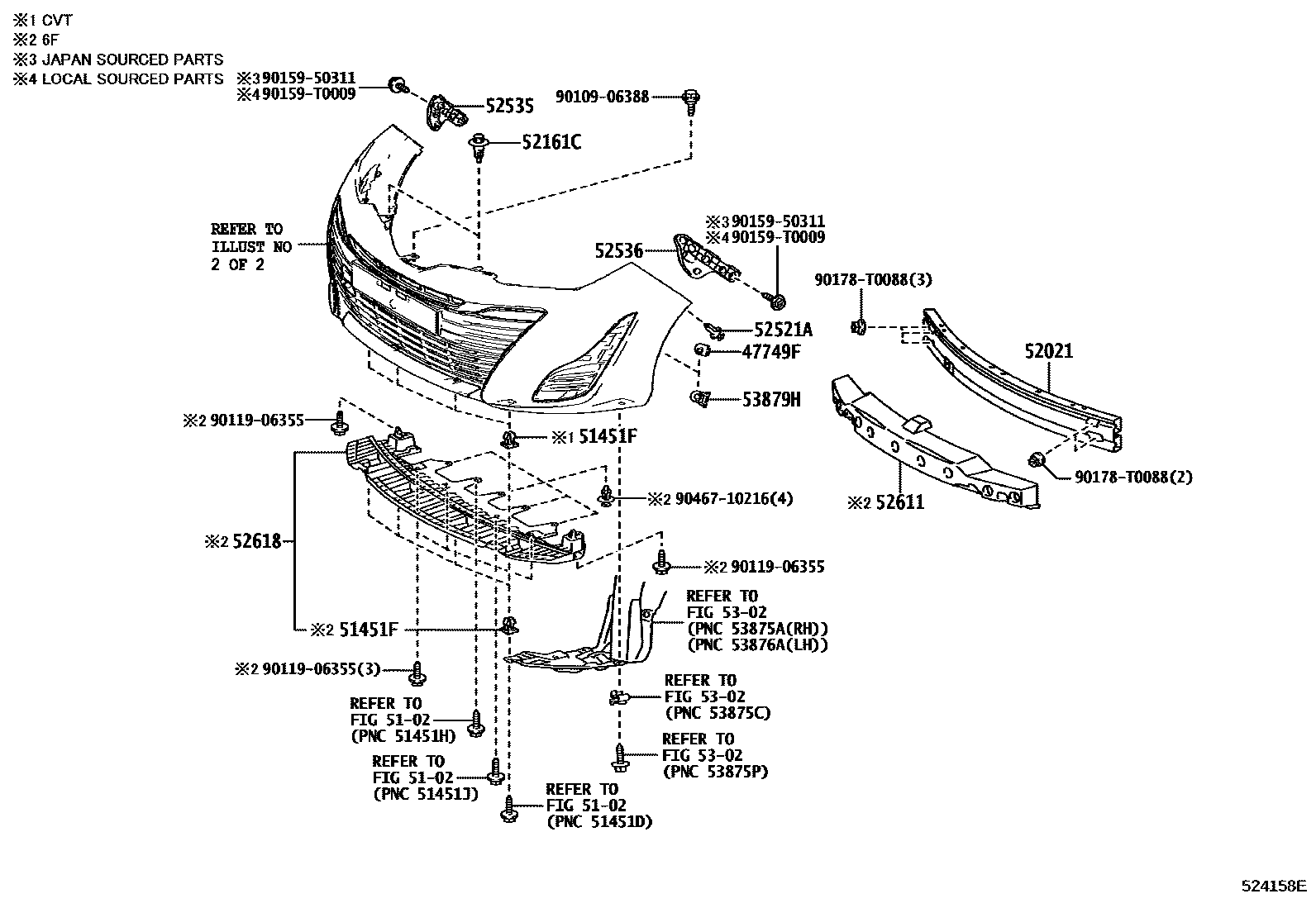

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 6 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-33030 |
| 51451F | Gasket No. 1 | 90189-06237 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D190 · 52021-0D200 |
| 52119A | front bumper cover | 52119-0U935 · 52119-YP960 |
| 52127C | Front bumper hole cover | 52721-0D310 · 52721-0D320 · 52721-0D330 · 52721-0D340 |
| 52127D | Front bumper right hole cover | 52127-0D810 · 52127-0D820 · 52127-0D840 · 52127-0D850 · 52127-0DB90 · 52127-0DC20 · 52127-YP500 · 52127-YP510 |
| 52128B | Front bumper left hole cover | 52128-0D560 · 52128-0D570 · 52128-0D590 · 52128-0D600 · 52128-0D800 · 52128-0DF30 · 52128-YP500 · 52128-YP510 |
| 52161C | front bumper insert | 52161-0K040 · 52161-16010 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52535 | Front bumper right side fixing bracket | 52535-0D270 |
| 52536 | Front bumper left fixed bracket | 52536-0D270 |
| 52611 | front bumper energy absorber | 52611-0D130 · 52611-0D200 |
| 52618 | Front bumper lower shock absorber | 52618-0D140 |
| 53112E | No. 1 radiator lower grille | 53112-0D680 · 53112-0D690 · 53112-0D700 · 53112-0D710 · 53112-0DA80 · 53112-YP510 · 53112-YP520 |
| 53113E | No. 2 radiator lower grille | 53113-0D090 |
| 53127D | Lower right radiator grille | 53127-YP140 · 53127-YP150 |
| 53128E | Lower left radiator grille | 53128-YP140 · 53128-YP150 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 81483J | Right daytime running light cover | 81483-0D050 · 81483-0D140 · 81483-0D170 · 81483-YP010 |
| 81484F | Left daytime running light cover | 81484-0D030 · 81484-0D120 · 81484-0D150 · 81484-YP010 |
