Toyota YARIS 后鼓式制动器分泵和底板 — Figure 4706

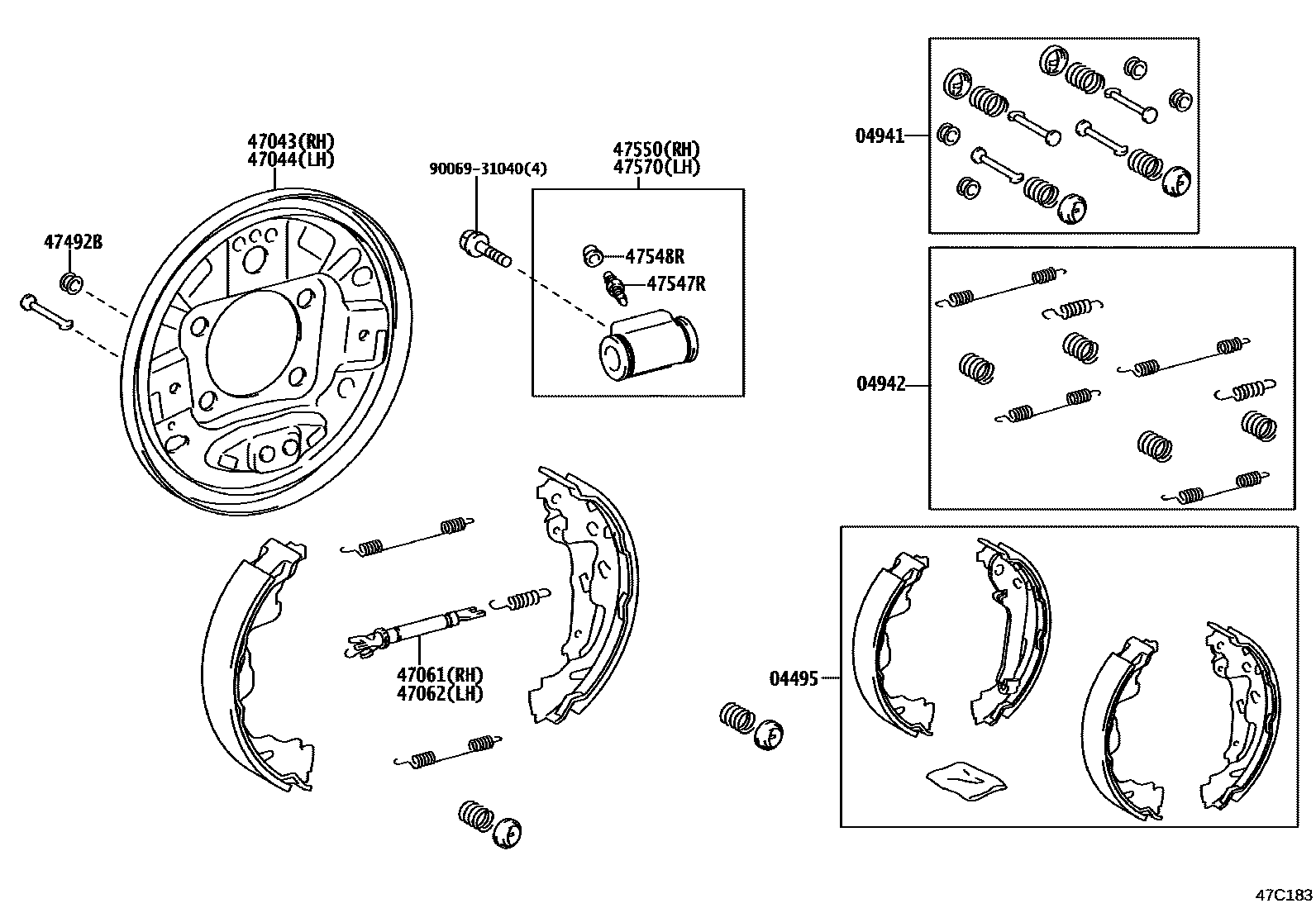

Toyota YARIS EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04495 | Rear brake shoe assembly | 04495-0D140 |
| 04941 | Rear brake shoe limit spring assembly | 04941-0D090 |
| 04942 | Rear brake spring assembly | 04942-0D100 |
| 47043 | Right rear brake base plate sub-assembly | 47043-0D220 |
| 47044 | Left rear brake base plate sub-assembly | 47044-0D220 |
| 47061 | Right parking brake shoe push rod assembly | 47061-0D220 |
| 47062 | Left parking brake shoe push rod assembly | 47062-0D220 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-0D090 |
| 47547R | Bleed plug (for rear drum brake) | 90069-39017 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-0D070 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-0D070 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-0D070 |
