Toyota YARIS 制动助力器和真空管 — Figure 4703

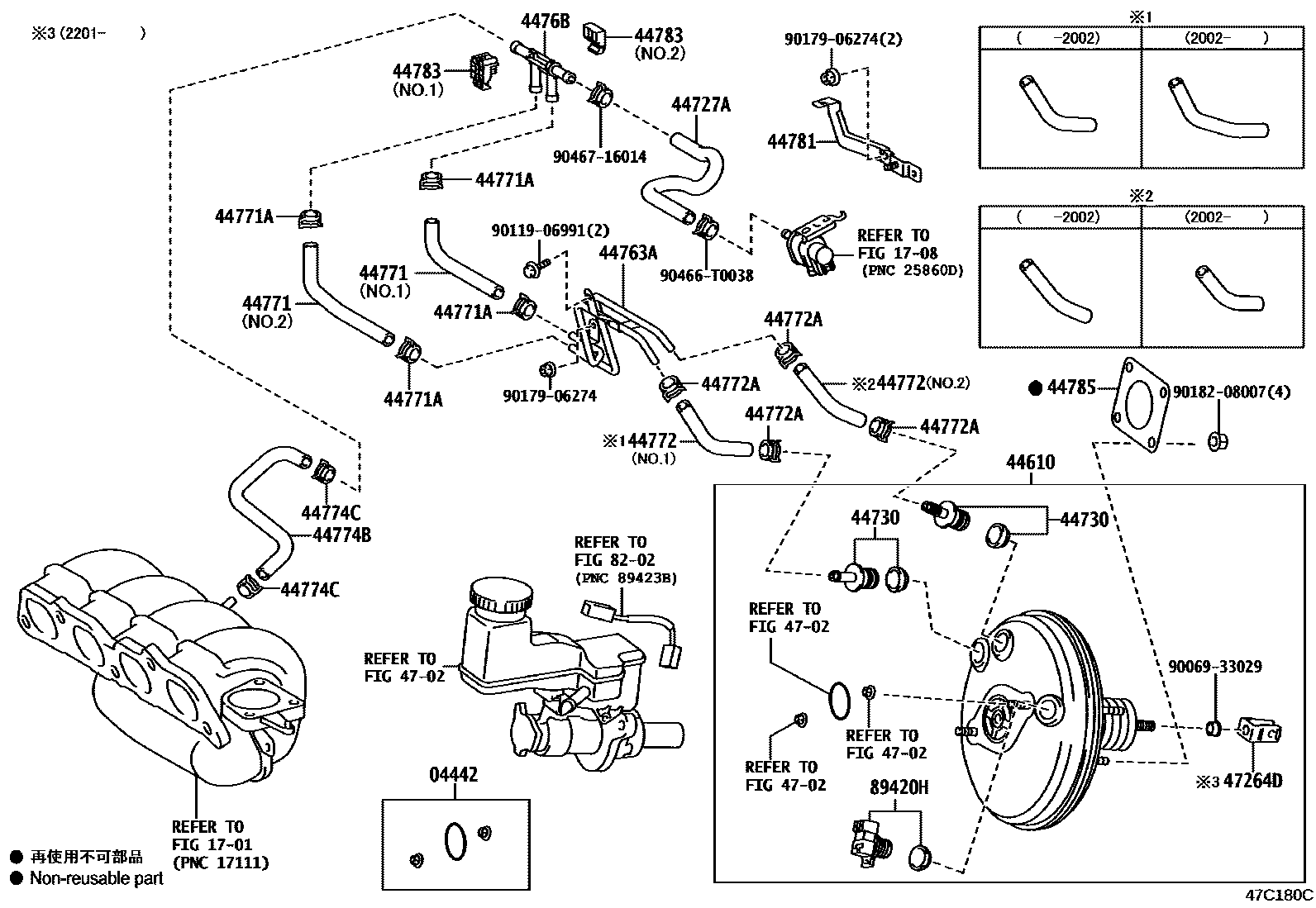

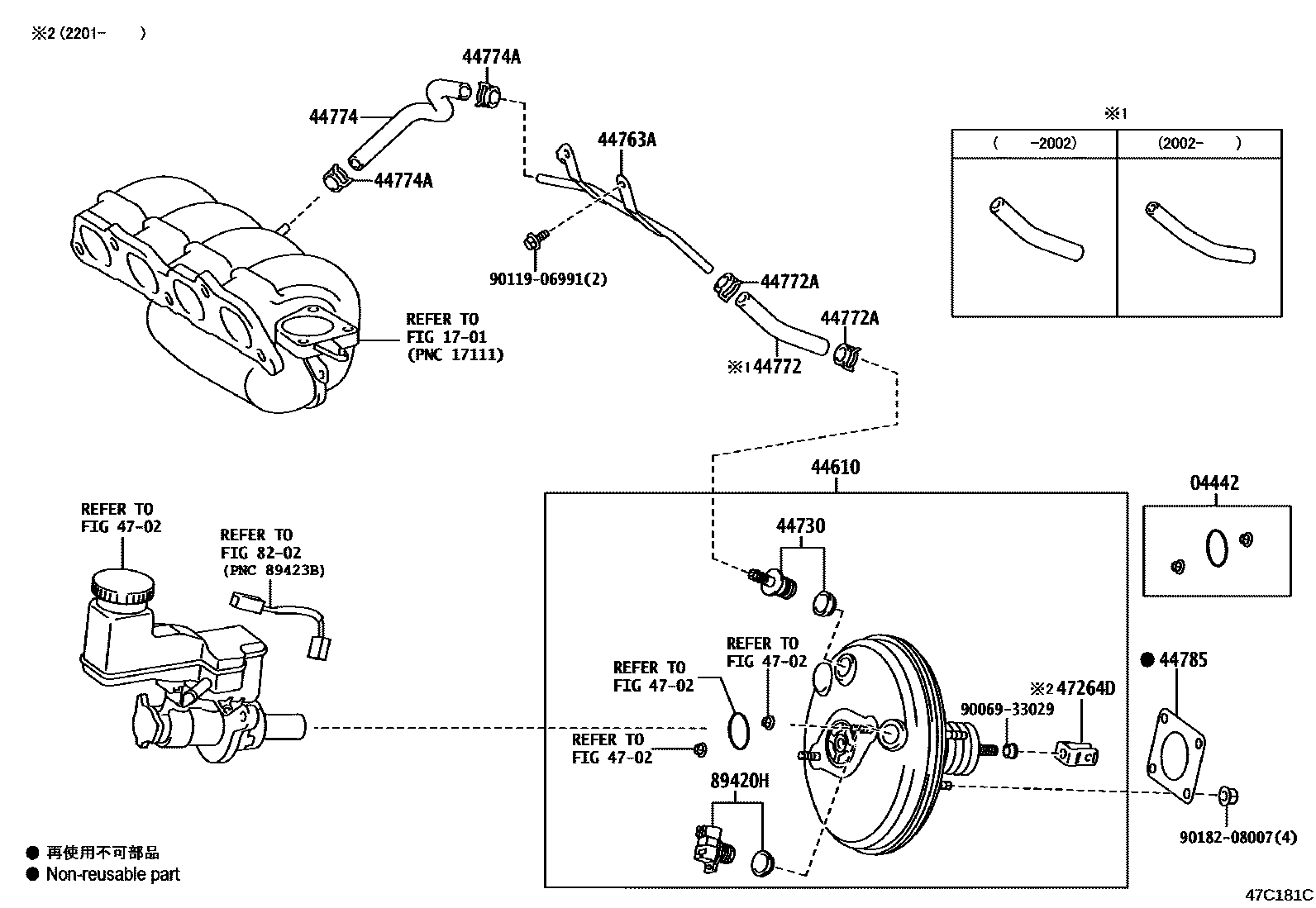

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04442 | Brake booster mounting kit | 04442-0D030 |
| 44610 | brake booster assembly | 44610-09F50 · 44610-09F60 · 44610-09H30 · 44610-09H40 · 44610-09J40 · 44610-09J50 |
| 44727A | Air hose No. 2 | 17342-0Y090 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-09080 · 44730-F9030 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-0D350 · 44763-0D360 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44771 | Vacuum tube connector hose | 44771-0D260 · 44771-0D270 |
| 44771A | Clip (for vacuum tube connector hose) | 90467-16014 |
| 44772 | Hoses (check valve to connector tube) | 44772-0D360 · 44772-0D361 · 44772-0D370 · 44772-0D371 · 44772-0D380 · 44772-0D381 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-0D170 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44774B | Hoses (joints to connector tubes) | 44774-0D160 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44781 | hose holder | 44781-0D190 |
| 44783 | Vacuum hose clamp | 44783-0D020 · 44783-0D030 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-02090 |
| 89420H | Vacuum sensor assembly | 89421-09030 · 89421-09060 · 89421-52020 |
