Toyota YARIS 制动总泵 — Figure 4702

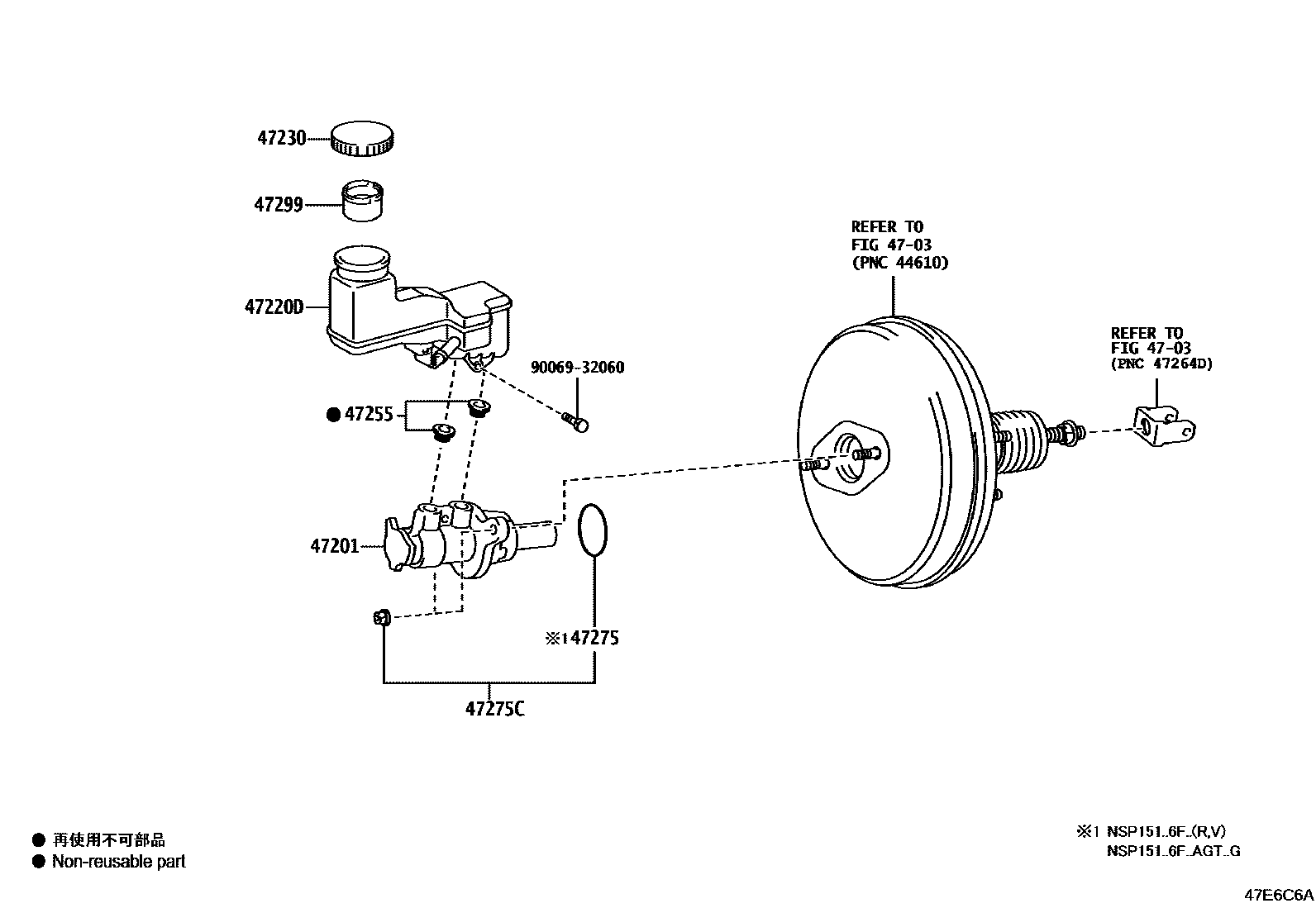

Toyota YARIS EPC diagram 4702, 制动总泵, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-09870 · 47201-09880 · 47201-09B50 · 47201-09B60 |
| 47210U | Direct sales (for brake master cylinder) | 90015-AE401 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-09360 · 47220-09370 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D160 |
| 47255 | Master pump reservoir seal | 47255-09040 · 47255-09050 |
| 47275 | brake master cylinder gasket | 47275-0H010 |
| 47275C | JEU REVISION, MAITRE CYLINDRE | 47275-09010 |
| 47299 | Brake master cylinder reservoir filter | 47299-02160 |
