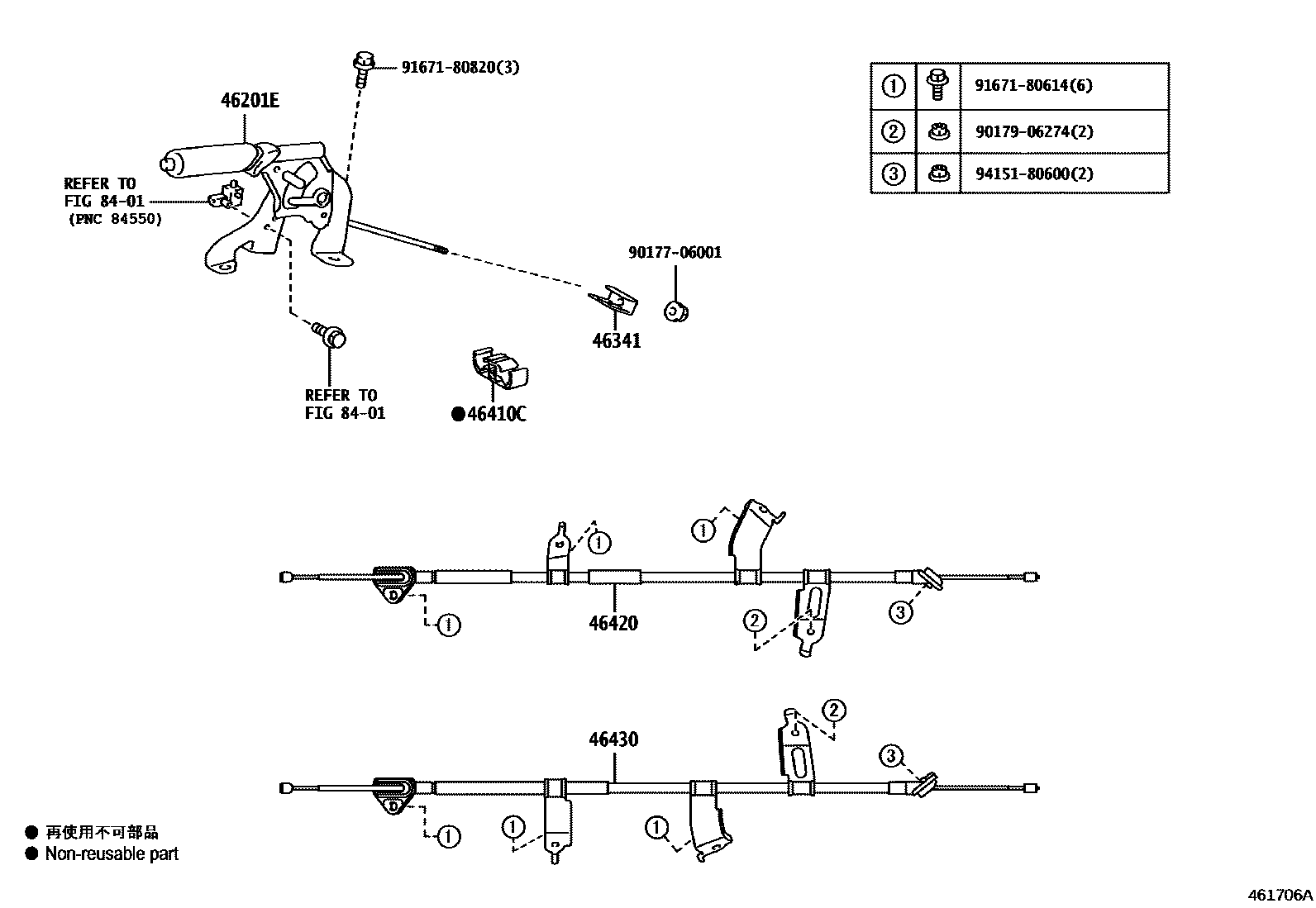

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46341 | Parking brake balancer | 46341-0D050 |
| 46410C | Clip (for front parking brake cable) | 46411-0D020 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0D380 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0D350 |
