Toyota YARIS Steering Wheel — Figure 4504

Toyota YARIS EPC diagram 4504, Steering Wheel, with 2 images and 2 PNC and OE references.

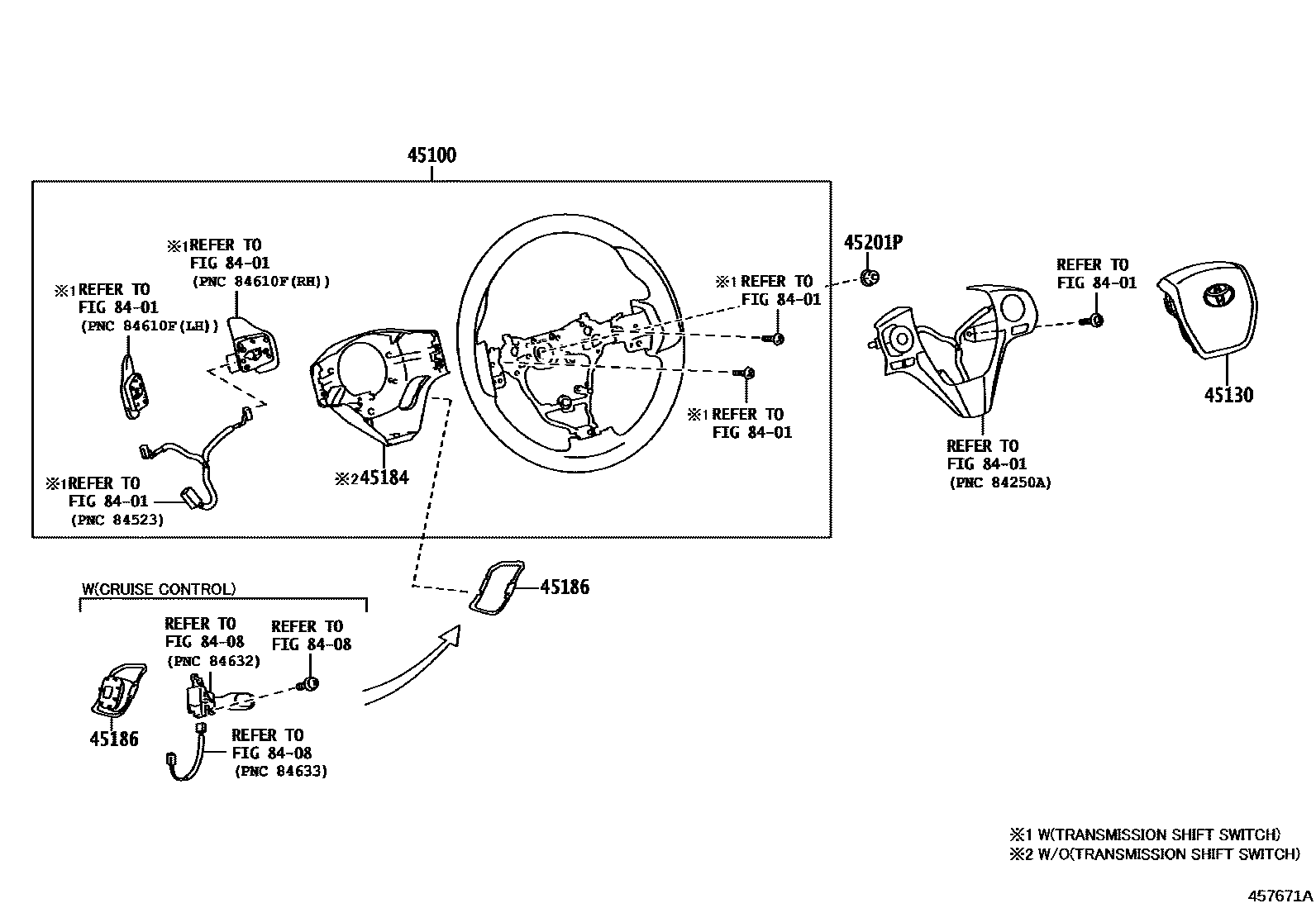

Toyota YARIS Steering Wheel EPC diagram — 457671A
Steering Wheel — 457671A (201911 – 202102)

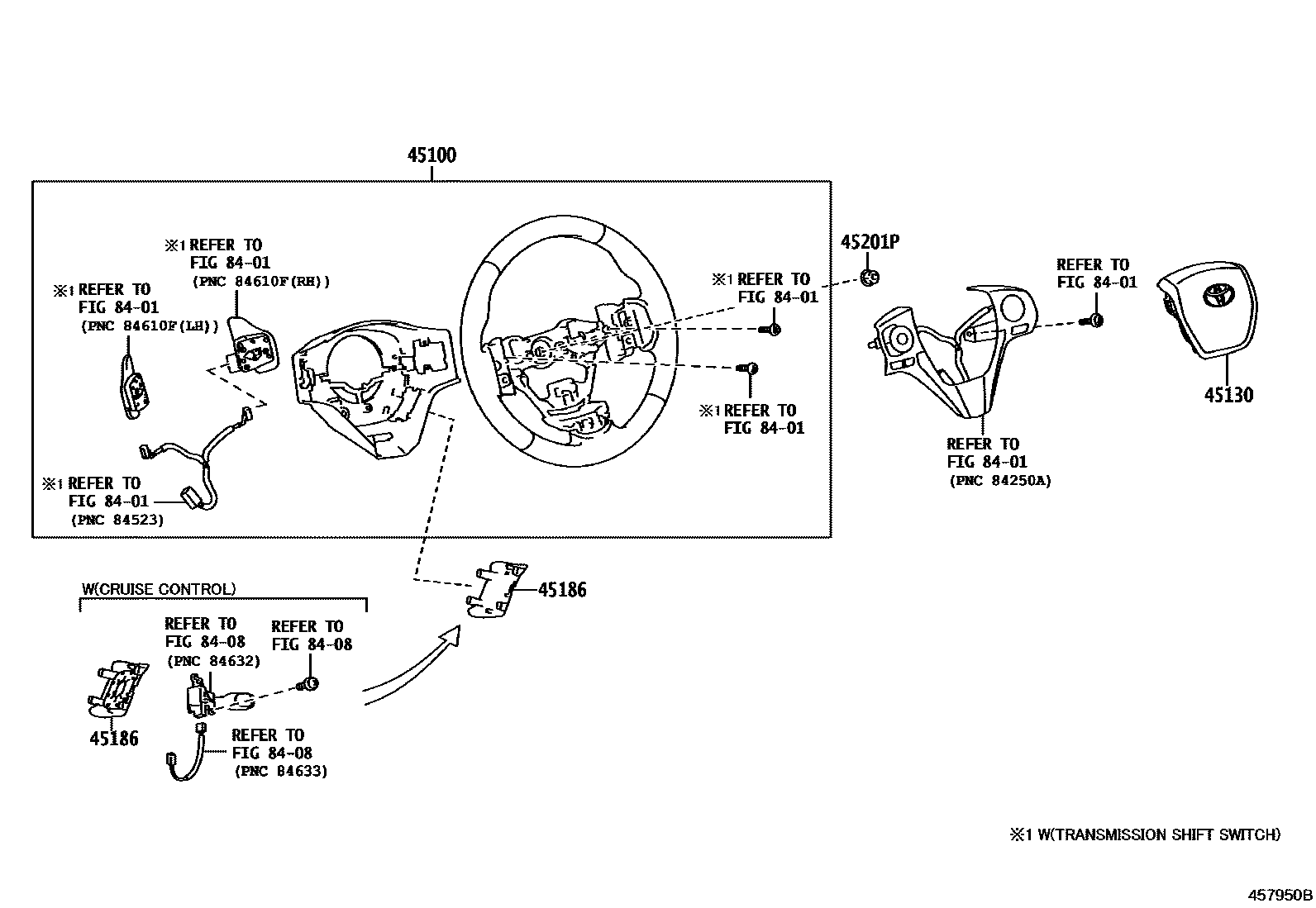

Toyota YARIS Steering Wheel EPC diagram — 457950B
Steering Wheel — 457950B (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
45186No. 2 steering wheel lower cover45186-02270
45201PSteering wheel fixing nut90179-12071
