Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 30 PNC and OE references.

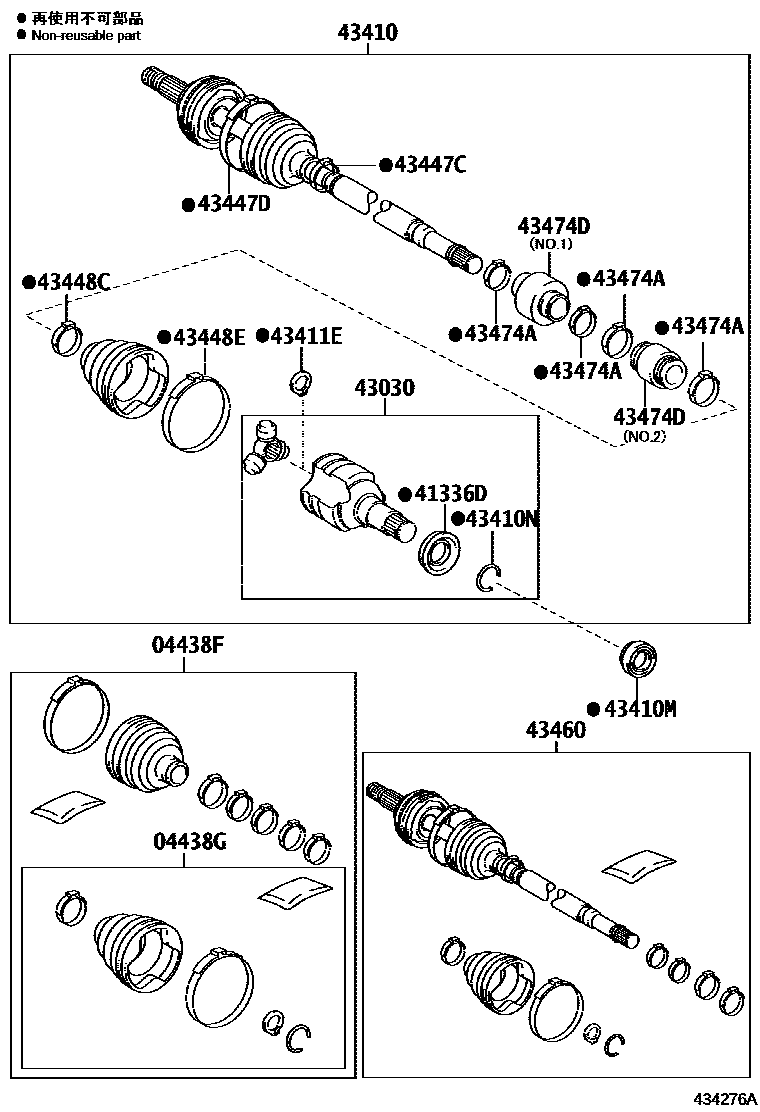

Toyota YARIS Front Drive Shaft EPC diagram — 434276A
Front Drive Shaft — 434276A (201911 – 999999)

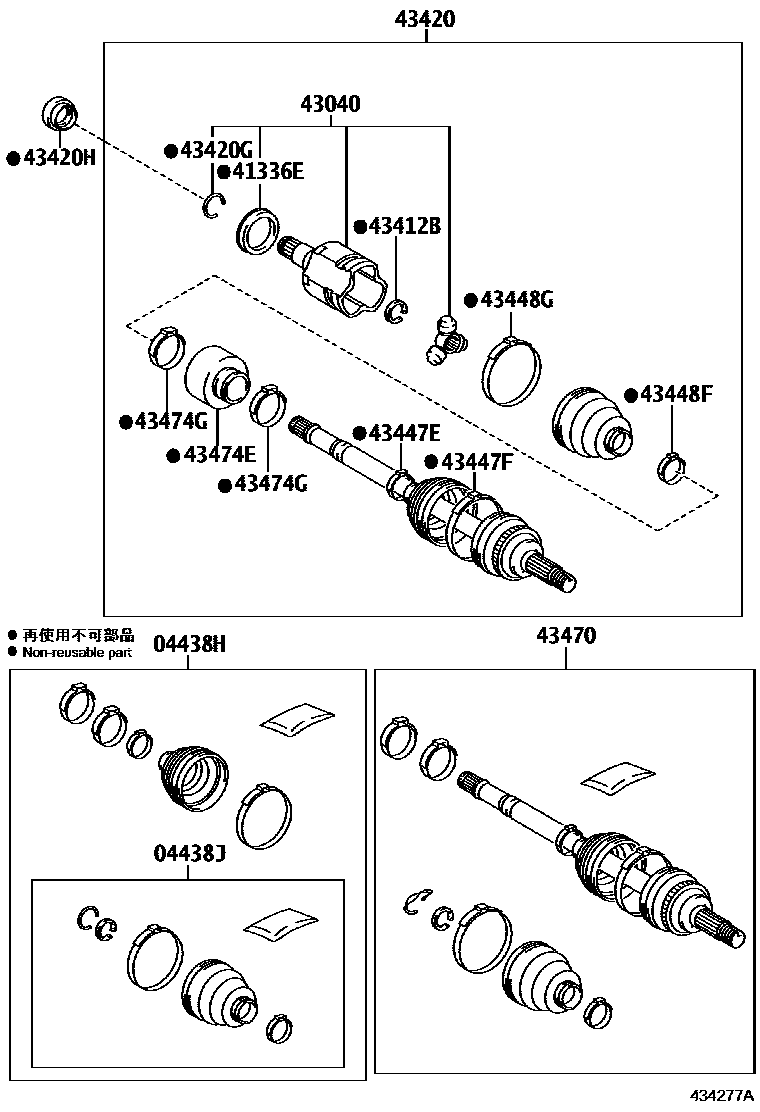

Toyota YARIS Front Drive Shaft EPC diagram — 434277A
Front Drive Shaft — 434277A (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-0D500 · 04427-0D510
04438GRight front drive shaft inner universal joint dust boot assembly04437-0D330 · 04437-0D340
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-0D480 · 04428-0D490
04438JLeft front drive shaft inner universal joint dust boot assembly04437-0D330 · 04437-0D340
41336DRight front driveshaft dust cover41336-0D140 · 41336-0D150
41336ELeft front driveshaft dust cover41336-0D140 · 41336-0D150
43030Right front drive shaft inner universal joint assembly43040-0D110 · 43040-0D120
43040Left front drive shaft inner universal joint assembly43040-0D110 · 43040-0D120
43410Right front driveshaft assembly43410-0D750 · 43410-0D760
43410MFront drive shaft right oil seal90311-34050 · 90311-35065
43410NHole snap ring (for right front driveshaft)43425-02300 · 43425-02350
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-0D510
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-0D510
43420Left front drive shaft assembly43420-0D590 · 43420-0D710
43420GHole snap ring (for left front driveshaft)43425-02300 · 43425-02350
43420HFront drive shaft left oil seal90311-34051 · 90311-34057 · 90311-35075
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-0D870
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-0D860
43447EClamp (for left front axle outer universal joint dust cover)42345-0D870
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-0D860
43448CClamp (for the universal joint dust cover inside the right front axle)42345-0DC90
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-0DC70
43448FClamp (for left front axle inner universal joint dust cover)42345-0DC90
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-0DC70
43460Right front outer drive universal joint shaft assembly43460-09Z70 · 43460-09Z80
43470Left front outer drive universal joint shaft assembly43470-8Z301 · 43470-8Z302
43474AClamp (for securing driveshaft damper)42345-0DC80
43474DRight front driveshaft shock absorber43474-0D430 · 43474-0D470 · 43474-0D530
43474ELeft front driveshaft shock absorber43474-0D440 · 43474-0D490
43474GClamp (for left front driveshaft shock absorber)42345-0DC80
