Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

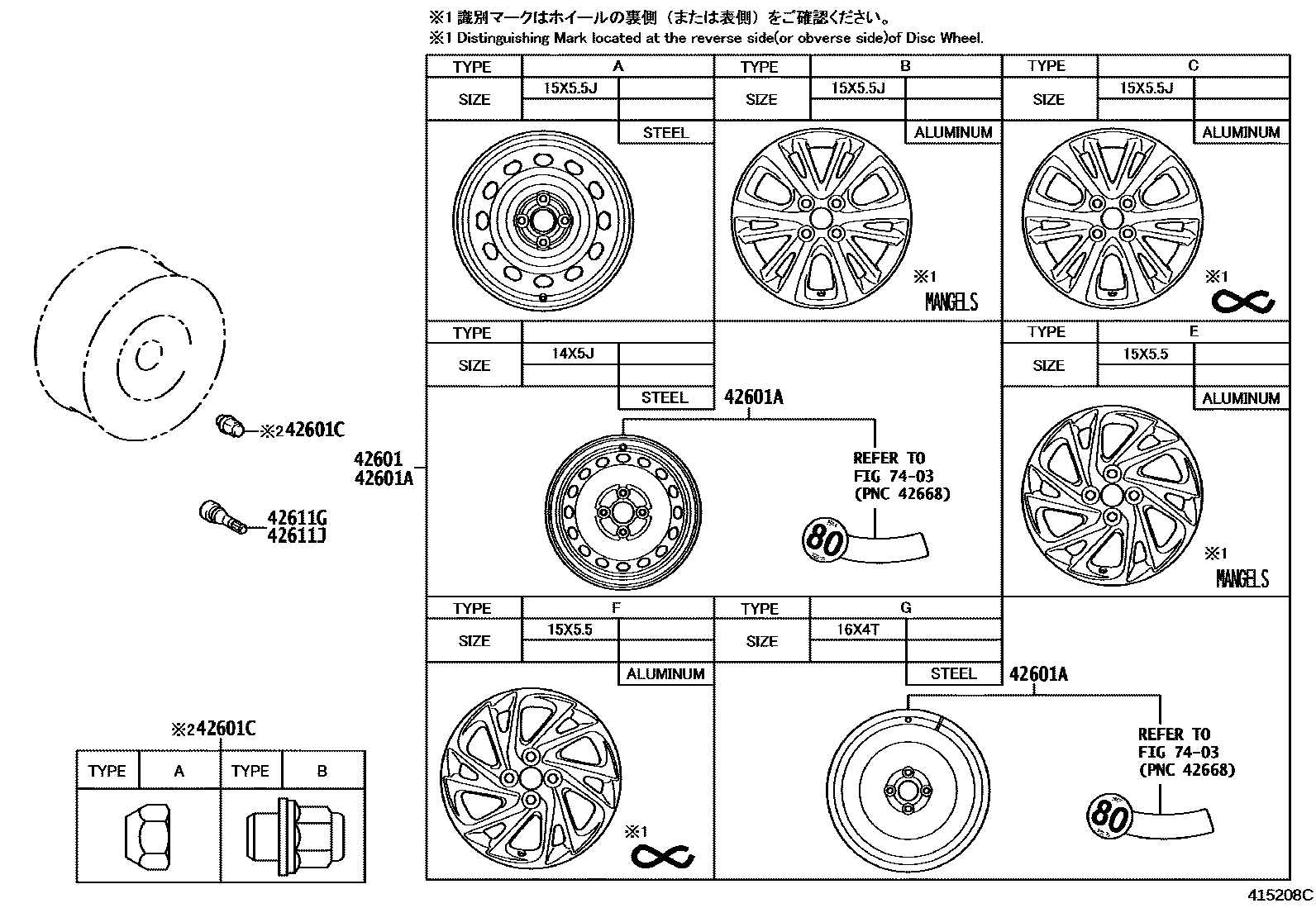

| 42601 | spoke wheel | 42611-0DG20 · 42611-0DL50 · 42611-0DL60 · 42611-0DM70 · 42611-0DM80 |
| 42601A | Spoke wheel (for spare tire) | 42611-0DB81 · 42611-0DG20 · 4261B-0D010 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |

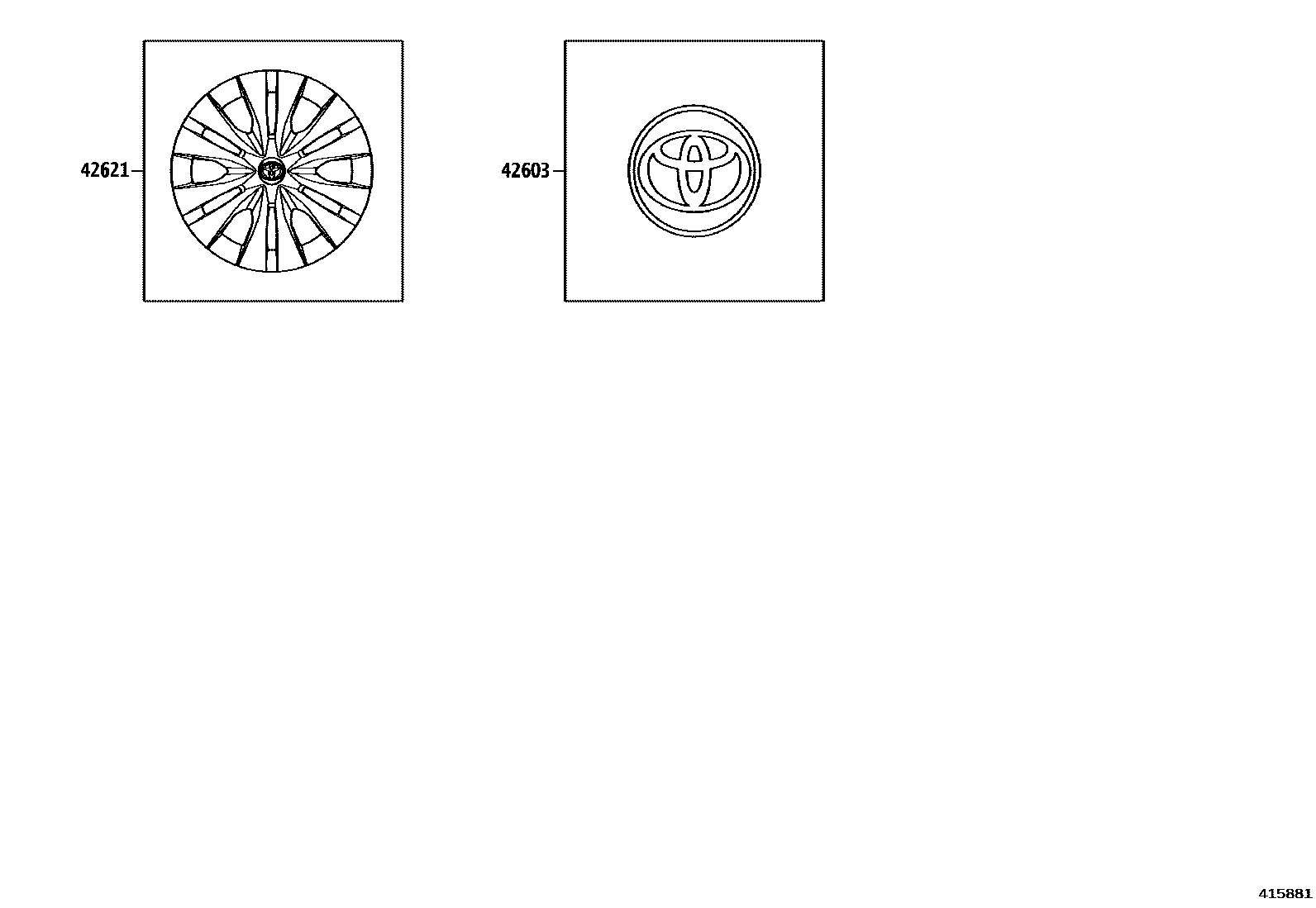

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0D230 |
| 42611G | Valve (for tubeless tires) | 90942-05009 · 90942-C5004 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 · 90942-C5004 |
| 42621 | wheel cover | 42602-0D370 |
