Toyota YARIS 传动桥总成(CVT) — Figure 3401

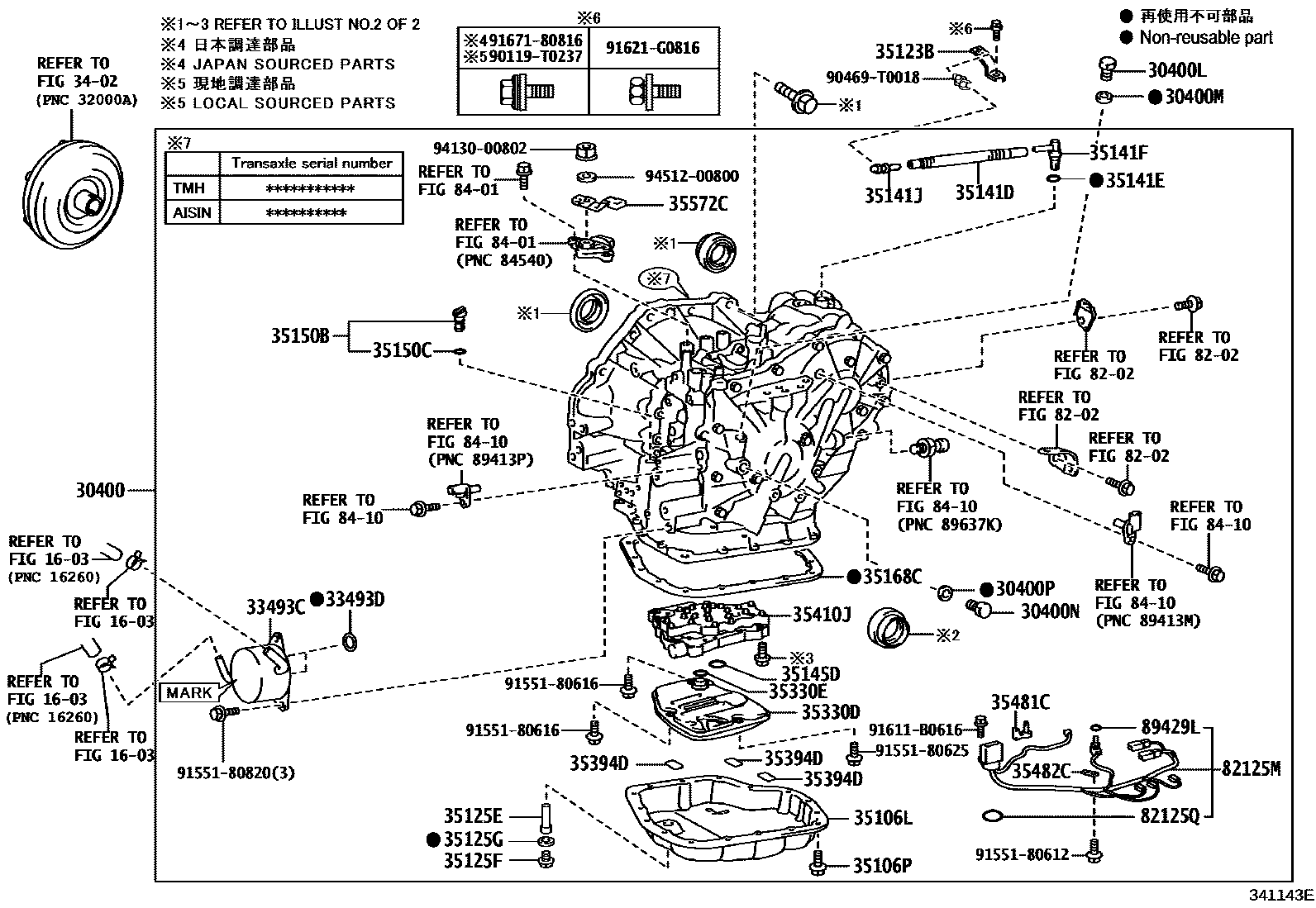

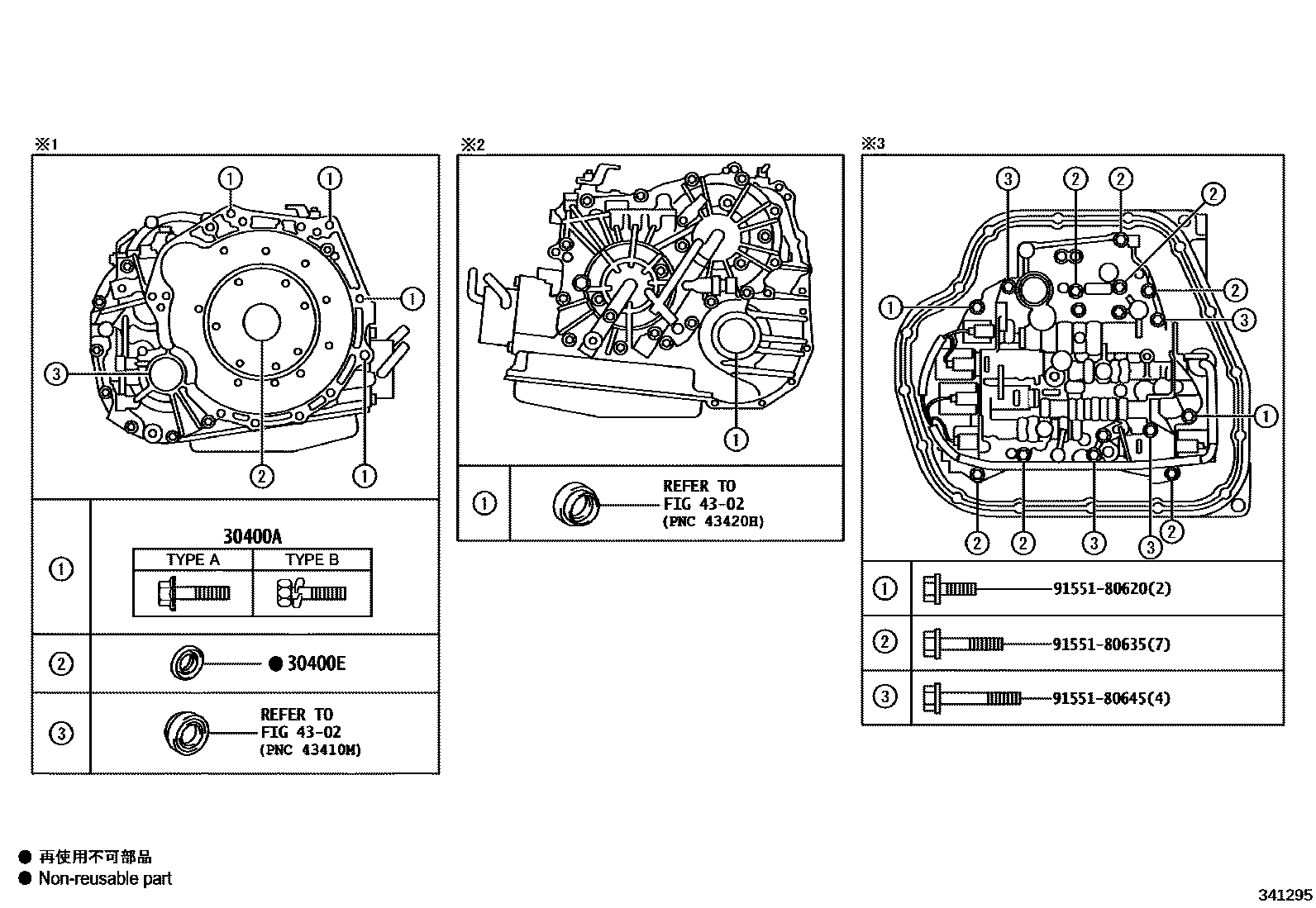

Toyota YARIS EPC diagram 3401, 传动桥总成(CVT), with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30400 | Continuously variable transmission axle assembly | 30400-52450 · 30400-52490 · 30400-52491 · 30400-52550 · 30400-52630 |
| 30400A | Bolts (for securing transaxle and engine) | 90105-T0173 · 90119-T0310 · 91552-81245 · 91619-61245 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-45027 |
| 30400L | Oil filling plug (CVT) | 90341-12025 |
| 30400M | Oil filling plug gasket (CVT) | 90430-12221 |
| 30400N | Oil filling plug (CVT) | 90341-18077 |
| 30400P | Oil filling plug gasket (CVT) | 90430-18008 |
| 33493C | Transmission oil cooler | 33493-20100 · 33493-52030 |
| 33493D | O-ring (for transmission oil cooler) | 90301-20012 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-12200 · 35106-12210 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35123B | Transmission breather skirt | 35123-0D100 |
| 35125E | Overflow pipe (CVT) | 35125-12440 · 35125-12480 |
| 35125F | Overflow plug (CVT) | 90341-12034 |
| 35125G | Overflow plug gasket (CVT) | 90430-12008 |
| 35141D | Hoses (for breather plug) | 35121-52020 |
| 35141E | O-ring (for breather plug) | 90301-06021 |
| 35141F | No. 1 vent plug (CVT) | 90930-03191 |
| 35141J | No. 2 vent plug (CVT) | 90930-03149 |
| 35145D | Transmission axle housing gasket | 35145-33010 |
| 35150B | gearbox plug assembly | 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-12091 |
| 35330D | Oil filter assembly | 35330-12050 |
| 35330E | O-ring (for oil filter) | 90301-22019 |
| 35394D | Oil filter magnet (CVT) | 35394-30011 · 35394-48010 |
| 35410J | Transmission valve body assembly | 35410-12862 · 35410-12871 |
| 35481C | Valve body wiring harness clip | 35481-12020 · 35481-12030 |
| 35482C | temperature sensor clip | 35482-73010 |
| 35572C | transmission control lever | 35572-12160 · 35572-12170 |
| 82125M | Transmission wiring harness | 82125-12642 |
| 82125Q | O-ring (for transmission wiring harness) | 90301-21009 |
| 89429L | O-ring (for oil temperature sensor) | 90301-06004 |
