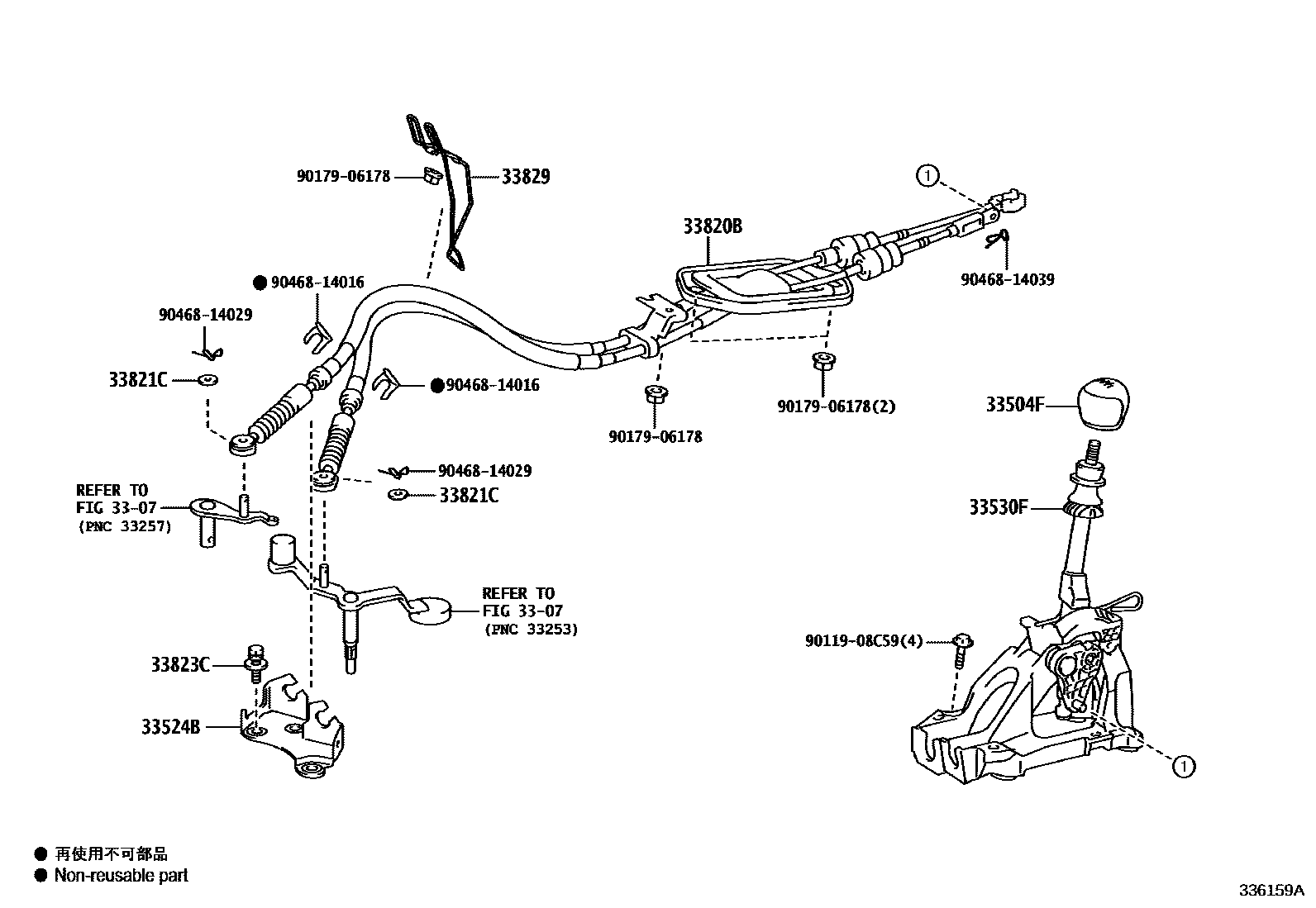

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524B | Control cable bracket | 33524-0D180 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0D260 |
| 33550 | Transmission floor shift assembly | 33550-0D620 |
| 33554C | Shift lock release button cover | 33554-0D260 · 33554-0D420 |
| 33560 | Shift lock control unit assembly | 33560-0D300 |
| 33563 | Shift lock release button | 33563-0D180 |
| 33820B | Transmission control cable assembly | 33820-0D750 · 33820-0D760 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90179-08040 |
| 33823 | No. 1 transmission control cable bracket | 33823-0D240 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 91671-80820 |
| 33829 | Transmission control cable bracket | 33829-0D160 |
| 33866 | Shift lock release spring | 33866-33010 |
| 35921 | control position indicator board | 35921-0D200 |
| 35952 | Position indicator lampshade | 35952-0D070 |
| 35970F | Position indicator light housing assembly | 35970-0D470 · 35970-0D471 · 35970-0D660 |
| 35971A | Position indicator light upper shell | 35971-0D650 |
| 35971E | position indicator housing | 35971-0D660 |
| 35974 | Position indicator light lower shell | 35974-0D140 |
| 35975 | Slide cover (for position indicator light) | 35975-0D160 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-0D180 |
