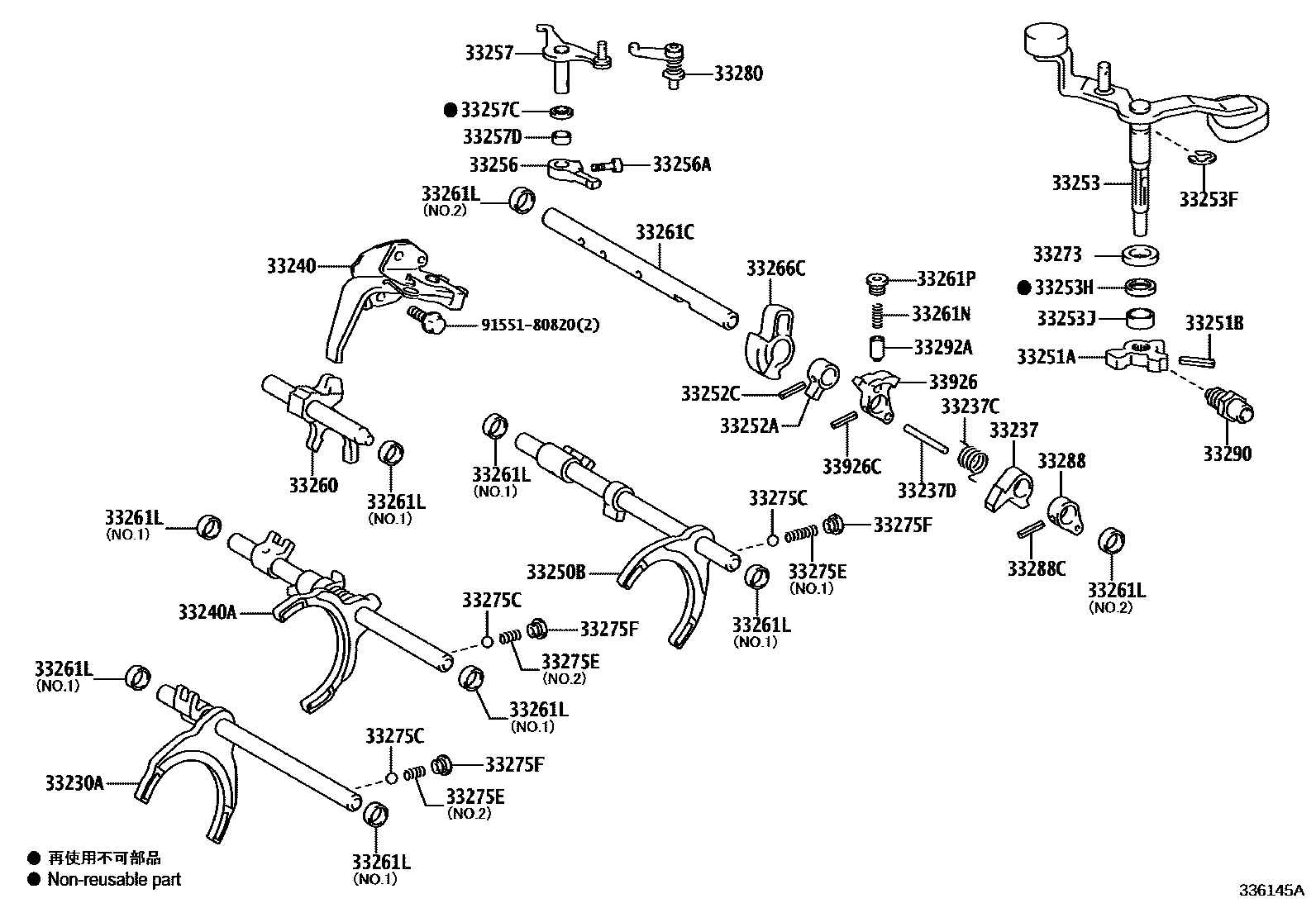

Toyota YARIS 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota YARIS EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 1 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33230A | No. 1 shift fork shaft assembly | 33230-0D010 |
| 33237 | Separate guide block | 33237-0D020 |
| 33237C | Torsion spring (for separating guide block) | 90508-27001 |
| 33237D | Direct sales (for detaching guide blocks) | 90250-06042 |
| 33240 | Reverse shift arm bracket assembly | 33240-20042 |
| 33240A | No. 2 shift fork shaft assembly | 33240-0D060 |
| 33250B | No. 3 shift fork shaft assembly | 33250-0D180 |
| 33251A | Internal shift lever No. 1 | 33251-0D080 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05011 |
| 33252A | Internal shift lever No. 2 | 33252-0D050 |
| 33252C | Slotted spring pin (for inner shift lever No. 2) | 90254-05001 |
| 33253 | No. 1 outer shift lever | 33253-52070 |
| 33253F | E-ring (for outer shift lever) | 90523-15003 |
| 33253H | Oil seal (for outer shift lever) | 90310-18003 |
| 33253J | Bushing (for outer shift lever) | 90384-A0020 |
| 33256 | Internal gear selector | 33256-0D080 |
| 33256A | Fixing bolt (for interior gear selector) | 90110-08041 |
| 33257 | External gear selector | 33257-0D060 |
| 33257C | Oil seal (for external gear lever) | 90310-15005 |
| 33257D | Bimetallic bushing (for external selector lever) | 90384-A0021 |
| 33260 | Reverse shift fork shaft assembly (MTM) | 33260-0D010 |
| 33261C | shift lever shaft | 33261-0D120 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-A0022 · 90384-A0023 |
| 33261N | Compression spring (for shift lever shaft) | 90501-11108 |
| 33261P | Headed straight thread plug (for shift lever shaft) | 90341-16013 |
| 33266C | shift interlock plate | 33266-0D050 |
| 33273 | No. 1 shift lever shaft cover gasket | 90560-18017 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-13088 · 90501-13089 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33280 | Reverse gear positioning pin assembly | 33280-20050 |
| 33288 | Gear selector stop | 33288-0D020 |
| 33288C | Slotted spring pin (for gear selector stop) | 90254-05001 |
| 33290 | No. 1 locking steel ball assembly | 33290-0D040 |
| 33292A | Locking steel ball pin | 33292-20010 |
| 33926 | Front inner shift lever | 33926-0D030 |
| 33926C | Slotted spring pin (for inner shift lever) | 90254-05001 |
