Toyota YARIS 燃油喷射系统 — Figure 2211

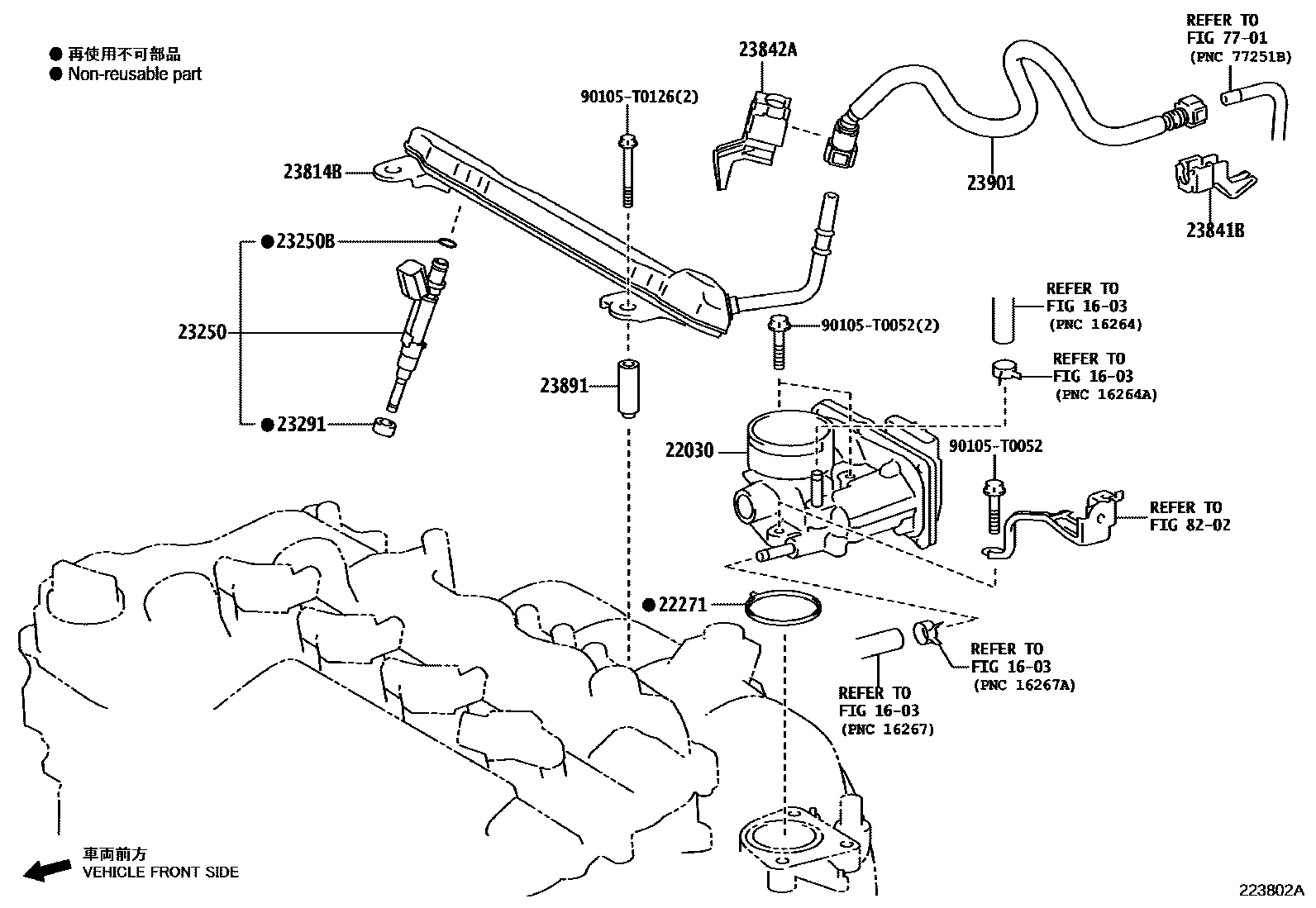

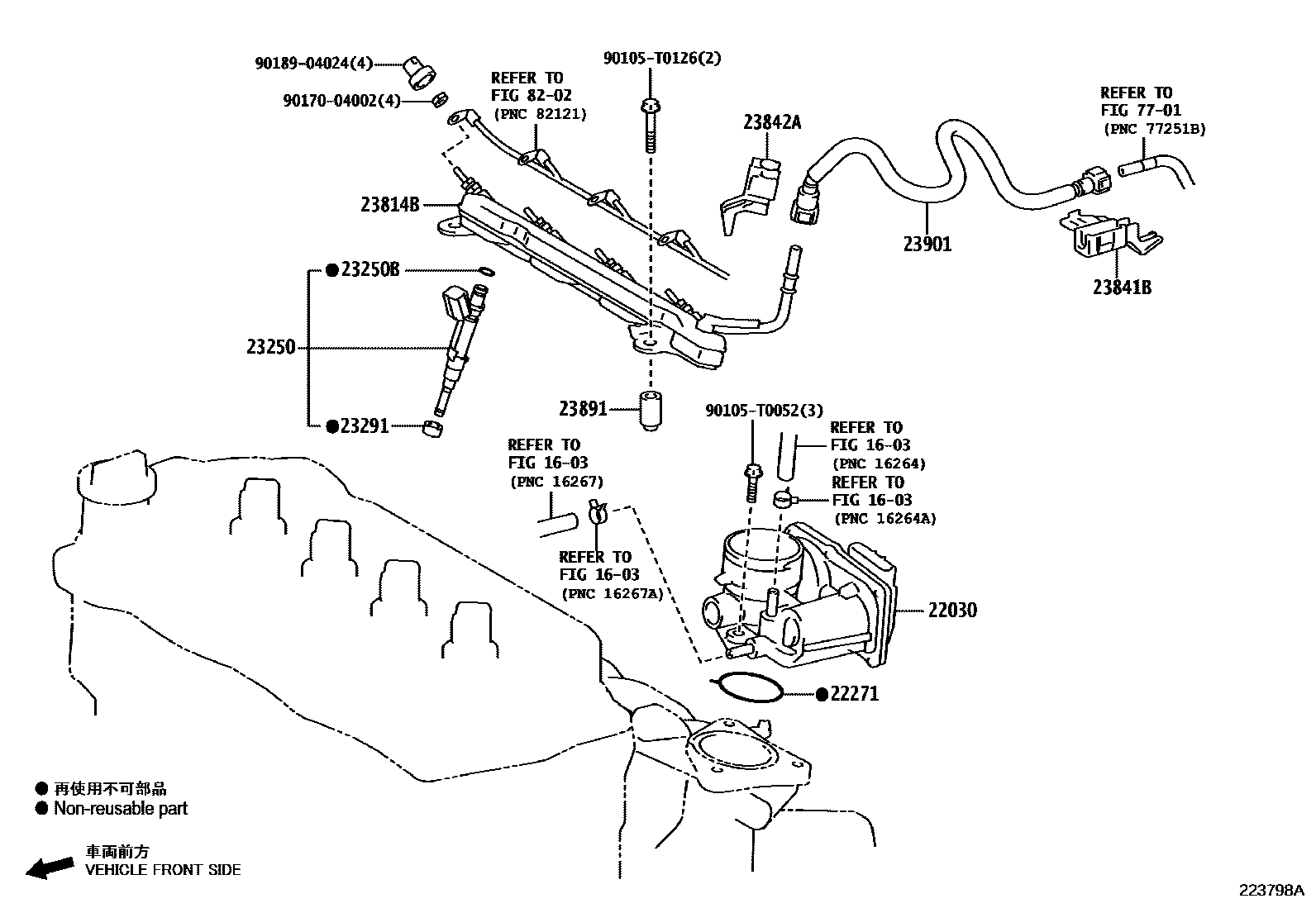

Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-0Y020 |
| 22271 | Throttle body gasket | 22271-0Y030 |
| 23250 | Fuel injector assembly | 23209-49245 · 23209-49265 |
| 23250B | O-ring (for fuel injector) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-0Y020 |
| 23814B | oil pipeline | 23807-0Y010 · 23814-0Y010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-36020 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-36010 |
| 23891 | oil pipe septum | 23891-47040 |
| 23901 | Fuel pipe sub-assembly | 23901-0Y200 |
