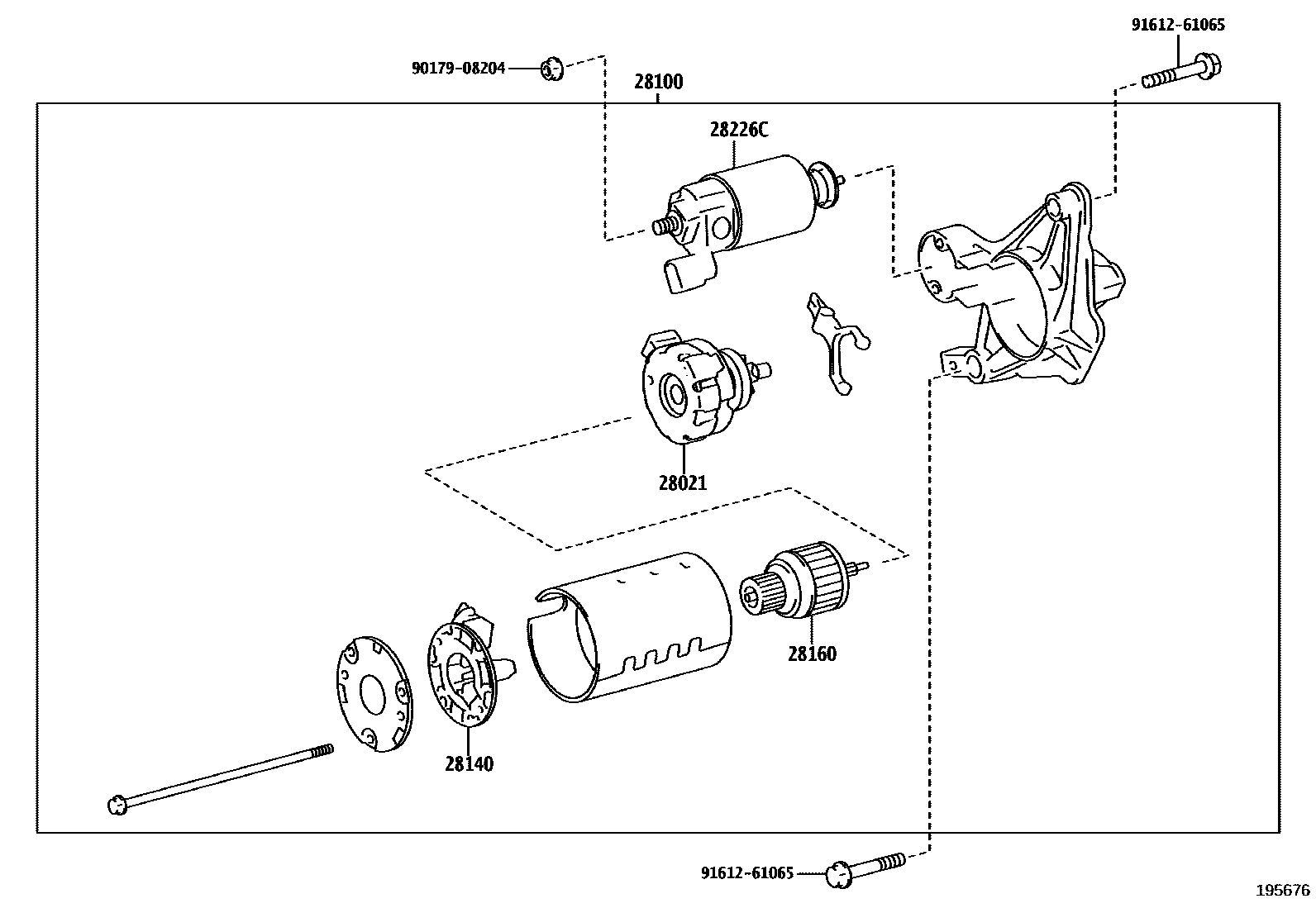

Toyota YARIS 起动机 — Figure 1904
Toyota YARIS EPC diagram 1904, 起动机, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-0Y310 |
| 28100 | Starter assembly | 28100-0Y310 |
| 28140 | Starter brush holder assembly | 28140-0Y210 |
| 28160 | Starter armature assembly | 28160-0Y310 |
| 28226C | No. 2 starter magnetic switch | 28226-0Y310 |
