Toyota YARIS Alternator — Figure 1903

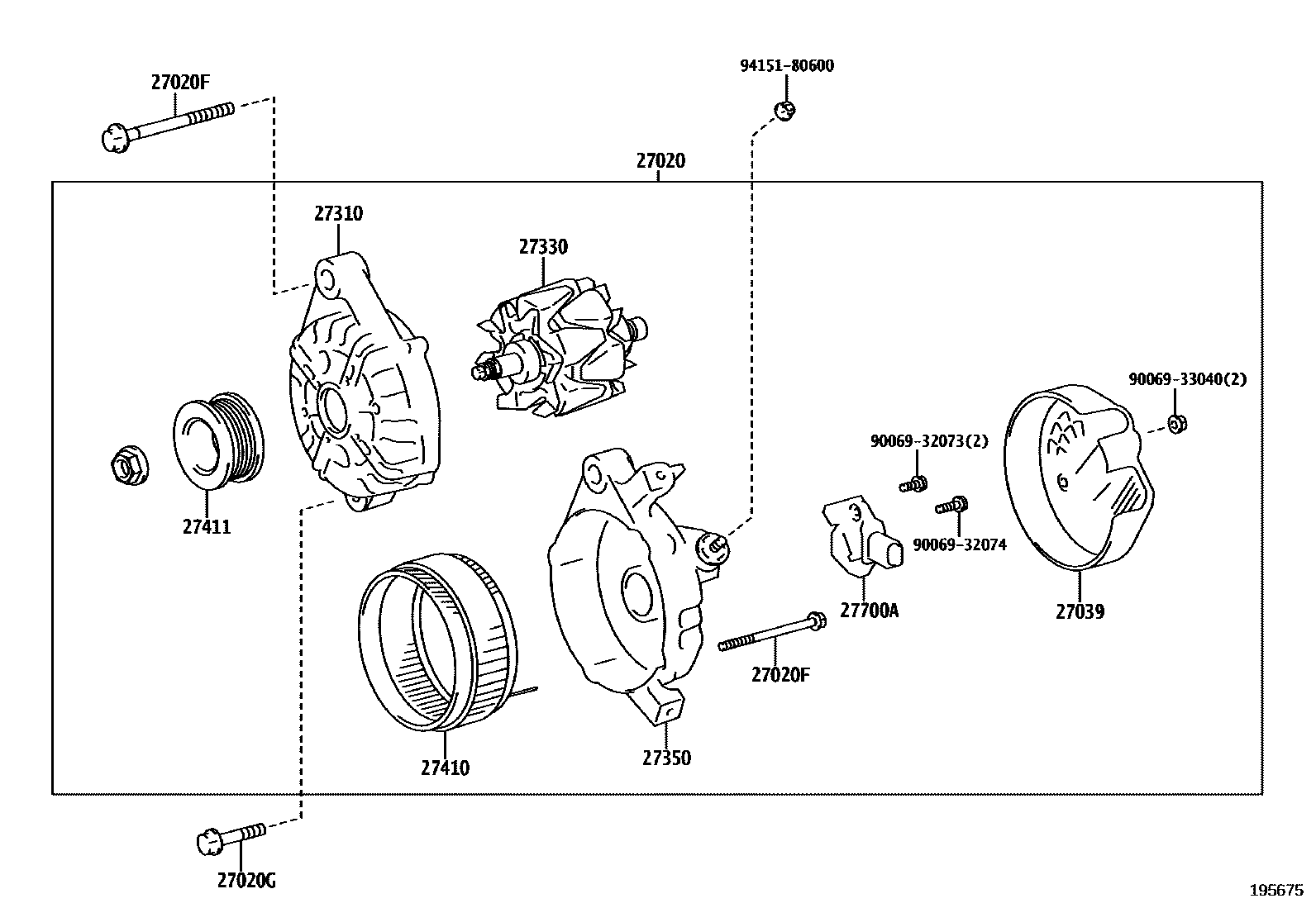

Toyota YARIS EPC diagram 1903, Alternator, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0Y360 |
| 27020F | Bolt No. 1 (for generator) | 91552-81075 |
| 27020G | Bolt No. 2 (for generator) | 91511-K0840 |
| 27039 | Alternator Rear End Cover | 27039-0Y260 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0Y260 |
| 27330 | Alternator Rotor Assembly | 27330-0Y260 |
| 27350 | Rectifier end frame assembly | 27350-0Y260 |
| 27410 | Generator stator assembly | 27410-0Y260 |
| 27411 | Alternator Pulley | 27411-0Y260 |
| 27700A | Generator voltage regulator assembly | 27700-0Y180 |
