Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 2 images and 5 PNC and OE references.

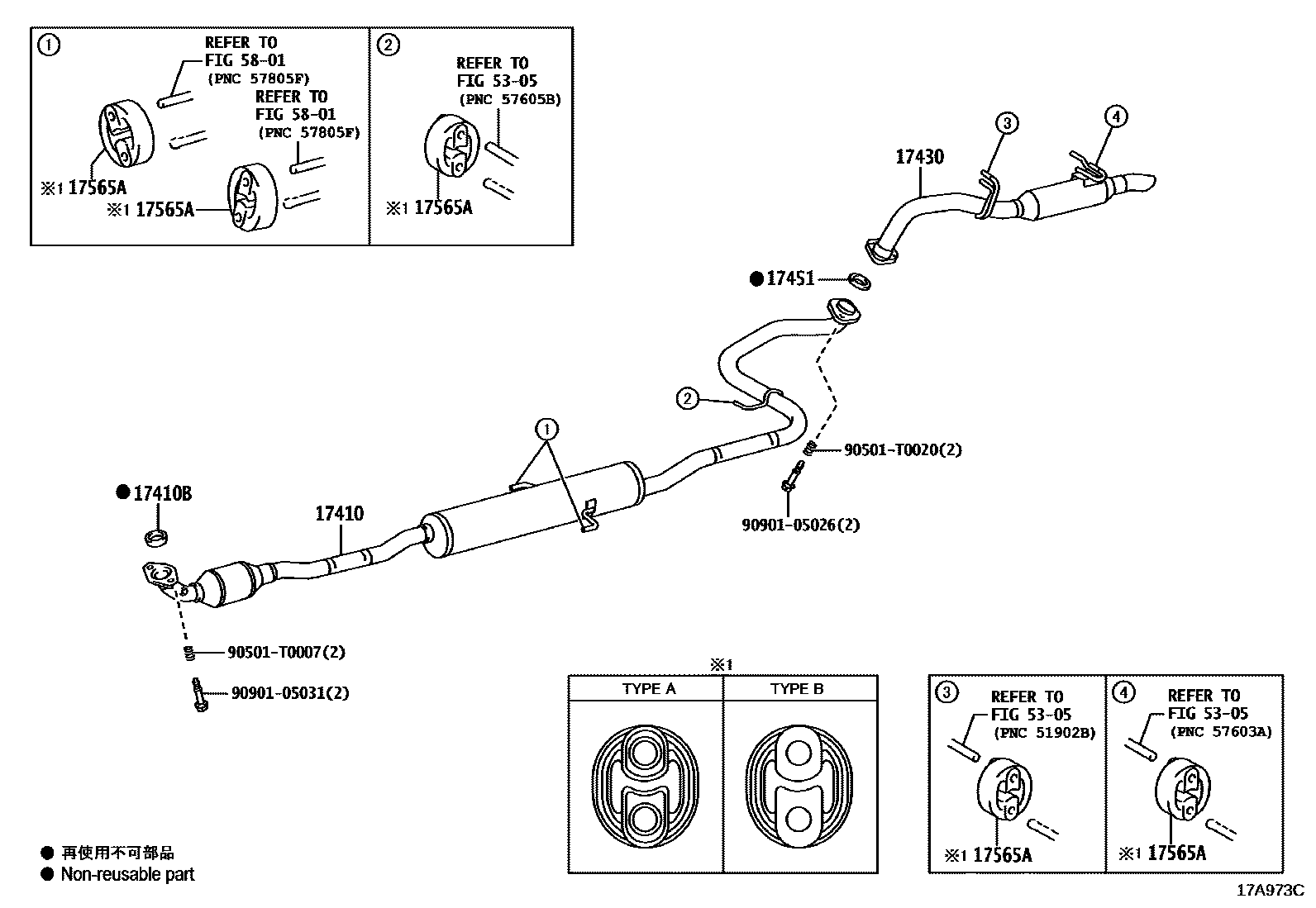

Toyota YARIS Exhaust Pipe EPC diagram — 17A973C — Exhaust Pipe — 17A973C (201911 – 999999)

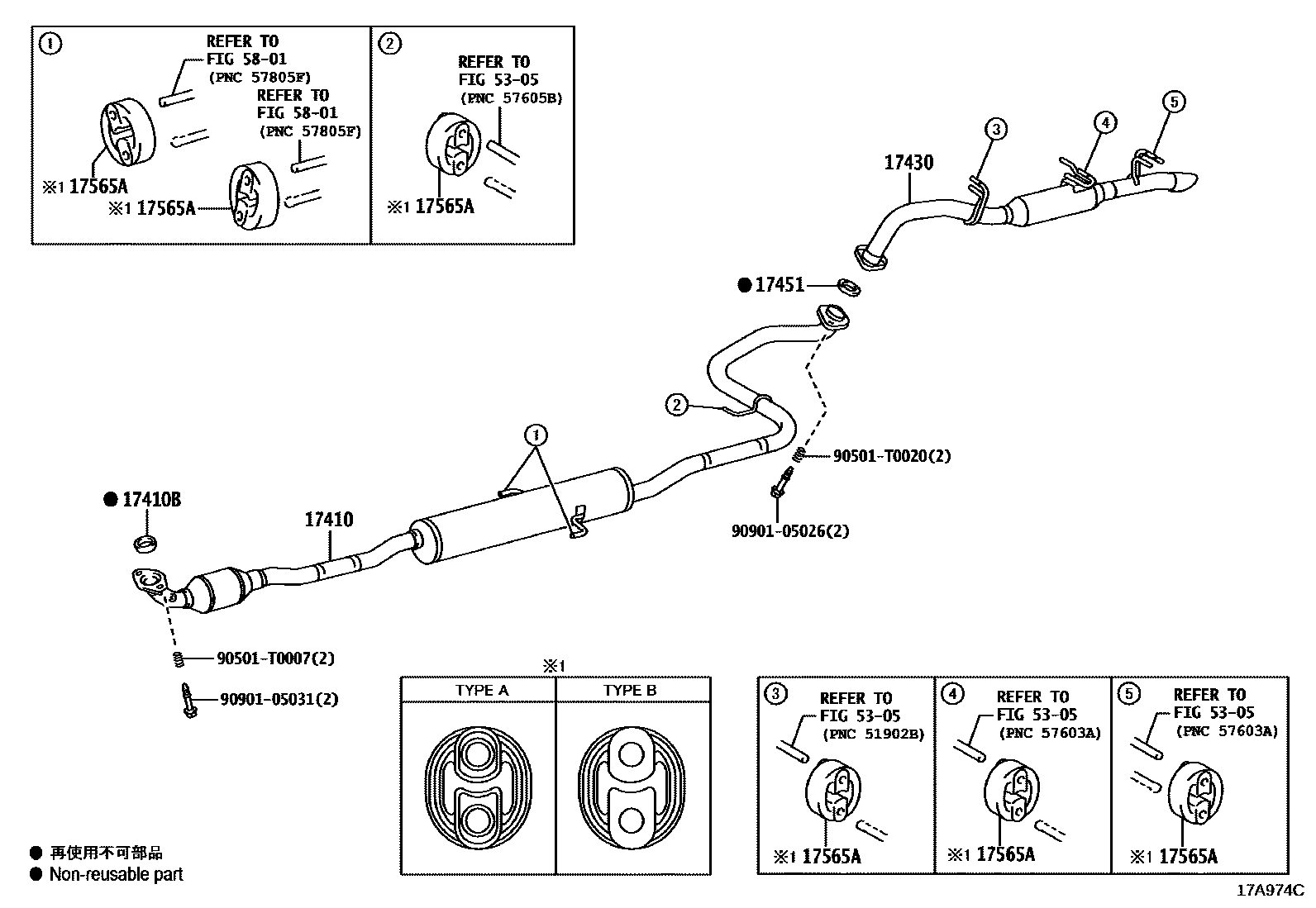

Toyota YARIS Exhaust Pipe EPC diagram — 17A974C — Exhaust Pipe — 17A974C (201911 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-0Y640 · 17410-0Y650 · 17410-0Y660 · 17410-0Y670 · 17410-0Y880 · 17410-0YB00 · 17410-0YB20 · 17410-0YB30
17410B	Exhaust pipe gasket	17451-0M020
17430	Exhaust tailpipe assembly	17430-0Y240 · 17430-0Y241 · 17430-0Y300 · 17430-0Y340 · 17430-0Y341 · 17430-0Y350
17451	Exhaust pipe gasket	17451-0M032
17565A	No. 4 exhaust pipe lifting lug	17565-0M040 · 17565-0Y020
