Toyota YARIS Crankshaft & Piston — Figure 1301

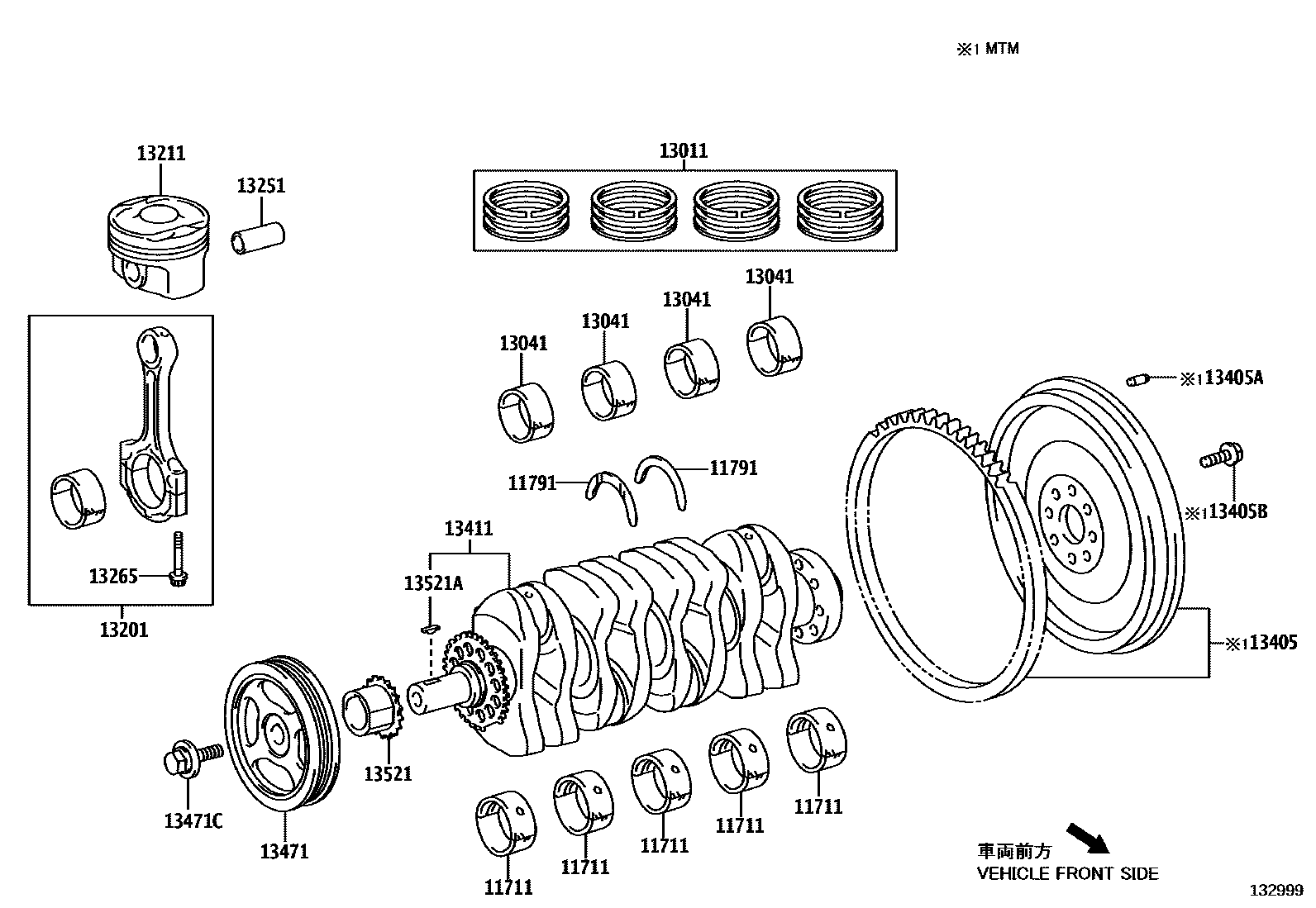

Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0Y010 · 11791-B0010 |
| 13011 | Piston ring assembly | 13011-0Y030 · 13011-0Y090 |
| 13201 | Connecting rod sub-assembly | 13201-09C40 · 13201-09C50 |
| 13211 | piston | 13211-0Y061 · 13211-0Y140 · 13211-0Y150 |
| 13251 | Piston pin | 13251-0Y040 · 13251-0Y070 |
| 13265 | Connecting rod bolts | 13265-21020 |
| 13405 | Flywheel sub-assembly | 13405-0Y100 |
| 13405A | Direct sales (for flywheel) | 90250-08120 · 90250-T0007 |
| 13405B | Flywheel fixing bolt | 90913-01029 |
| 13411 | crankshaft | 13401-0Y120 · 13401-0Y130 · 13401-47070 · 13401-47090 |
| 13471 | crankshaft pulley | 13470-0Y020 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-T0444 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0Y060 |
| 13521A | Key (for crankshaft timing gear) | 90280-04001 |
