Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 1 images and 8 PNC and OE references.

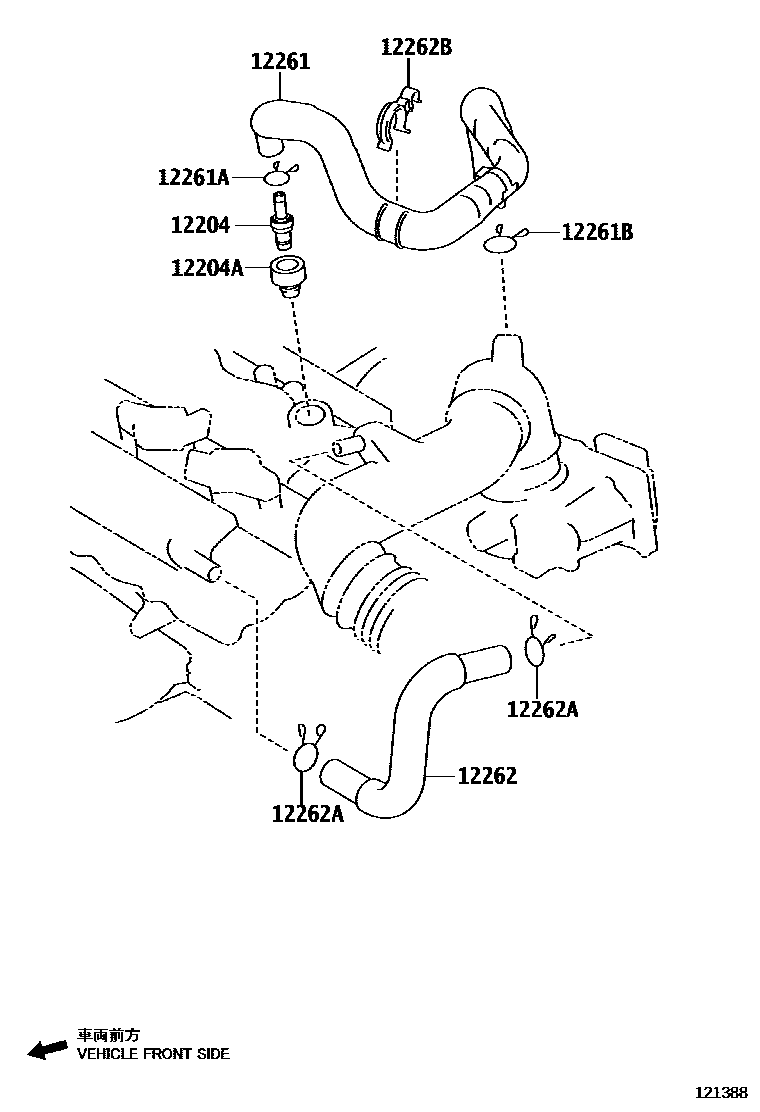

Toyota YARIS Ventilation Hose EPC diagram — 121388
Ventilation Hose — 121388 (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0Y020
12204AGasket (for ventilation system)90480-T0013
12261Ventilation Hose12261-0Y041
12261AClip or clip (for vent hose)90466-T0061
12261BClip or clip (for vent hose)90466-T0062
12262Ventilation hose No. 212262-0Y110
12262AClamp (for vent hose No. 2)90466-T0027
12262BClamp (for ventilation hose)16581-47020
