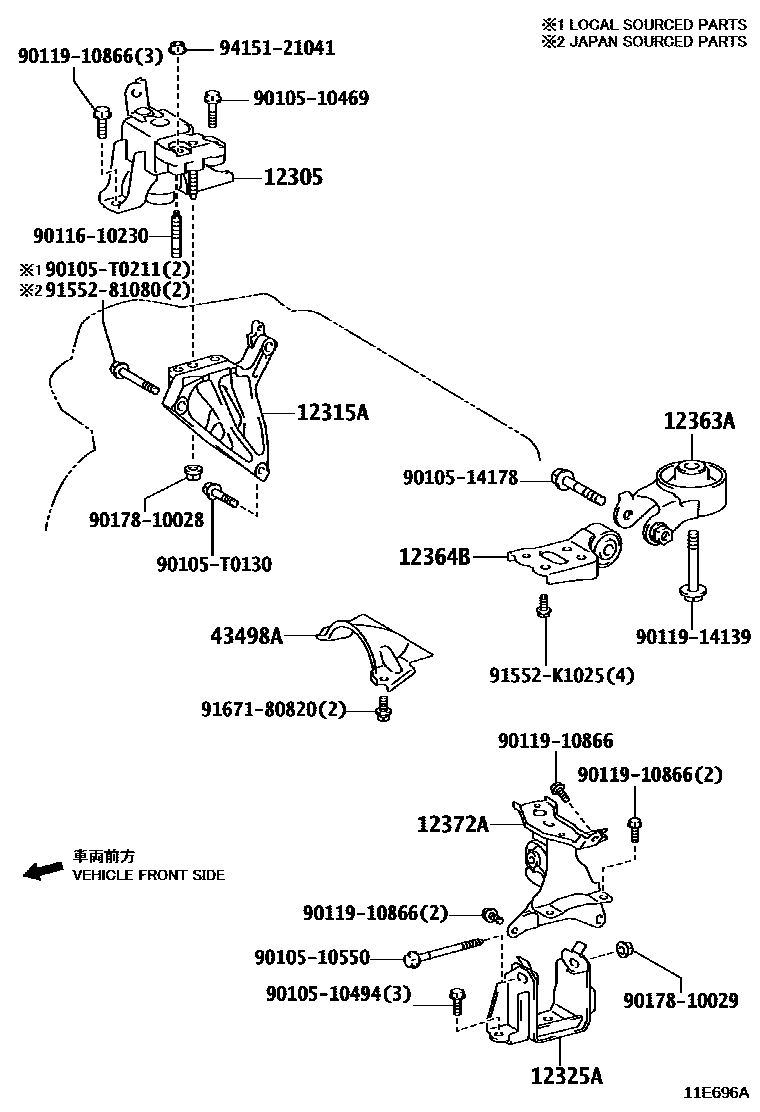

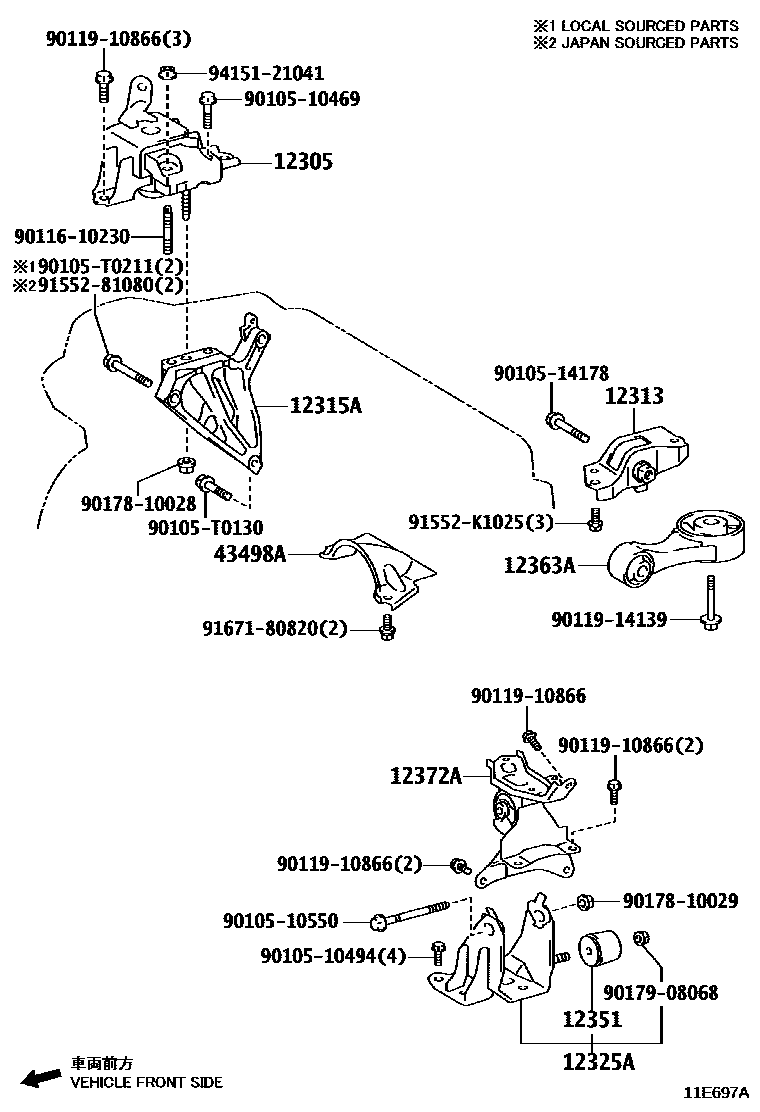

Toyota YARIS Engine Mounting — Figure 1107
Toyota YARIS EPC diagram 1107, Engine Mounting, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0Y170 · 12305-0Y190 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0Y090 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0Y060 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12304-0Y150 · 12325-0Y350 |
| 12351 | engine mount shock absorber | 12351-47020 |
| 12363A | Engine movement control lever | 12363-0Y230 · 12363-0Y260 |
| 12364B | Engine No. 2 motion control lever | 12364-0Y140 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0Y290 · 12372-0Y300 |
| 43498A | No. 1 drive shaft insulation pad | 43498-0D110 |
