Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11E688
Engine Overhaul Gasket Kit — 11E688 (201911 – 999999)

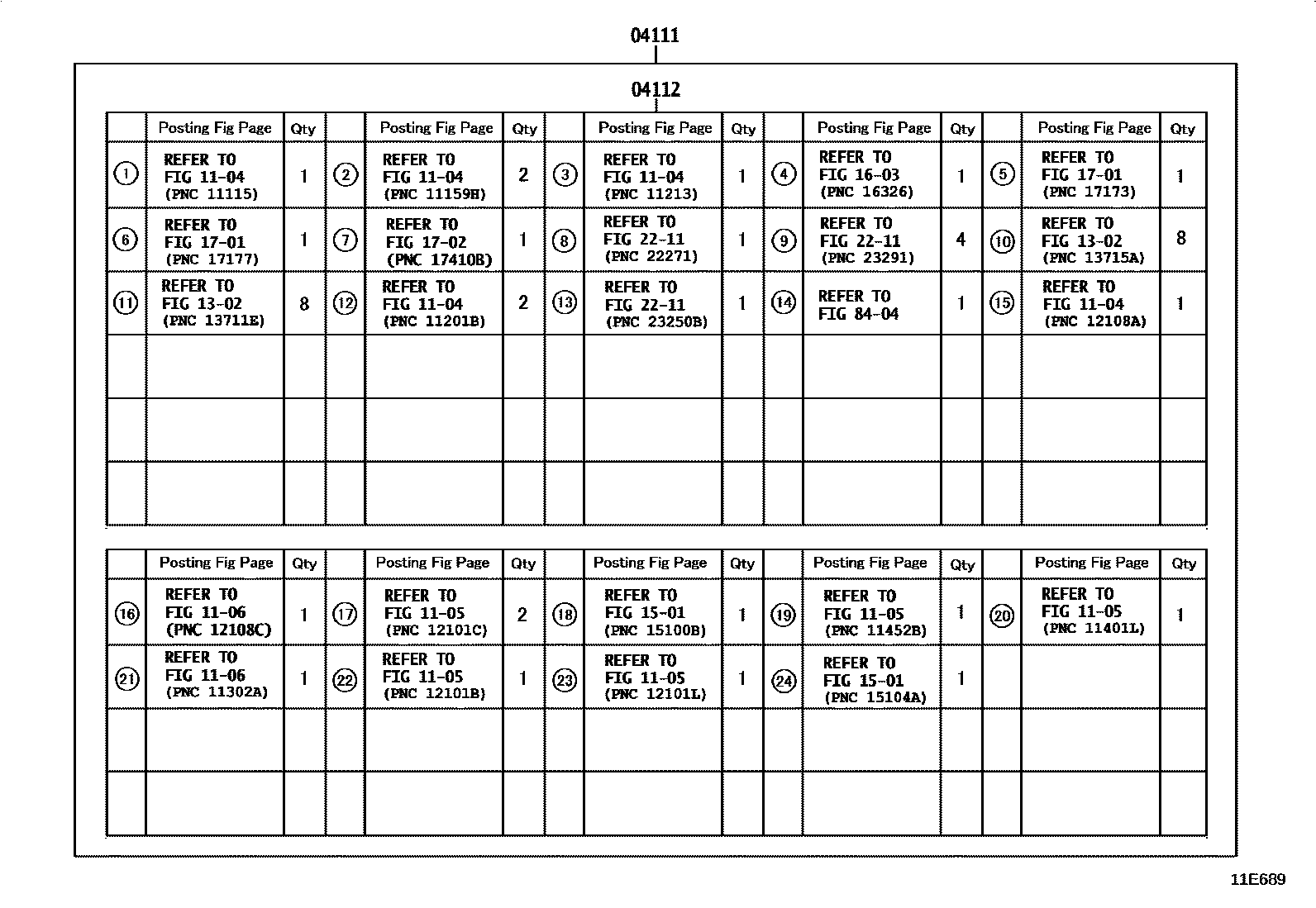

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11E689
Engine Overhaul Gasket Kit — 11E689 (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0Y050
04112Engine valve grinding pad assembly04112-0Y050
