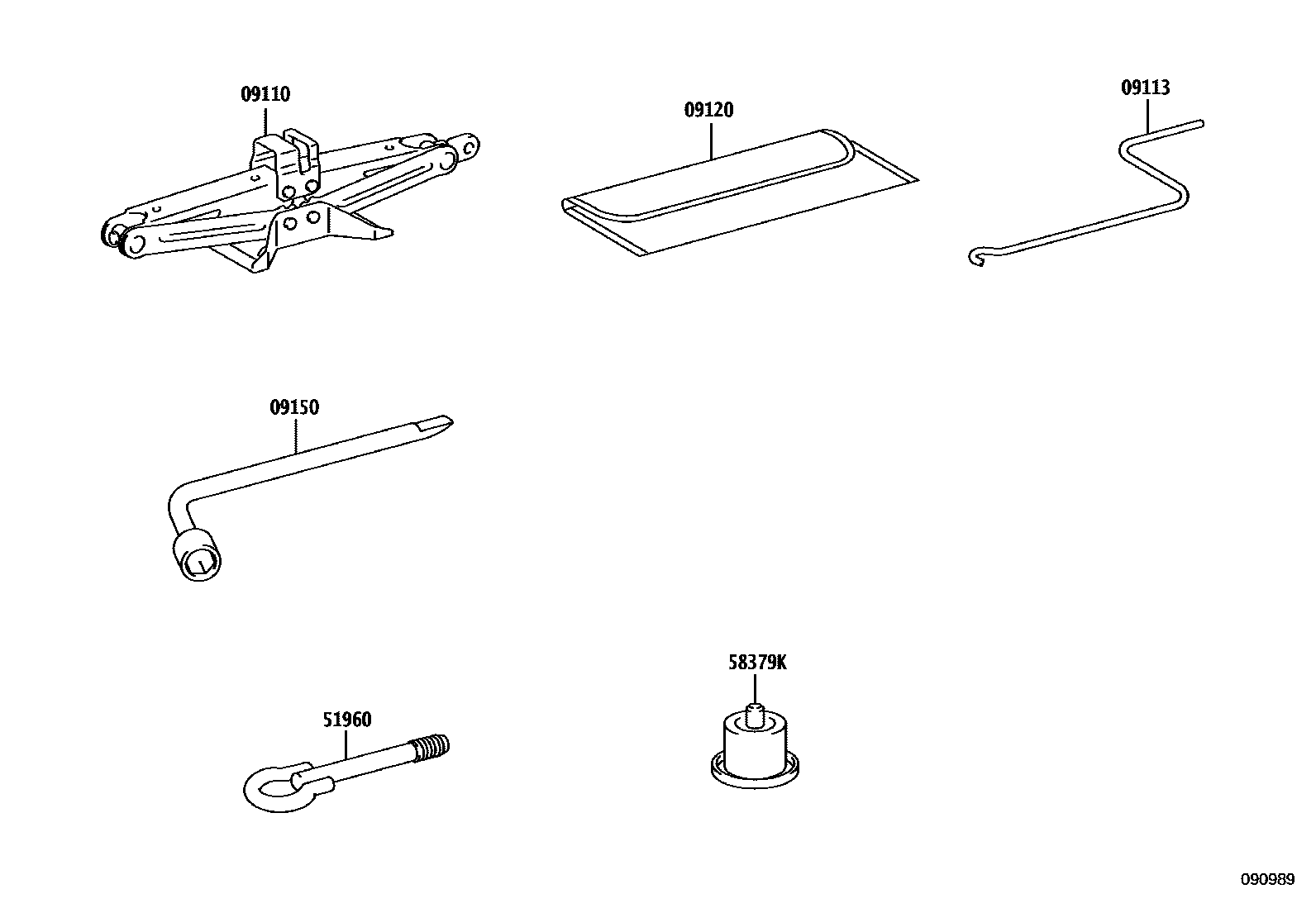

Toyota YARIS Standard Tools — Figure 0901
Toyota YARIS EPC diagram 0901, Standard Tools, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0D210 · 09111-0D211 |
| 09113 | Jack Handle | 09113-02040 |
| 09120 | Tool Bag | 09120-0D060 |
| 09120C | Tool Bag No. 2 | 09120-0D110 · 09120-0D200 |
| 09125 | tool bag straps | 09125-0D010 |
| 09150 | Wheel Nut Wrench Case | 09150-02010 · 09150-0D060 |
| 51960 | Front Towing Hook Assembly | 51960-0D240 |
| 58379K | Body lower back panel protection parts | 58379-0D100 |
| 81910H | Reflector assembly | 81641-0D050 · 81910-02010 |
