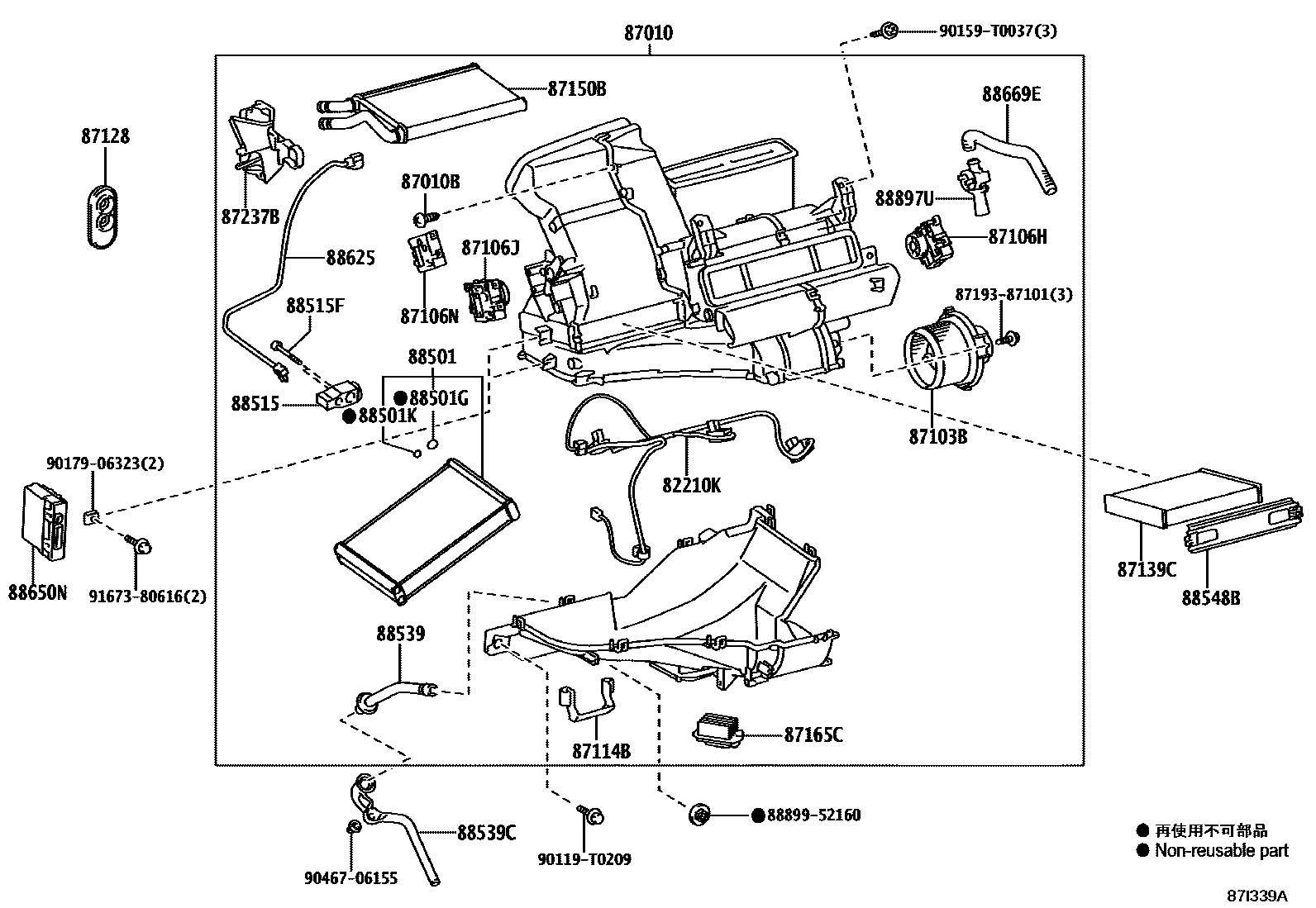

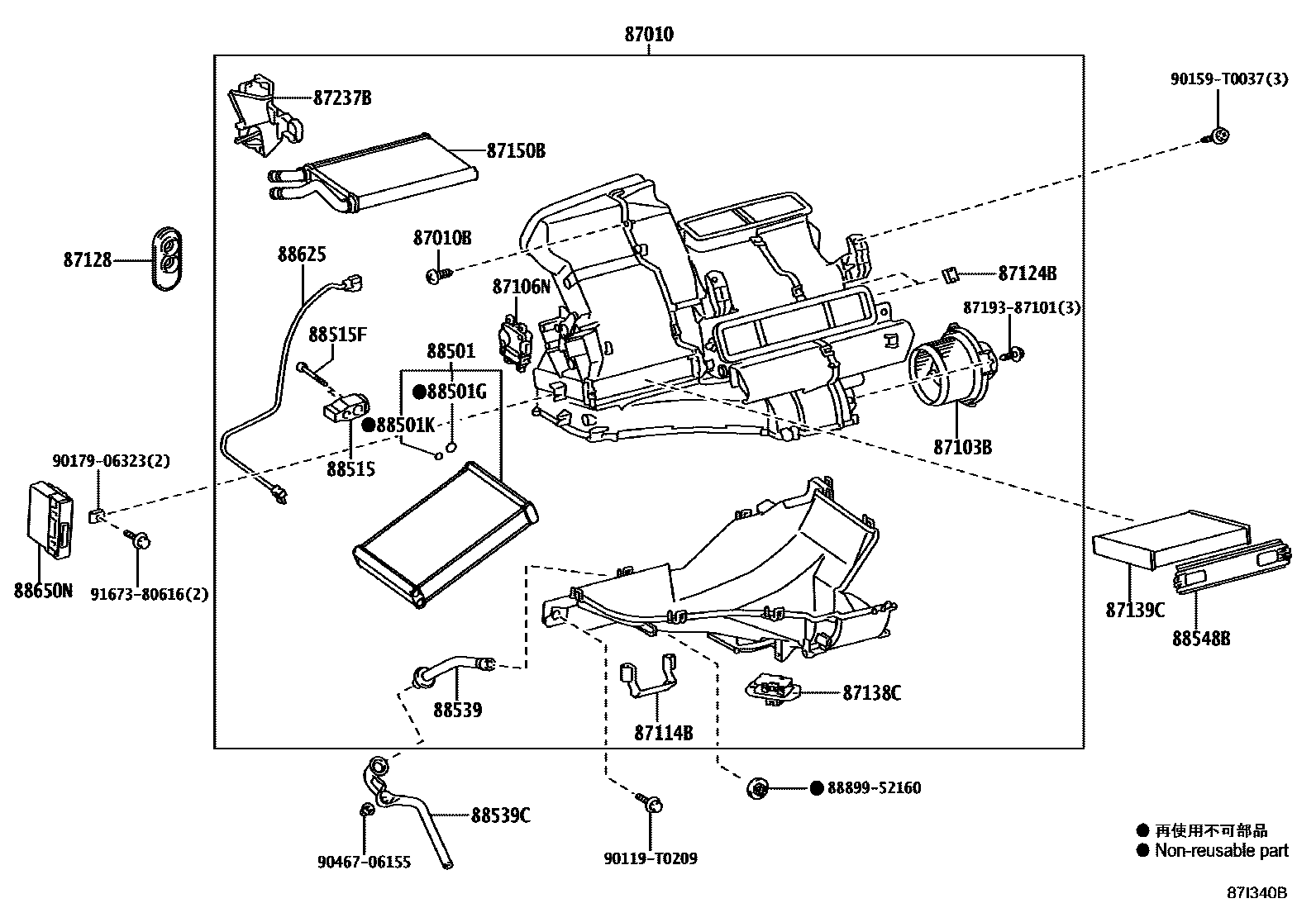

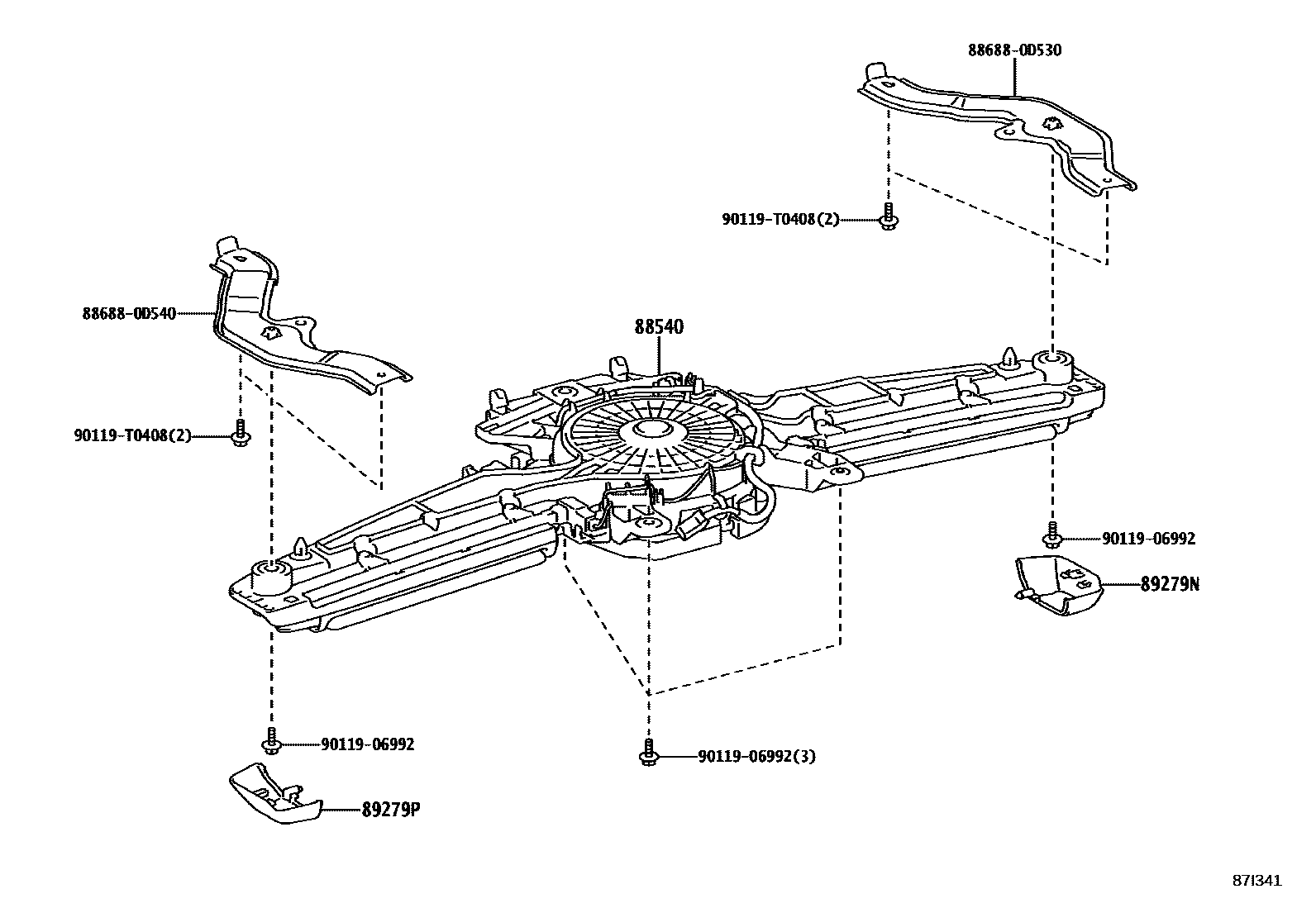

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0D090 |
| 87010 | Air conditioning unit assembly | 87010-0DG30 · 87010-0DG50 |
| 87010B | Screws (for air conditioning unit) | 90099-00968 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D460 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-0D500 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-0D330 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-0D340 · 87106-0D510 |
| 87114B | heater cover | 87114-0D070 |
| 87124B | heater clip | 87124-0D300 |
| 87128 | heater seal | 87128-0D210 |
| 87138C | Blower resistor | 87138-0D360 |
| 87139C | air purification filter | 87139-02130 · 87139-50100 |
| 87150B | Heater radiator assembly | 87150-0D220 |
| 87165C | Blower motor control device | 87165-0D190 |
| 87237B | Heater connection cover | 87237-0D130 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D470 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88501K | No. 1 cooler evaporator O-ring (liquid) | 90099-14120 |
| 88515 | Cooler expansion valve | 88515-0D410 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04630 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-0D570 |
| 88539C | No. 2 cooler unit drain hose | 88539-0D540 |
| 88548B | air filter housing | 88548-0D250 |
| 88625 | Cooler No. 1 Thermistor | 88620-0D180 · 88620-0D350 |
| 88650N | Air conditioning amplifier assembly | 88650-0D830 · 88650-0D850 |
| 88669E | air hose | 87233-0D080 |
| 88897U | aspirator tube | 88897-0D090 |
