Toyota YARIS 后视镜 — Figure 8701

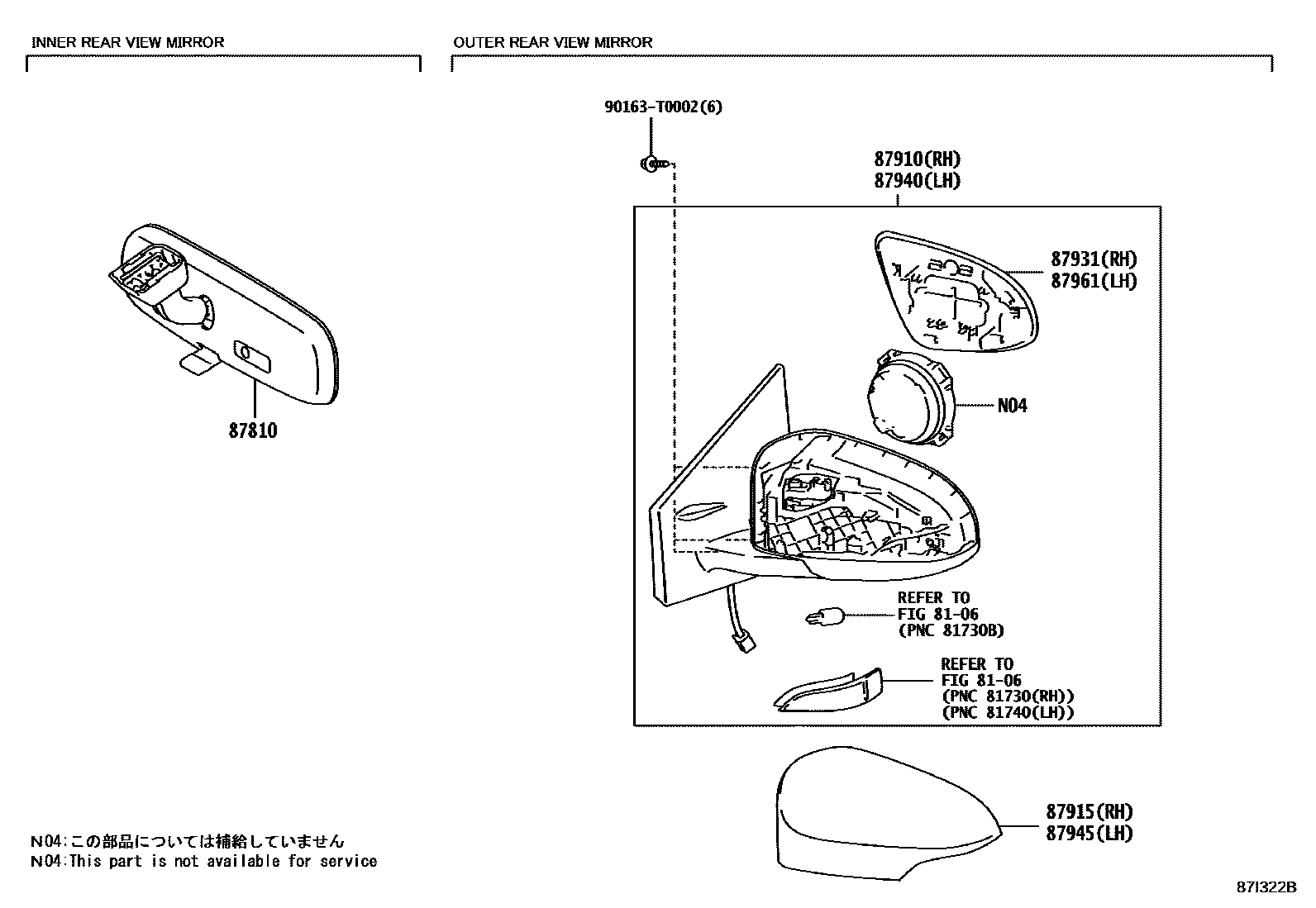

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06041 |
| 87910 | Right exterior rearview mirror assembly | 87910-0DD10 · 87910-0DD21 |
| 87915 | Right exterior rearview mirror cover | 87915-0D912 · 87915-0D913 |
| 87931 | Right exterior rearview mirror | 87931-0DD10 |
| 87940 | Left exterior rearview mirror assembly | 87940-0DD10 · 87940-0DD21 |
| 87945 | Left exterior rearview mirror cap | 87945-0D912 · 87945-0D913 |
| 87961 | Left exterior rearview mirror | 87961-0DD10 |
