Toyota YARIS 挡风玻璃清洗器 — Figure 8503

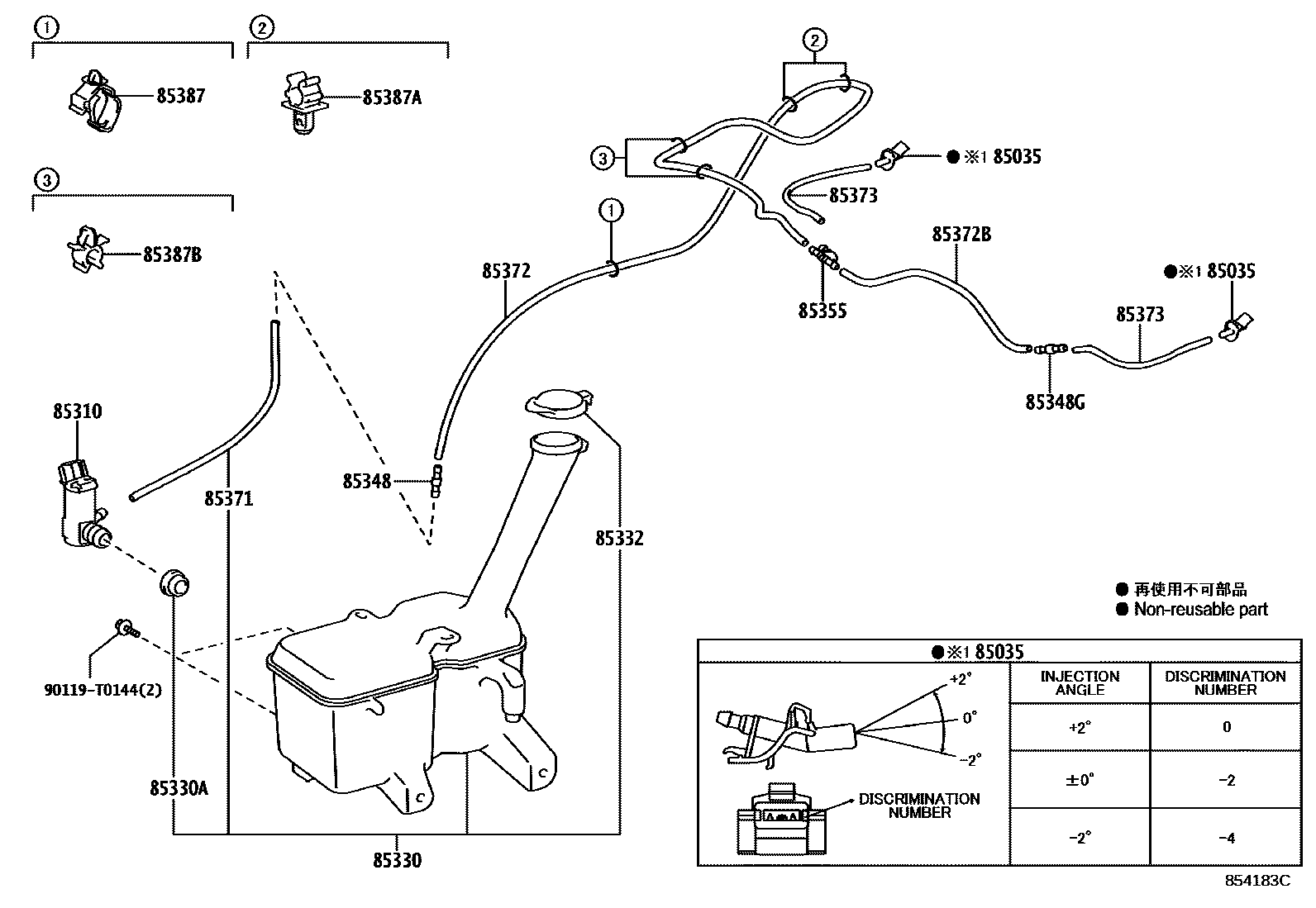

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-20230 · 85381-20300 · 85381-20310 |
| 85310 | Windshield washer motor and pump assembly | 85330-0K011 |
| 85330 | Windshield washer fluid tank assembly | 85315-0D410 |
| 85330A | Windshield washer fluid tank bushing | 90069-50013 |
| 85332 | Windshield washer fluid tank cap | 85316-0D410 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-46081 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90069-46086 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90069-46086 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90069-46089 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-0K100 · 82711-3F230 |
| 85387A | Cleaner clip No. 2 | 85371-52110 |
| 85387B | No. 3 cleaner clip | 90469-07011 · 90469-T0005 |
