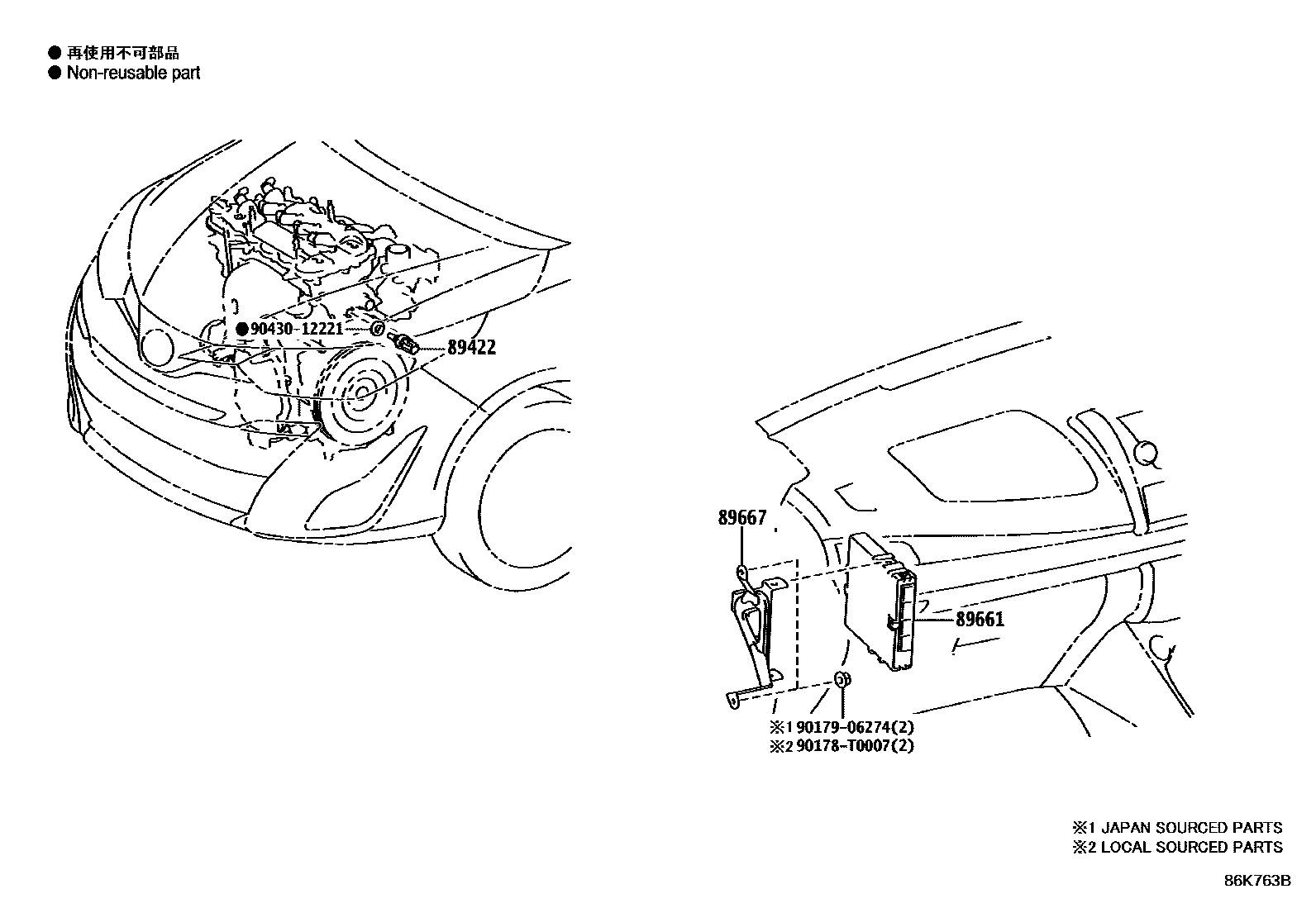

Toyota YARIS 电子燃油喷射系统 — Figure 8404
Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89661 | Engine control ECU | 89661-0DN70 · 89661-0DY60 · 89661-0UB30 · 89661-0UB40 |
| 89667 | Engine control ECU bracket | 89667-0D350 |
