Toyota YARIS 线束和卡夹 — Figure 8202

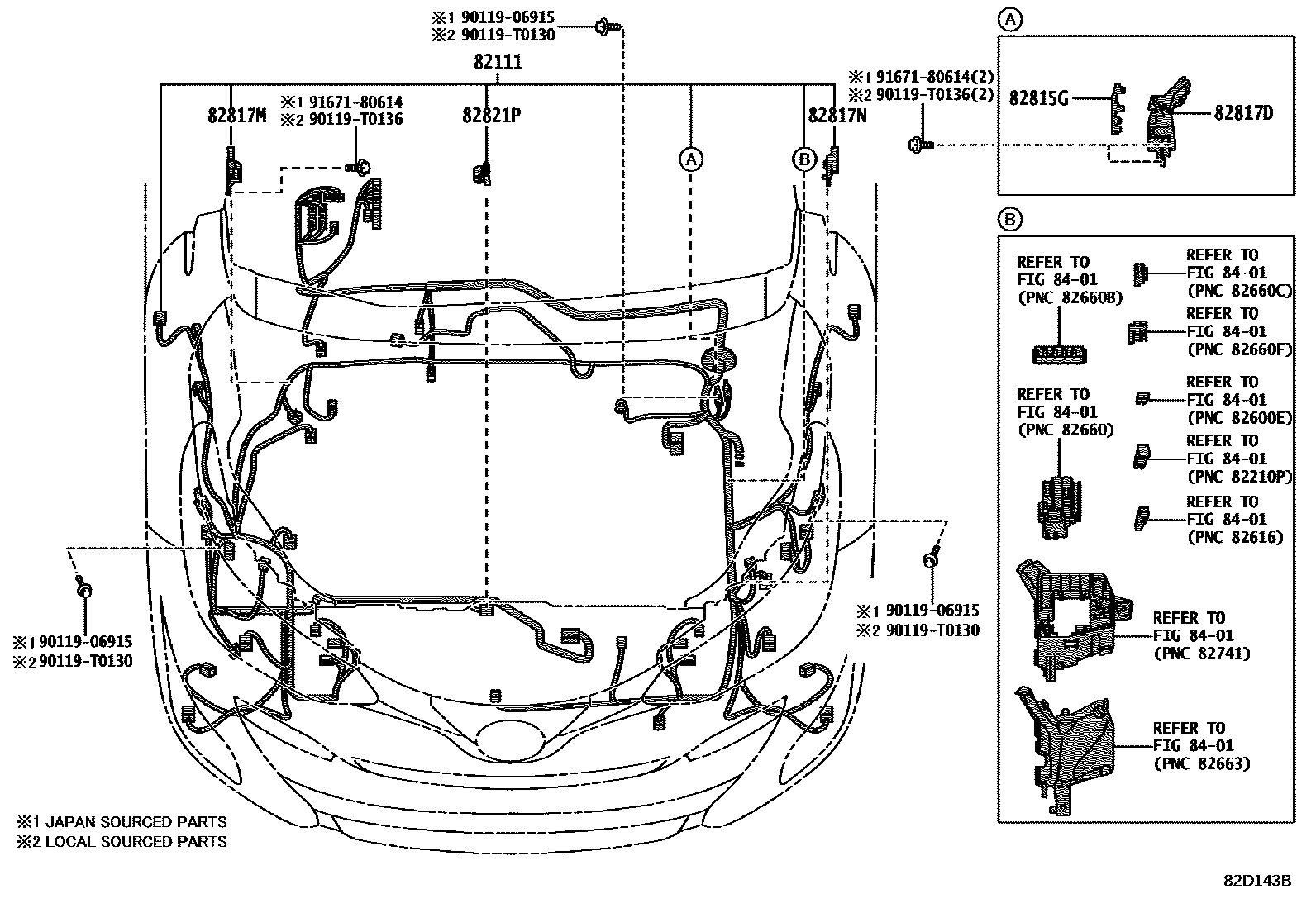

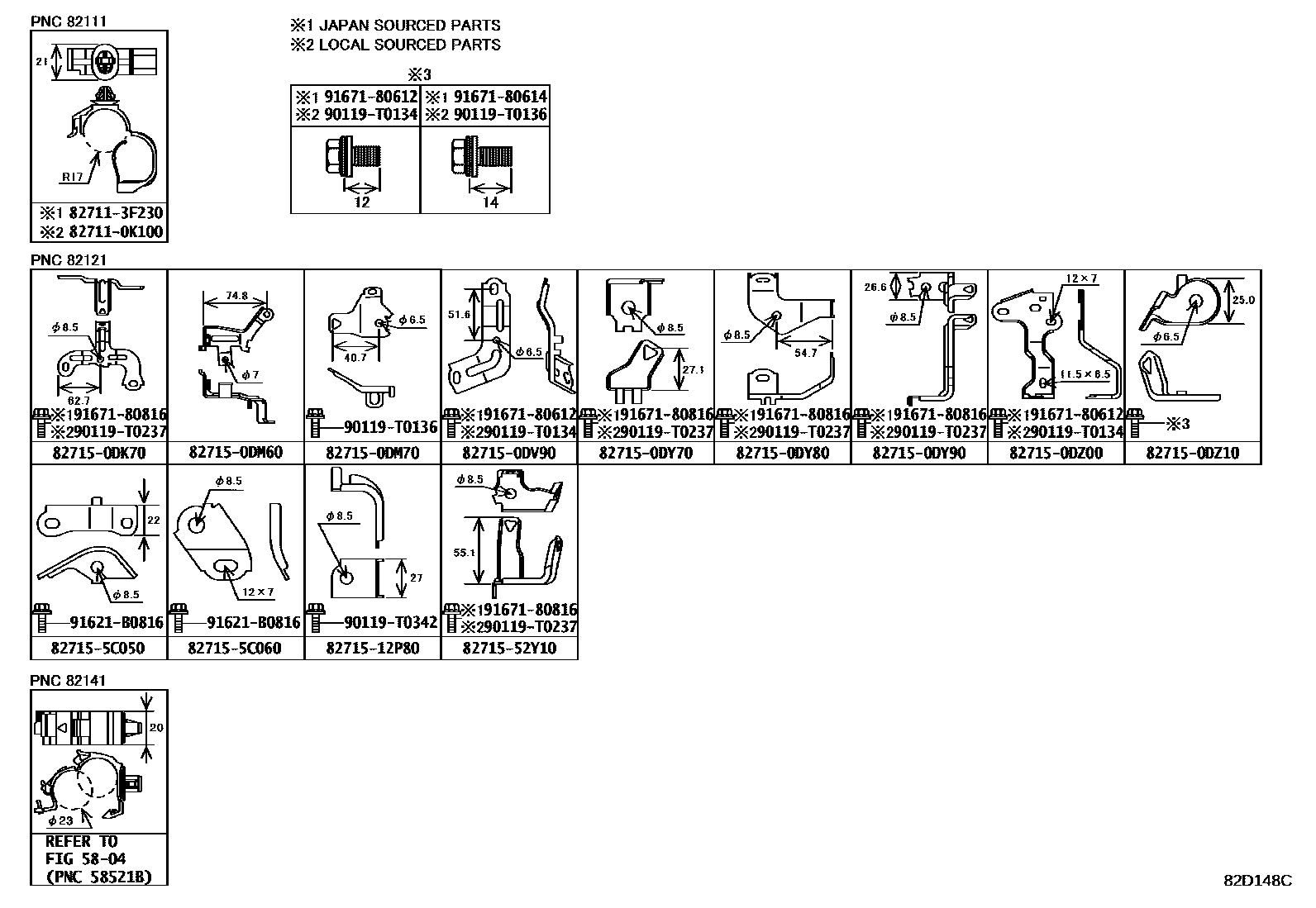

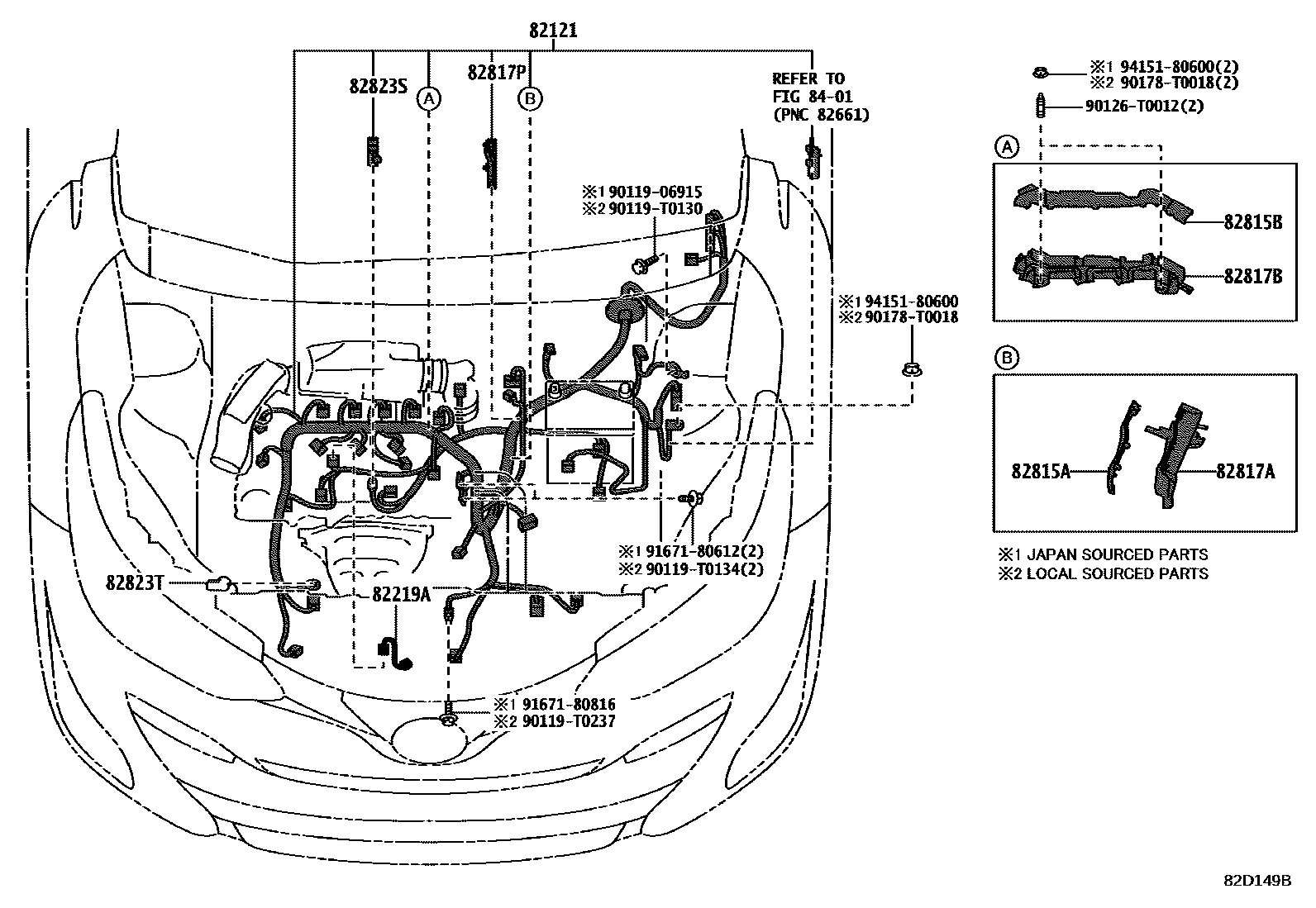

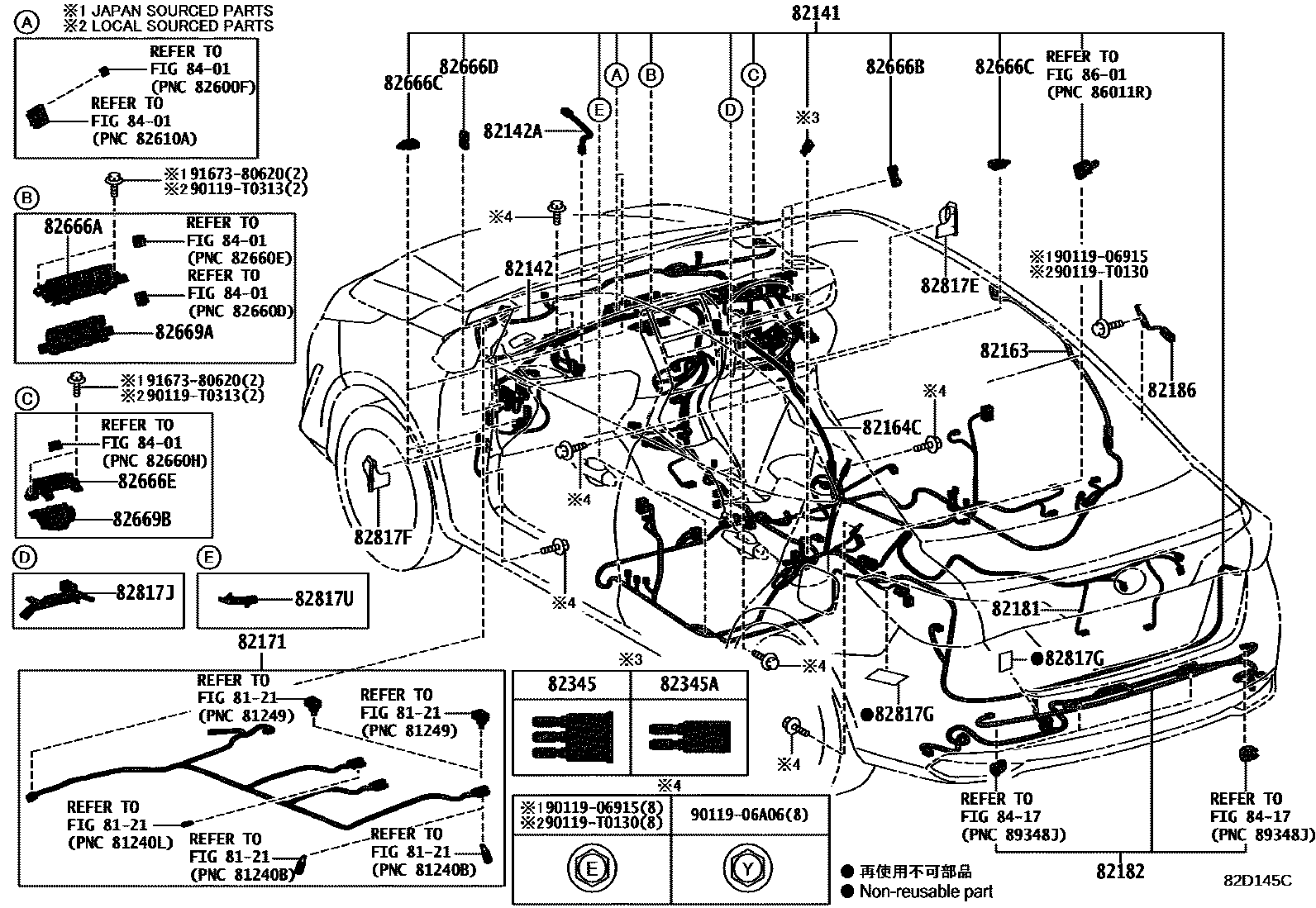

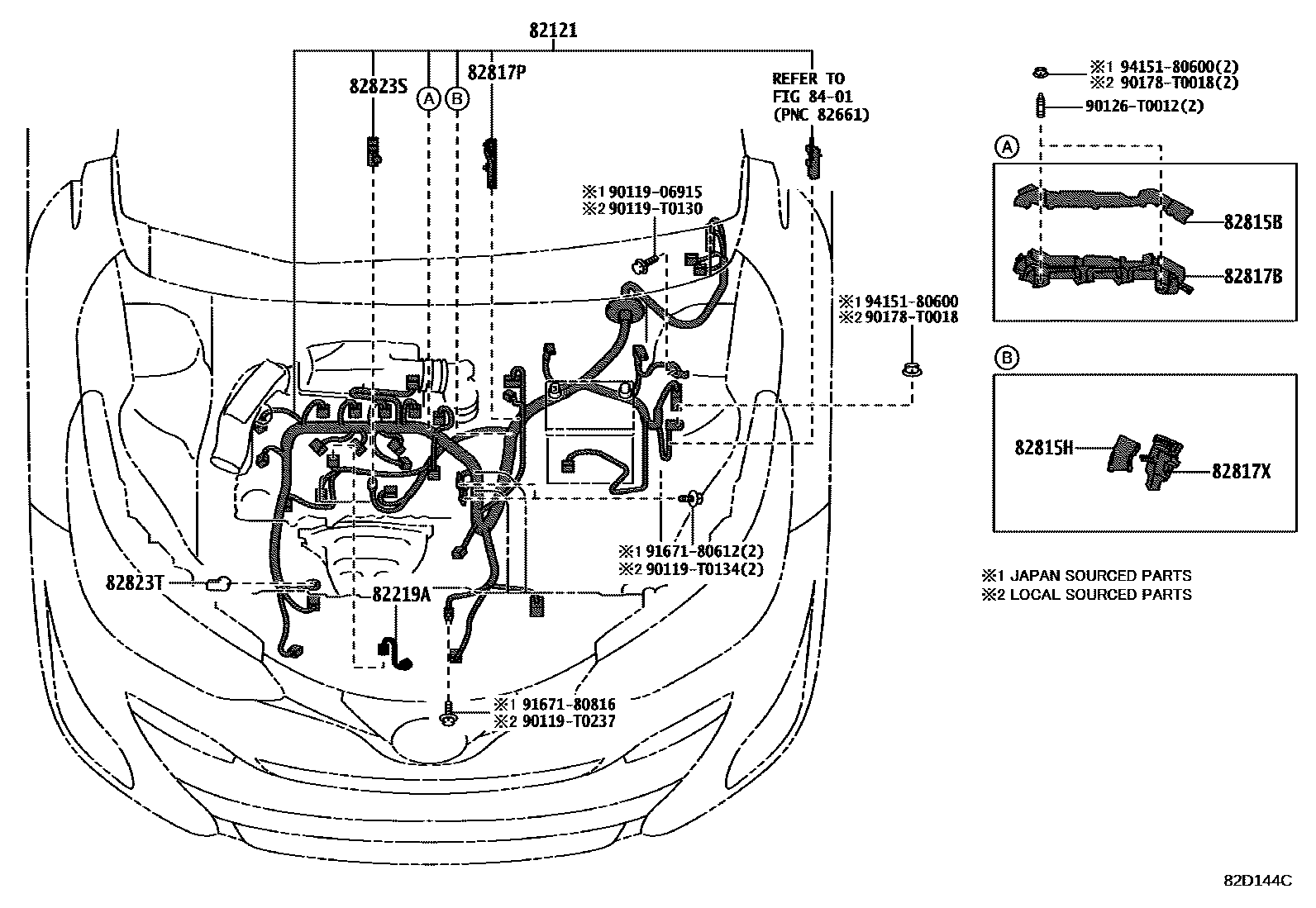

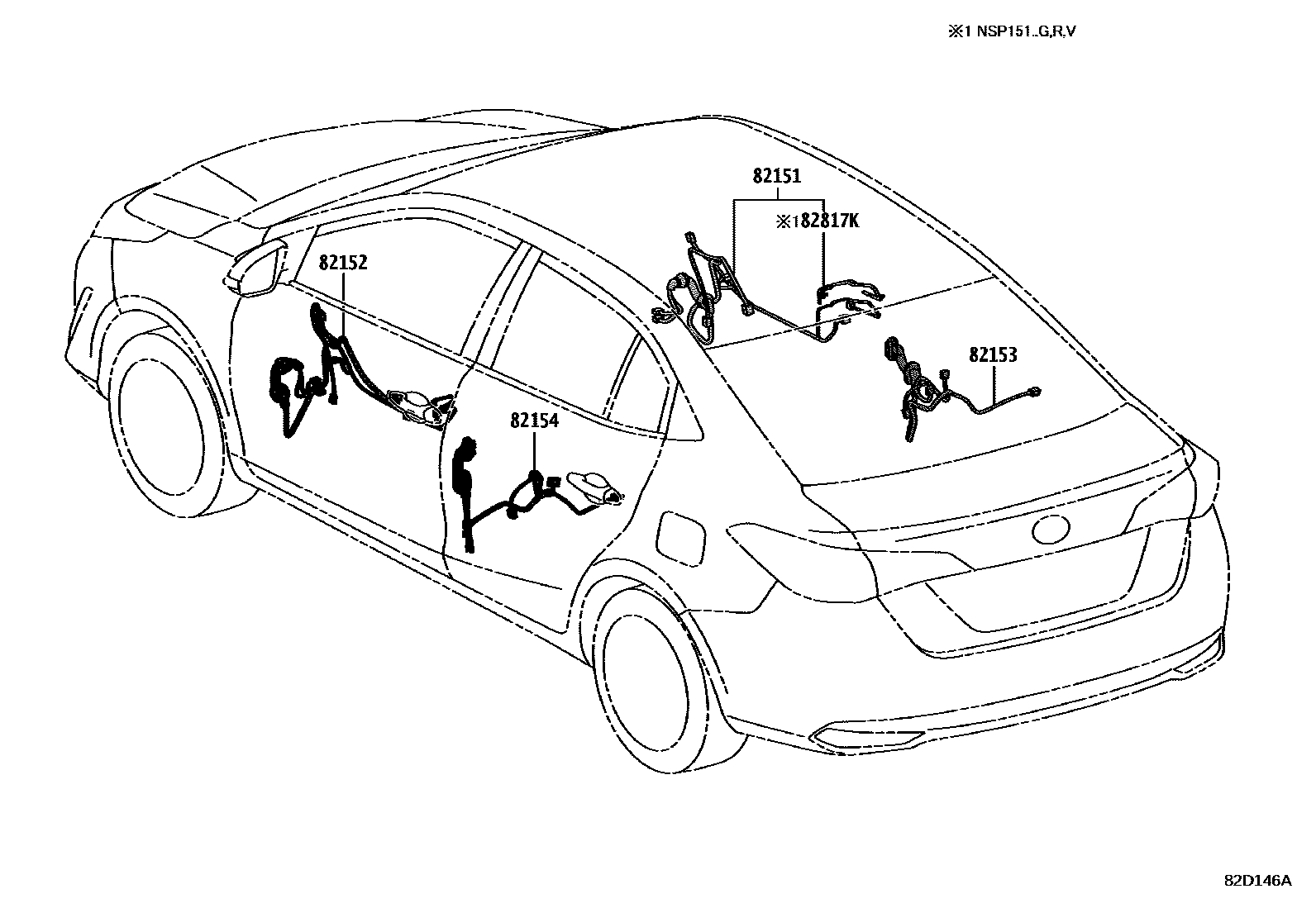

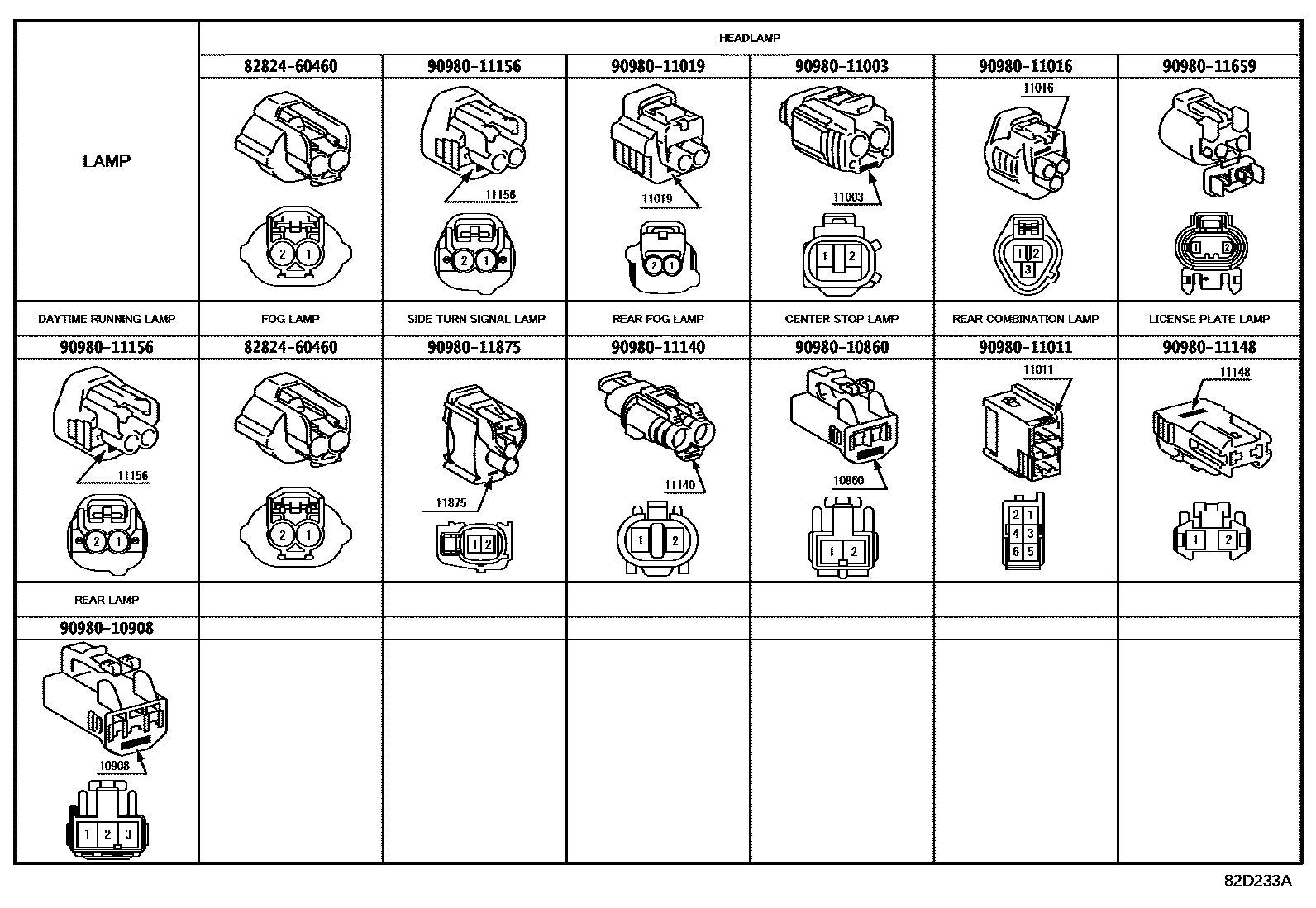

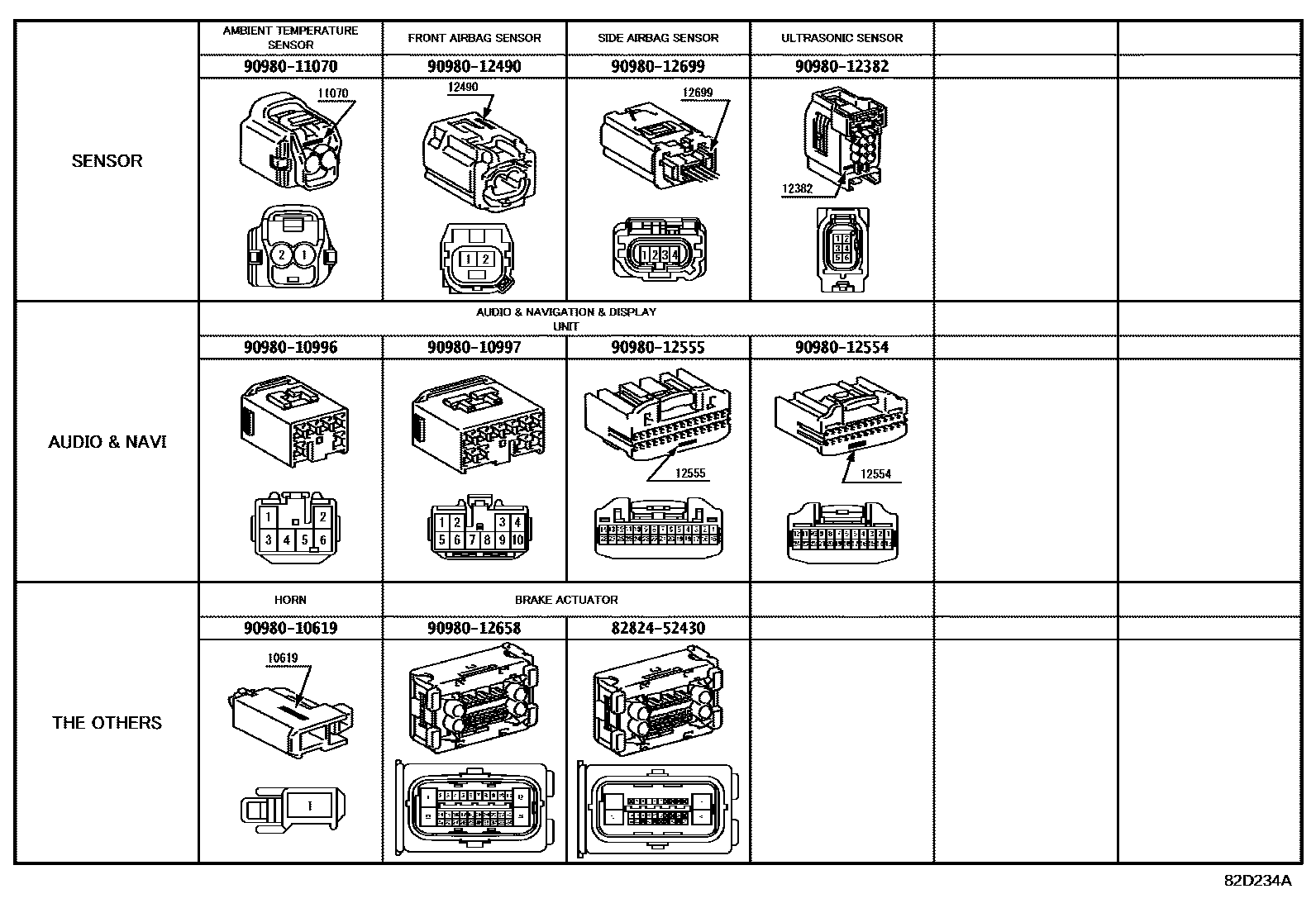

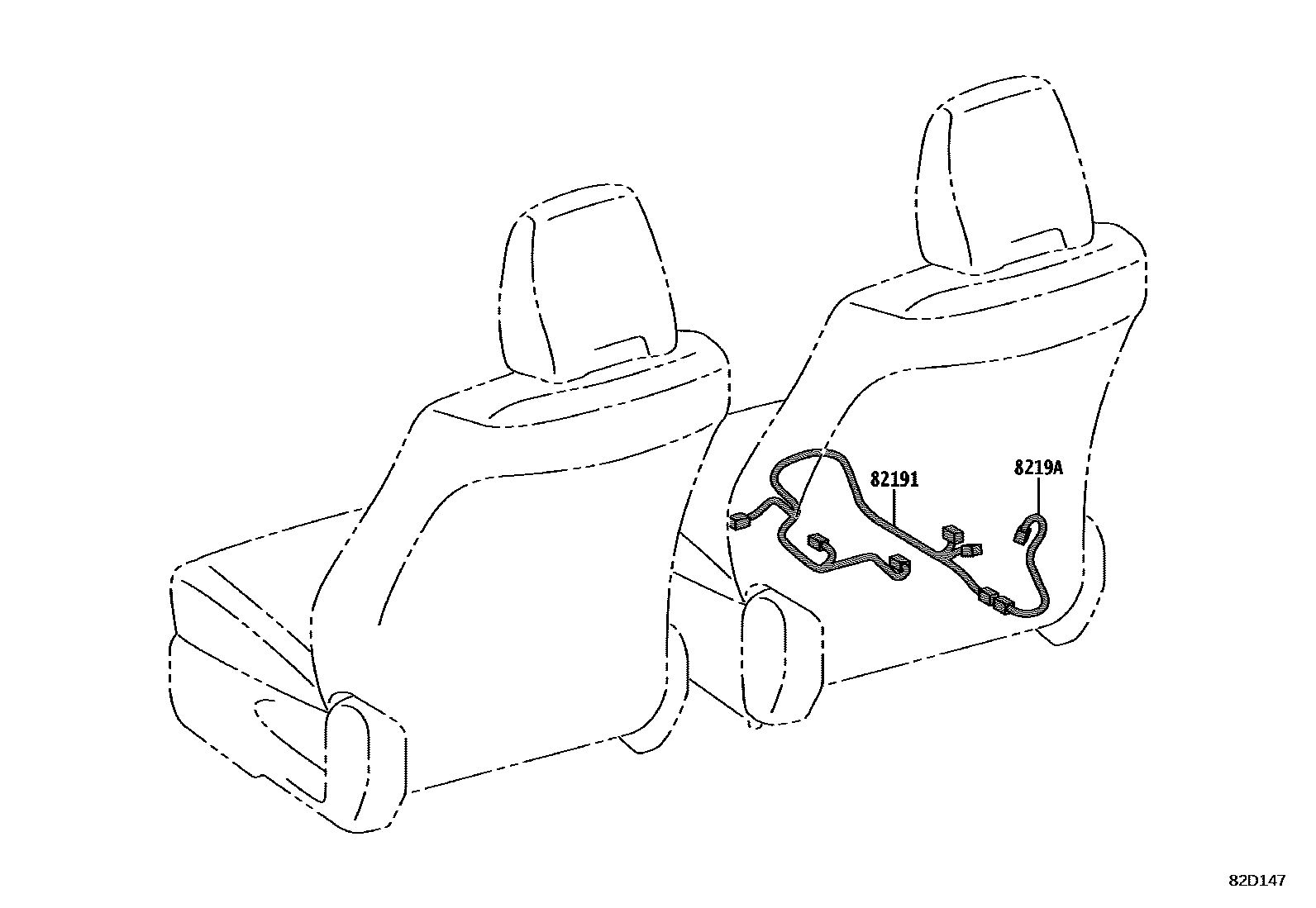

Toyota YARIS EPC diagram 8202, 线束和卡夹, with 9 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82111 | Engine room main wiring harness | 82115-0U761 · 82115-0U762 · 82115-0U771 · 82115-0U772 · 82115-0U781 · 82115-0U782 · 82115-0U791 · 82115-0U792 · 82115-0U801 · 82115-0U802 · 82115-0U811 · 82115-0U812 · 82115-0U821 · 82115-0U822 · 82115-0U831 · 82115-0U832 |
| 82121 | Engine wiring harness | 82121-0U031 · 82121-0U041 |
| 82141 | Dashboard wiring harness | 82145-F5L30 · 82145-F5L31 · 82145-F5L40 · 82145-F5L50 · 82145-F5L60 · 82145-F5L61 · 82145-F5L70 · 82145-F5L80 · 82145-F5L90 · 82145-F5M00 · 82145-F5S00 · 82145-F5S01 · 82145-F5S10 · 82145-F5S20 · 82145-F5S21 · 82145-F5S30 · 82145-F5S40 · 82145-F5S50 · 82146-0U562 · 82146-0U602 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-0D600 · 82142-0D610 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-0D170 |
| 82151 | Right front door wiring harness | 82151-0U600 · 82151-0U610 |
| 82152 | Left front door wiring harness | 82152-0U680 · 82152-0U690 |
| 82153 | Rear door wiring harness No. 1 | 82153-0DC90 · 82153-0DD00 |
| 82154 | Rear door wiring harness No. 2 | 82154-0DB40 · 82154-0DB50 |
| 82163 | Floor wiring harness No. 3 | 82163-0D110 |
| 82164C | No. 4 floor wiring harness | 82164-0D080 |
| 82171 | Roof No. 1 wiring harness | 82171-0D870 · 82171-0D880 · 82171-0DG20 |
| 82181 | Luggage No. 1 wiring harness | 82181-0D480 · 82181-0D490 · 82181-0D540 |
| 82182 | Luggage No. 2 wiring harness | 82182-0D271 · 82182-0D281 |
| 82186 | Rear window wiring harness No. 1 | 82186-0D271 |
| 82191 | Front right seat wiring harness | 82191-0D010 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0D010 |
| 82219A | sensor harness | 82219-0D110 |
| 82345 | diode | 82345-20050 |
| 82345A | diode | 82345-32010 |
| 82666A | Connector holder No. 2 | 82666-0D220 |
| 82666B | No. 3 connector holder | 82666-0D240 |
| 82666C | No. 4 connector holder | 82666-20270 |
| 82666D | No. 5 connector holder | 82666-60220 |
| 82666E | No. 6 connector holder | 82666-0D210 |
| 82669A | Connector box lower cover | 82669-0D040 |
| 82669B | Connector box lower cover | 82669-0D030 |
| 82815A | Wiring harness protector cover | 82815-0D410 |
| 82815B | Wiring harness protector cover | 82815-52230 |
| 82815G | No. 5 wire harness protector cover | 82815-0D350 |
| 82815H | No. 6 wire harness protector cover | 82815-0D060 |
| 82817A | No. 2 wire harness protection device | 82817-0D800 |
| 82817B | No. 3 wire harness protection device | 82817-52B80 |
| 82817D | No. 5 wire harness protection device | 82817-0D580 |
| 82817E | No. 6 wire harness protection device | 82817-0D600 |
| 82817F | No. 7 wire harness protection device | 82817-0D610 |
| 82817G | No. 8 wire harness protection device | 61815-64010 |
| 82817J | No. 9 wire harness protection device | 82817-0DC30 |
| 82817K | No. 10 wire harness protection device | 82817-0DB80 |
| 82817M | No. 12 wire harness protection device | 82817-0DB00 |
| 82817N | No. 13 wire harness protection device | 82817-0DB10 |
| 82817P | No. 14 wire harness protection device | 82817-0DB50 |
| 82817U | No. 16 wire harness protection device | 82817-0DC20 |
| 82817X | No. 17 wire harness protection device | 82817-0D130 |
| 82821P | Connector cover | 82821-30650 |
| 82823S | starter terminal cover | 82823-20080 |
| 82823T | Generator terminal cover | 82823-22050 |
