Toyota YARIS 燃油箱和燃油管 — Figure 7701

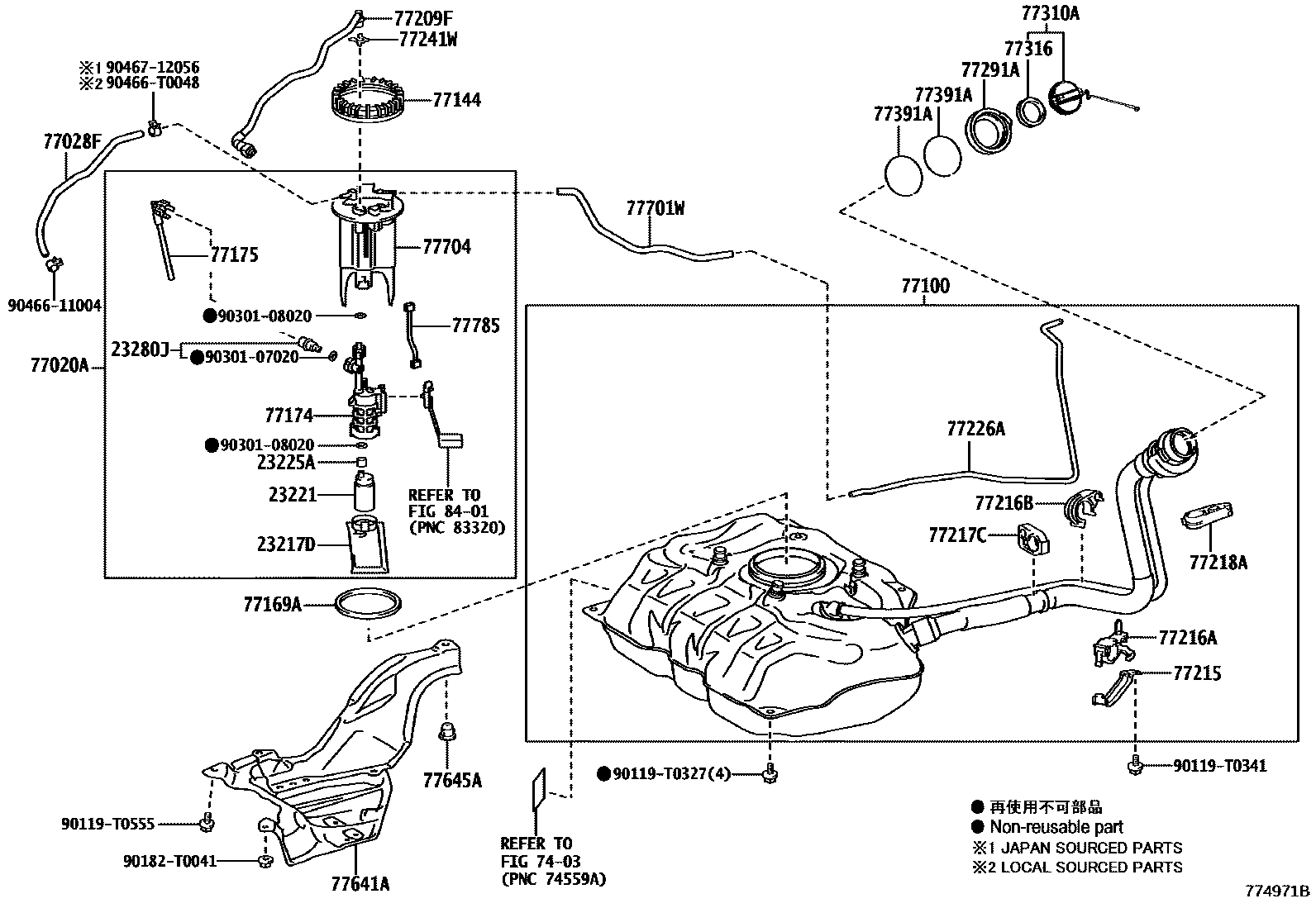

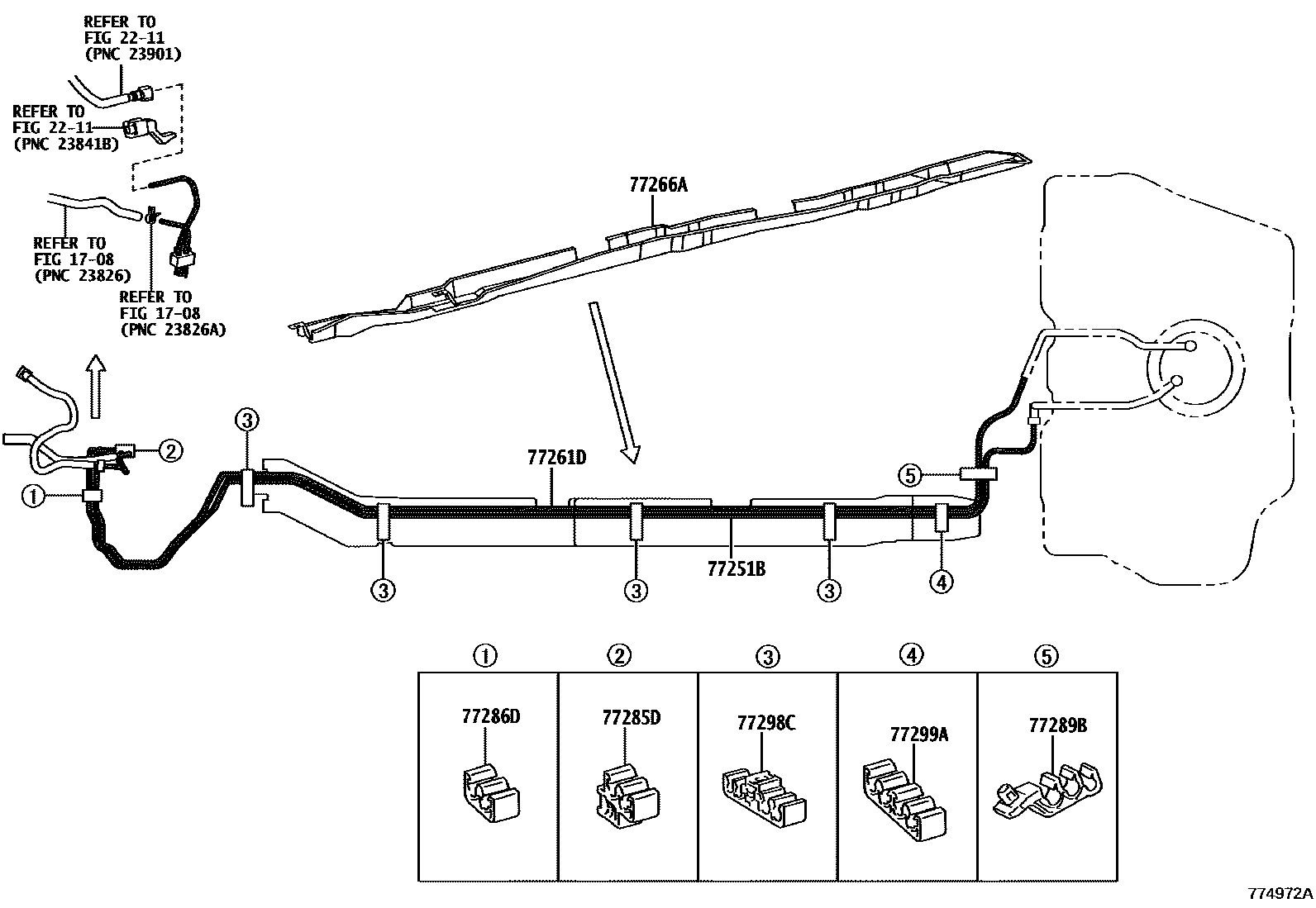

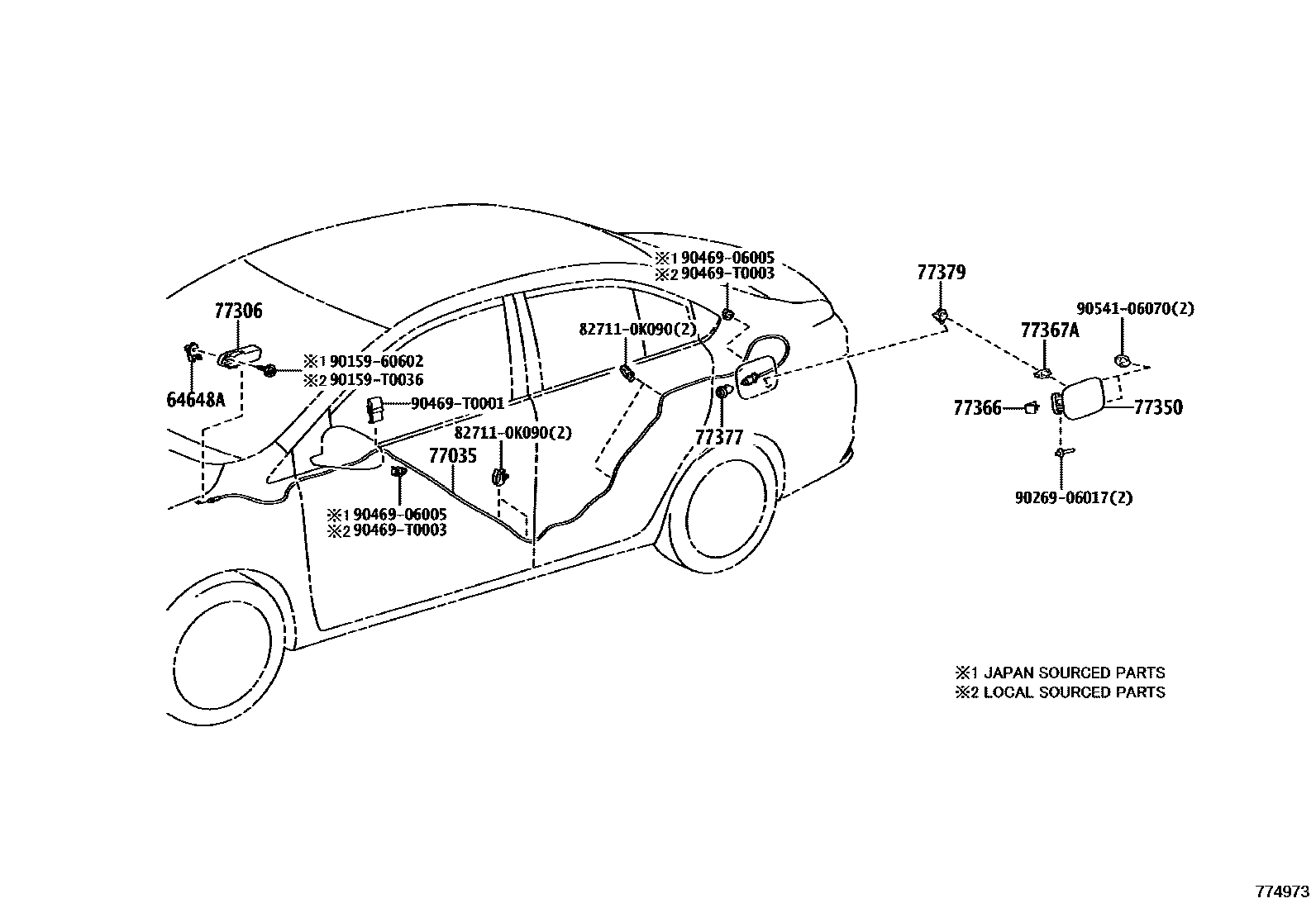

Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 3 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0Y030 |
| 23221 | fuel pump | 23221-0Y040 |
| 23225A | fuel pump septum | 23225-0Y010 |
| 23280J | Fuel pressure regulator assembly | 23280-22010 |
| 64648A | Trunk door lock opener seal | 64648-0D020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0D350 |
| 77028F | No. 2 fuel drain pipe sub-assembly | 77028-0D100 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0D550 |
| 77100 | fuel tank assembly | 77001-0D360 |
| 77144 | Fuel pump instrument fixture | 77144-0D050 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0D110 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0D110 |
| 77175 | No. 2 oil suction pipe bracket | 77175-0D080 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0D210 |
| 77215 | Fuel tank filler pipe flange piece | 77219-0D080 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-0D230 |
| 77216B | No. 2 fuel tank filler pipe bracket | 77216-0D240 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-0D200 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-0D060 |
| 77226A | No. 6 fuel tank breather pipe | 77226-0D140 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77251B | main fuel pipe | 77251-0D570 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0D510 |
| 77266A | No. 1 fuel line protection device | 77266-0D130 |
| 77285D | No. 1 fuel pipe clamp | 77285-0D190 |
| 77286D | No. 2 fuel pipe clamp | 77286-0D210 |
| 77289B | No. 3 fuel pipe clamp | 77289-0D090 |
| 77291A | Fuel tank filler pipe cover | 77291-0D260 |
| 77298C | No. 4 fuel pipe clamp | 77298-0D180 |
| 77299A | No. 5 fuel pipe clamp | 77299-0D160 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-0D140 |
| 77310A | Fuel tank cap assembly | 77300-0K010 |
| 77316 | fuel tank cap gasket | 77316-0K020 |
| 77350 | Fuel filler cap assembly | 77350-0D240 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 |
| 77367A | No. 1 fuel filler cap pin clip | 77367-0D040 |
| 77377 | Fuel filler cap lock retainer | 77377-0D080 |
| 77379 | No. 2 fuel inlet cap gasket | 77379-0D050 |
| 77391A | fuel inlet ring | 77391-02020 |
| 77641A | No. 1 fuel tank protective shell | 77606-0D120 |
| 77645A | Fuel tank protective shell fixings | 77645-0D040 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 77701-0D140 |
| 77704 | Carbon canister sub-assembly | 77704-0D110 |
| 77785 | fuel pump wiring harness | 77785-0D130 |
