Toyota YARIS 侧防护条 — Figure 7503

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 13 PNC and OE references.

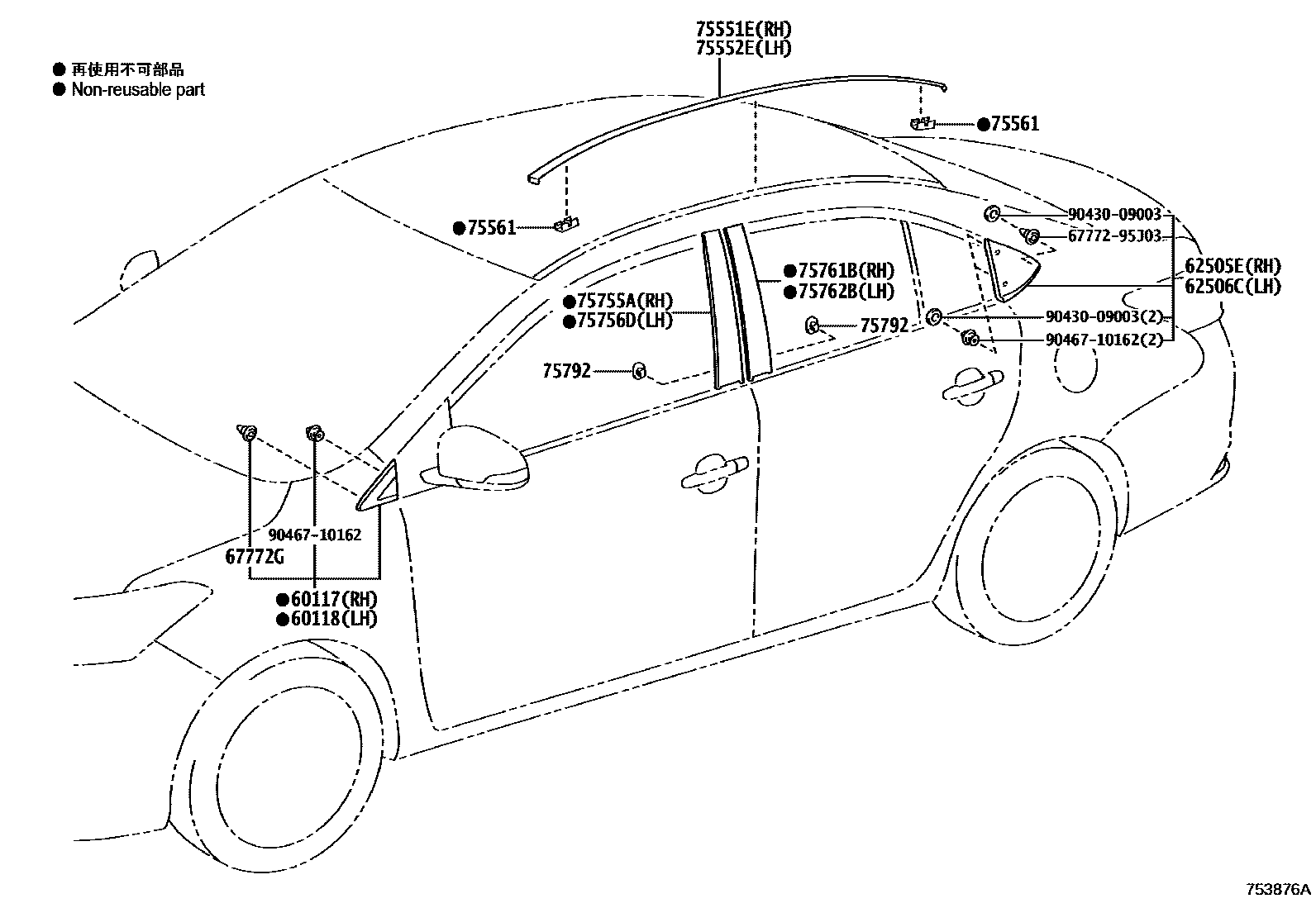

Toyota YARIS 侧防护条 EPC diagram — 753876A
侧防护条 — 753876A (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-0D270
60118Left front pillar upper cover sub-assembly60118-0D270
62505ERight corner window pillar cover sub-assembly62505-0D140
62506CLeft corner window pillar cover sub-assembly62506-0D140
67772Gfront pillar cover67772-95J03
75551EDrainage groove side decorative strip on the right side of the roof75551-0D310
75552EDrainage groove side decorative strip on the left side of the roof75552-0D270
75561No. 1 roof drain channel side decorative strip clip75561-33030
75755AFront door window frame protection strip (right center pillar)75755-0D090
75756DFront door window frame protection strip (left center pillar)75756-0D090
75761BRear door window frame protection strip (right center pillar)75761-0D080
75762BRear door window frame protection strip (left center pillar)75762-0D080
75792Car door window frame protective strip clip75792-47010
