Toyota YARIS 扶手和遮阳板 — Figure 7401

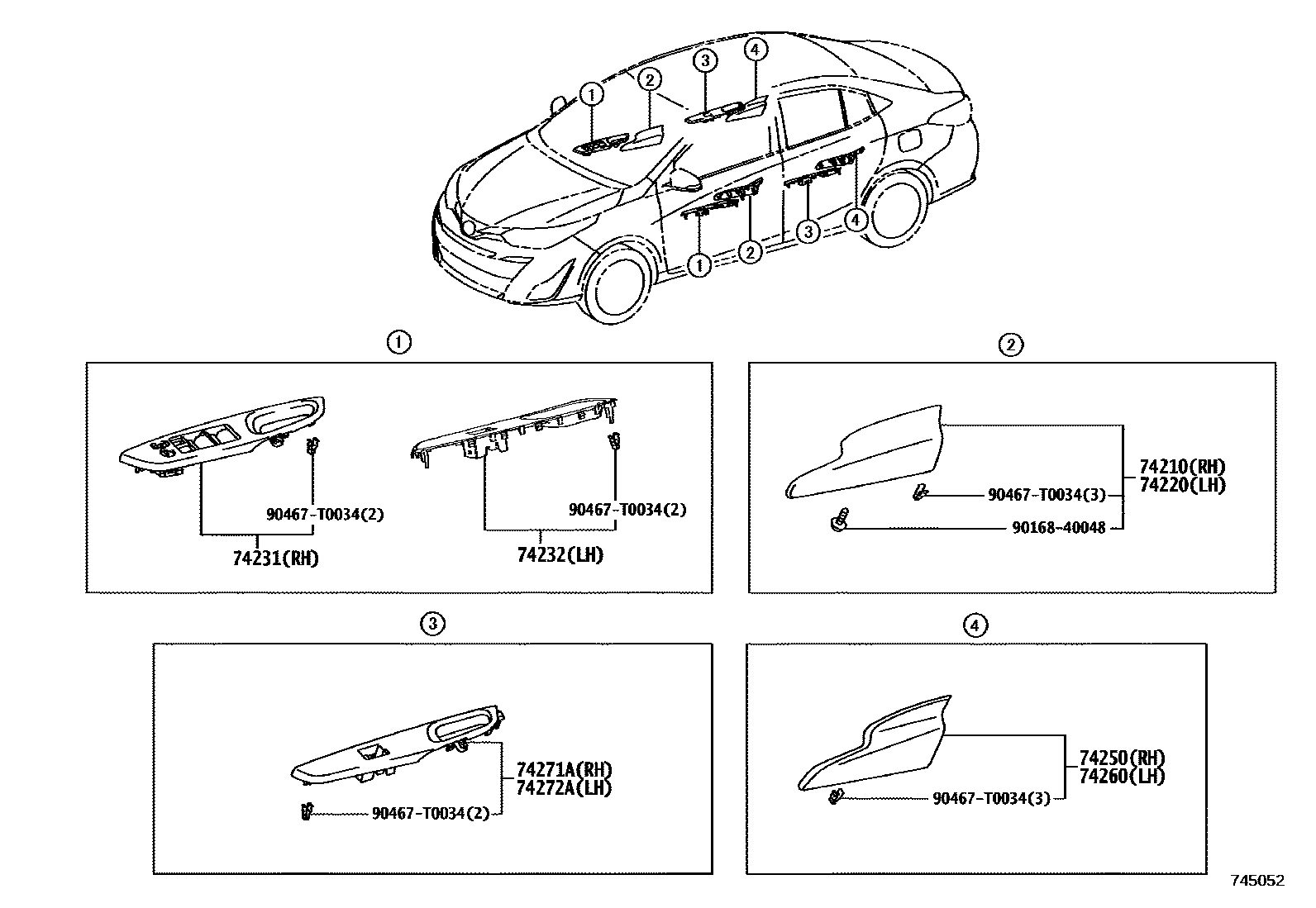

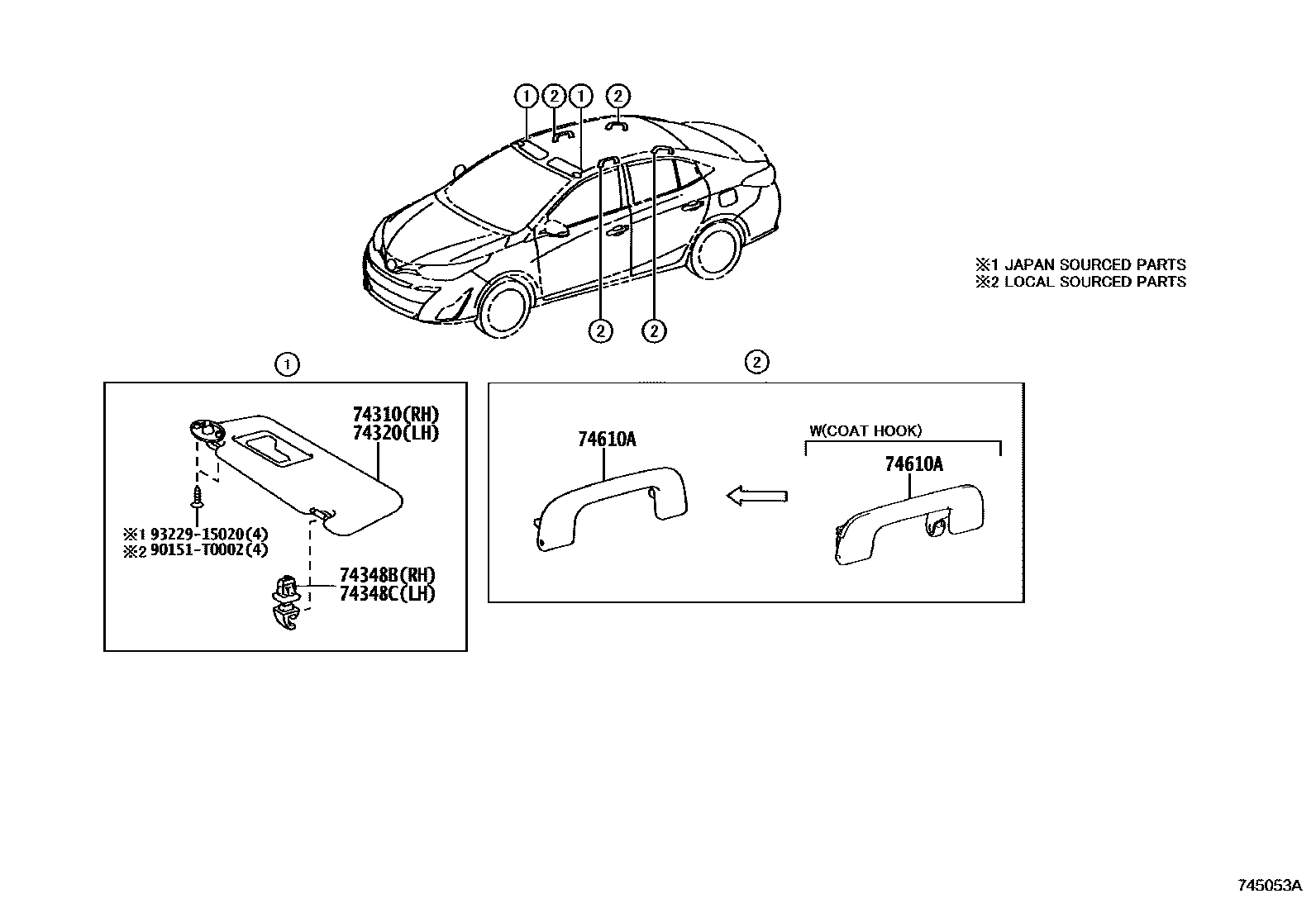

Toyota YARIS EPC diagram 7401, 扶手和遮阳板, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0DC10 · 74231-0DC20 |
| 74232 | Left front armrest upper panel | 74232-0DC50 · 74232-0DC60 |
| 74271A | Right rear door armrest upper panel | 74271-0D620 · 74271-0D630 |
| 74272A | Left rear door armrest upper panel | 74272-0D620 · 74272-0D630 |
