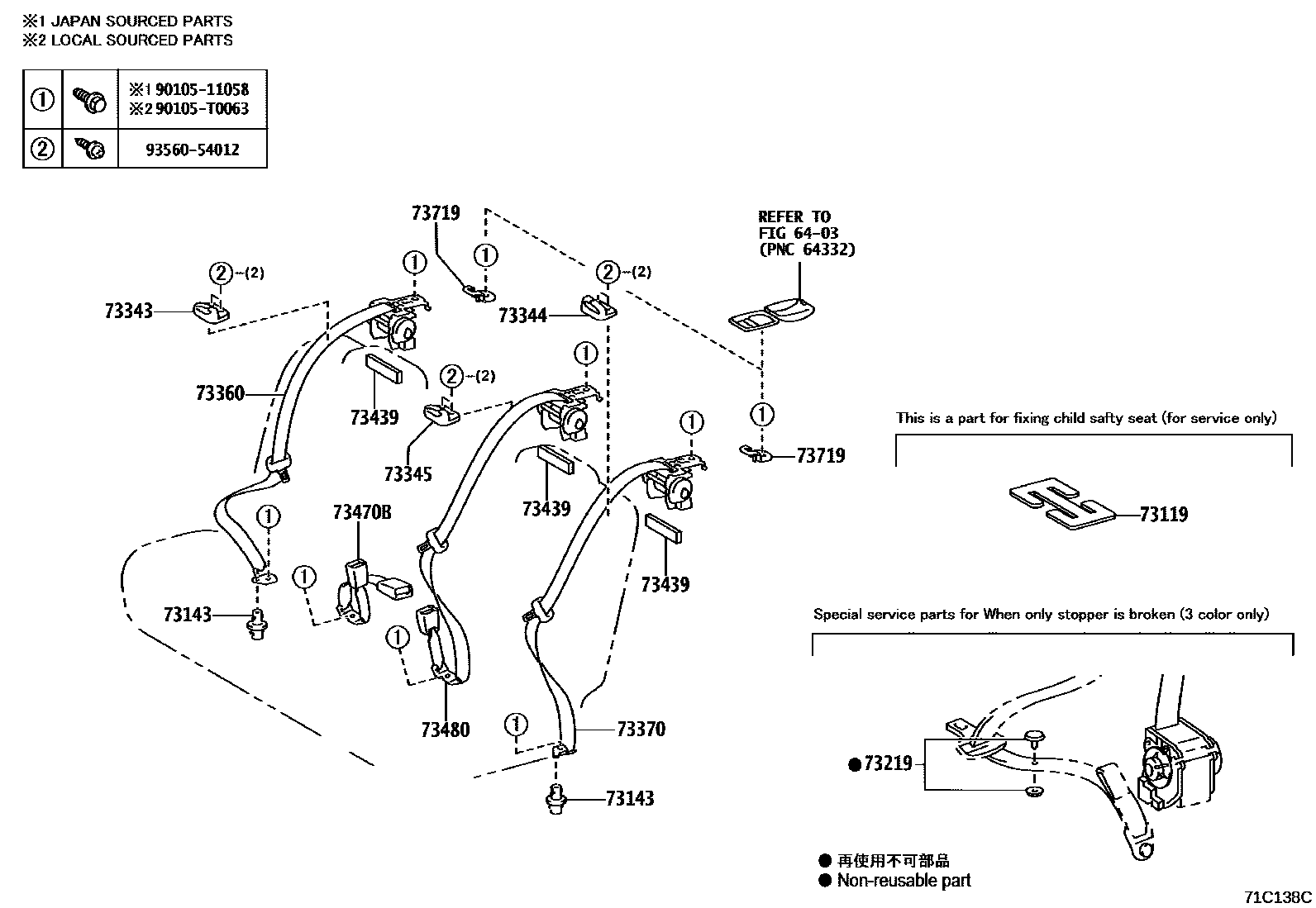

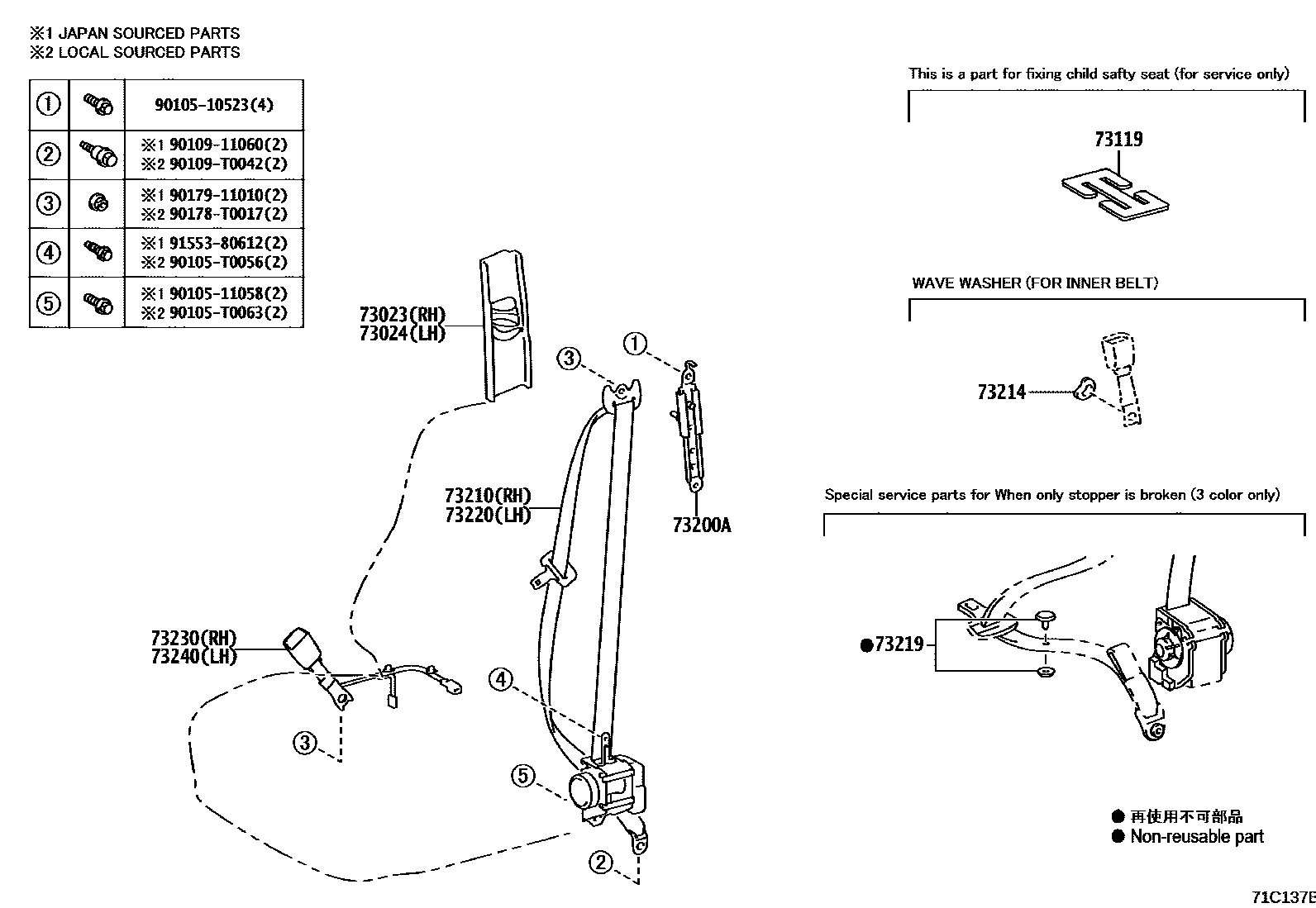

Toyota YARIS 安全带和儿童保护座椅 — Figure 7104
Toyota YARIS EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73119 | seat belt clip | 73119-22010 |
| 73143 | seat belt hole seal | 73143-0D020 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-02140 |
| 73214 | Front seat belt anchor plate | 73214-0K010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73439 | Rear seat belt retractor cushion | 73439-0D070 |
| 73719 | Child restraint seat tether anchor bracket | 73719-0D080 |
