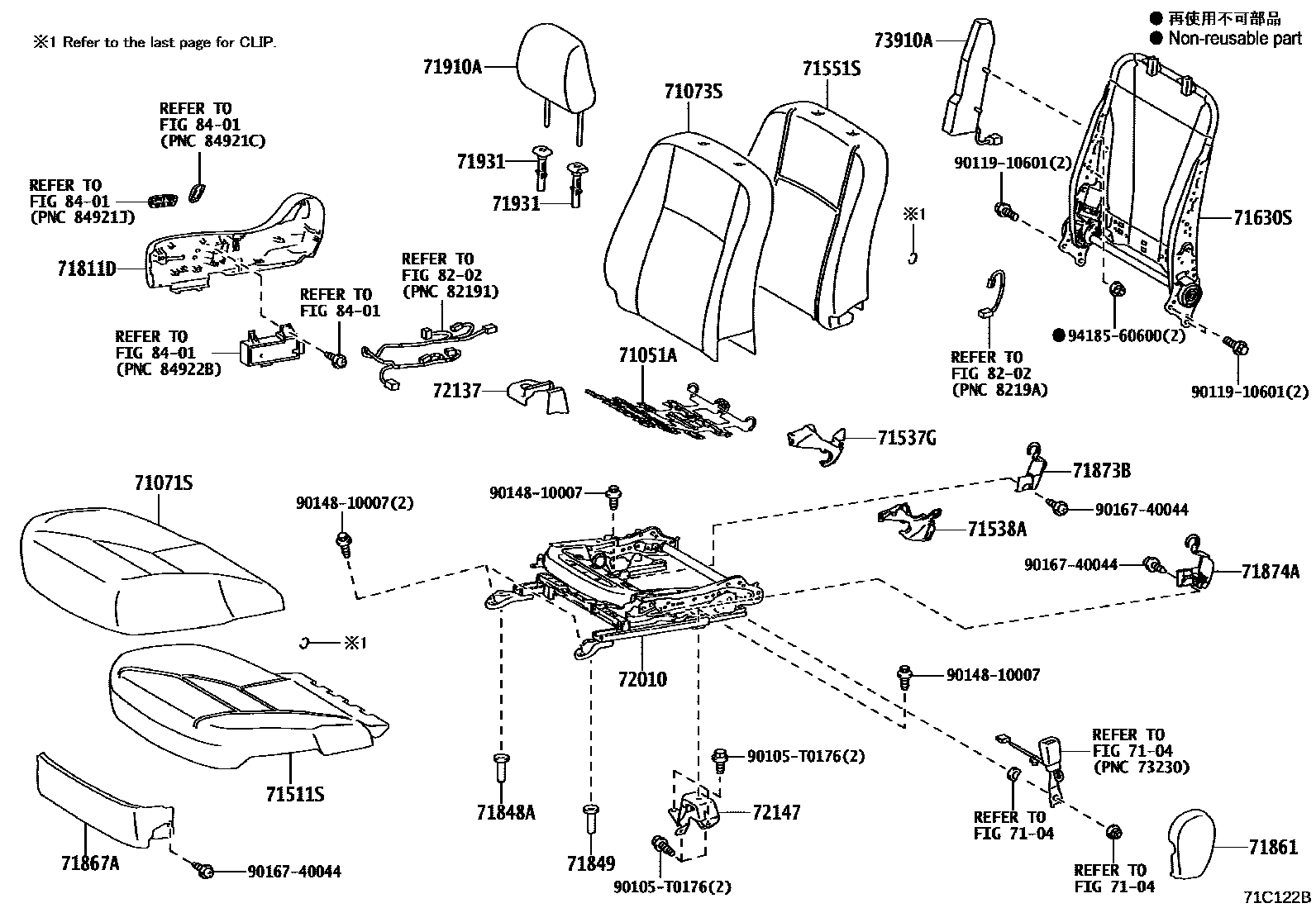

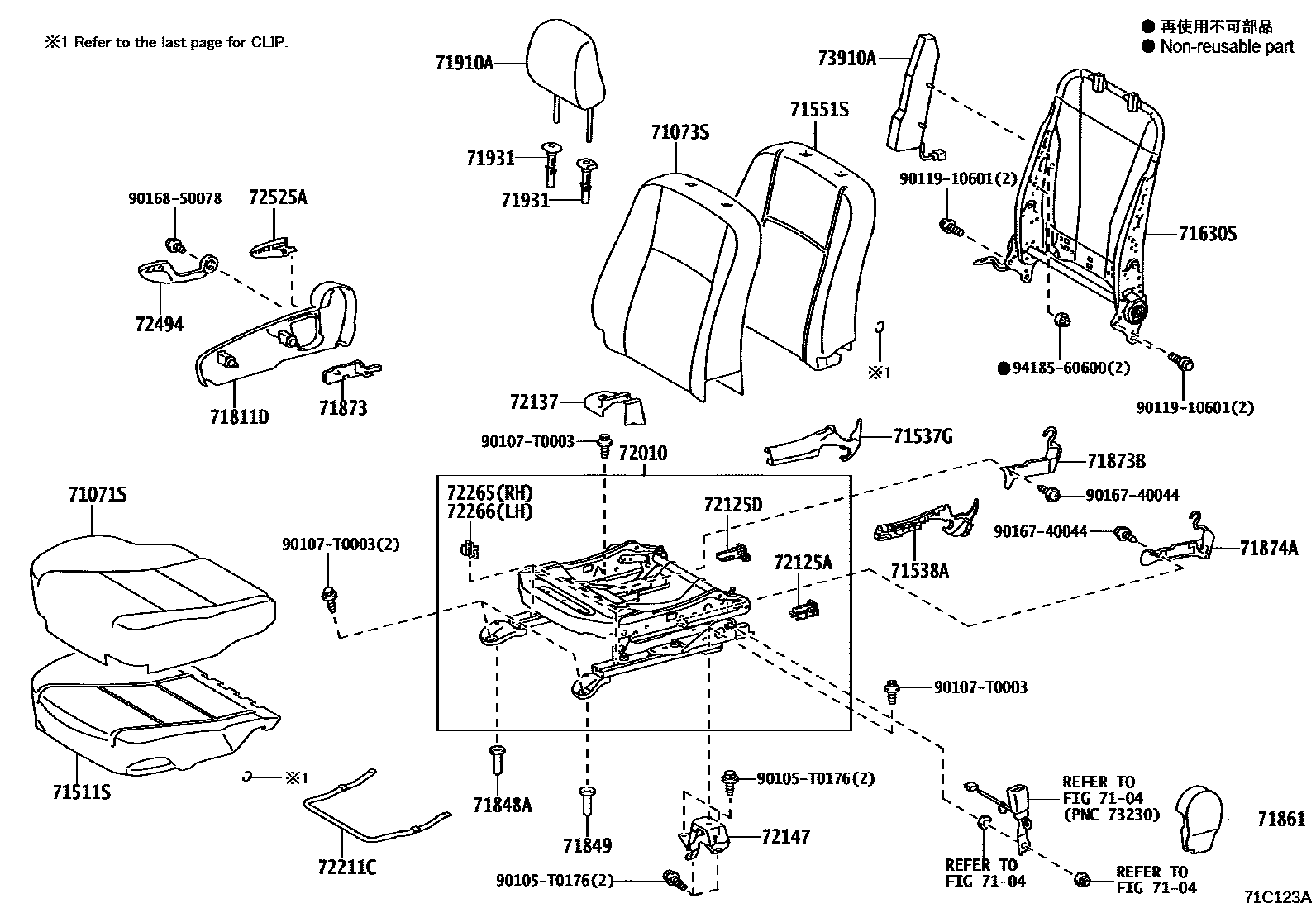

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051A | Front right seat cushion spring sub-assembly | 71051-0D140 |
| 71122 | Front left seat cushion bracket | 71122-0D040 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-0D610 · 71511-0D770 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-0D130 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0D760 · 71551-0D840 · 71551-0D890 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0D700 · 71552-0D840 |
| 71630S | Front right seat back spring assembly (for split seats) | 71013-0D320 · 71630-0D370 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0D350 |
| 71848A | Right seat adjuster cover | 71848-0D120 |
| 71849 | left seat adjuster cover | 71849-0D010 |
| 71873B | Front right seat No. 1 seat cushion lower guard panel | 71873-02190 · 71873-02200 |
| 71874A | Front left seat cushion lower guard | 71874-02180 · 71874-02190 |
| 72010 | Front right seat adjuster assembly | 72010-0D660 · 72010-0D690 |
| 72020 | Front left seat adjuster assembly | 72020-0D640 |
| 72125A | Rear seat upper slide rail cover | 72125-0D060 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-0D100 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-0D080 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-0D090 |
| 72211C | Seat slide adjustment handle | 72211-02150 |
| 72265 | Right seat rail upper rail cover | 72265-0D110 |
| 72266 | Left seat rail upper rail cover | 72265-0D110 |
| 73910A | Front right seat airbag assembly | 73910-0D130 · 73910-0D140 |
| 73920A | Front left seat airbag assembly | 73920-0D130 |
