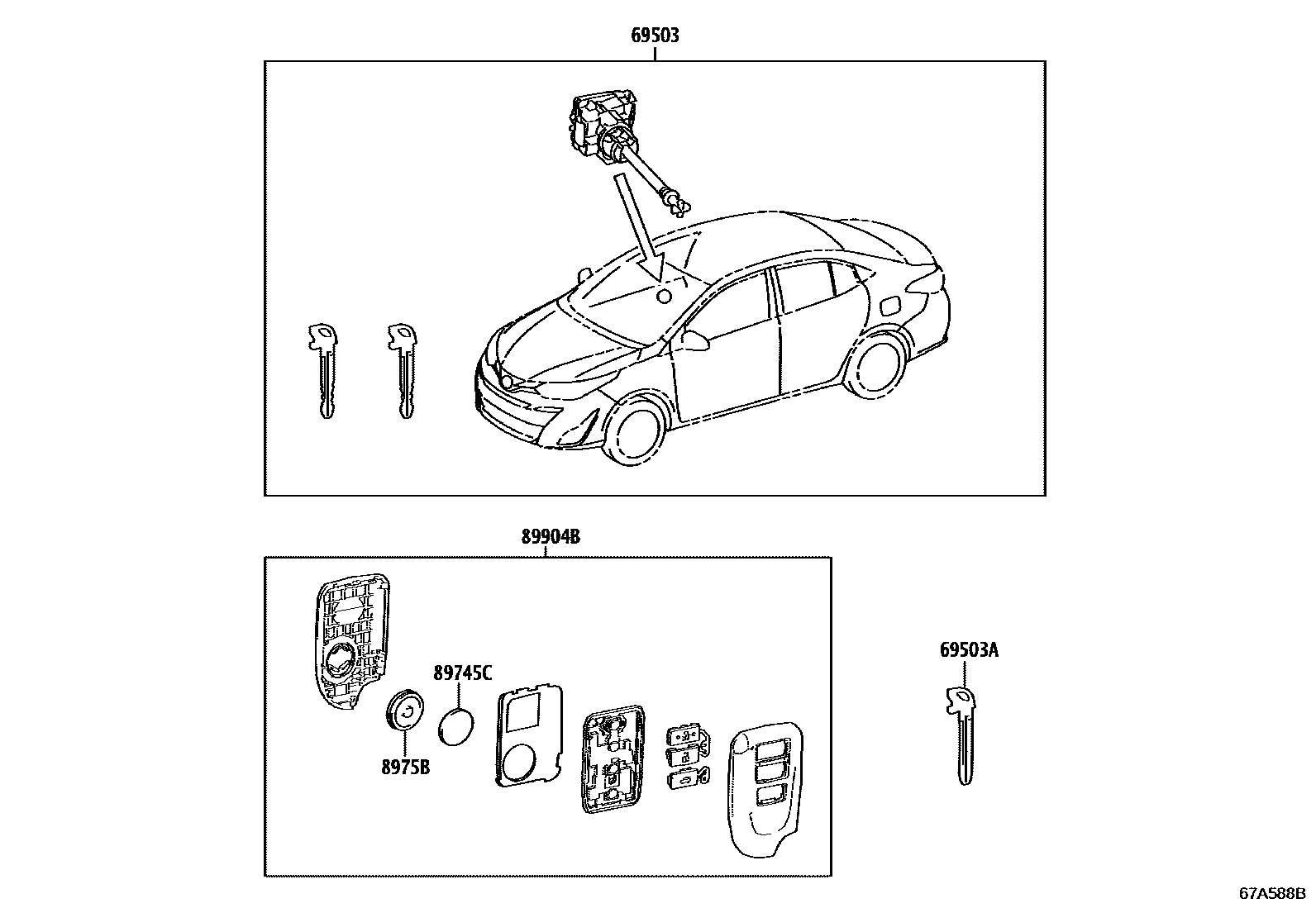

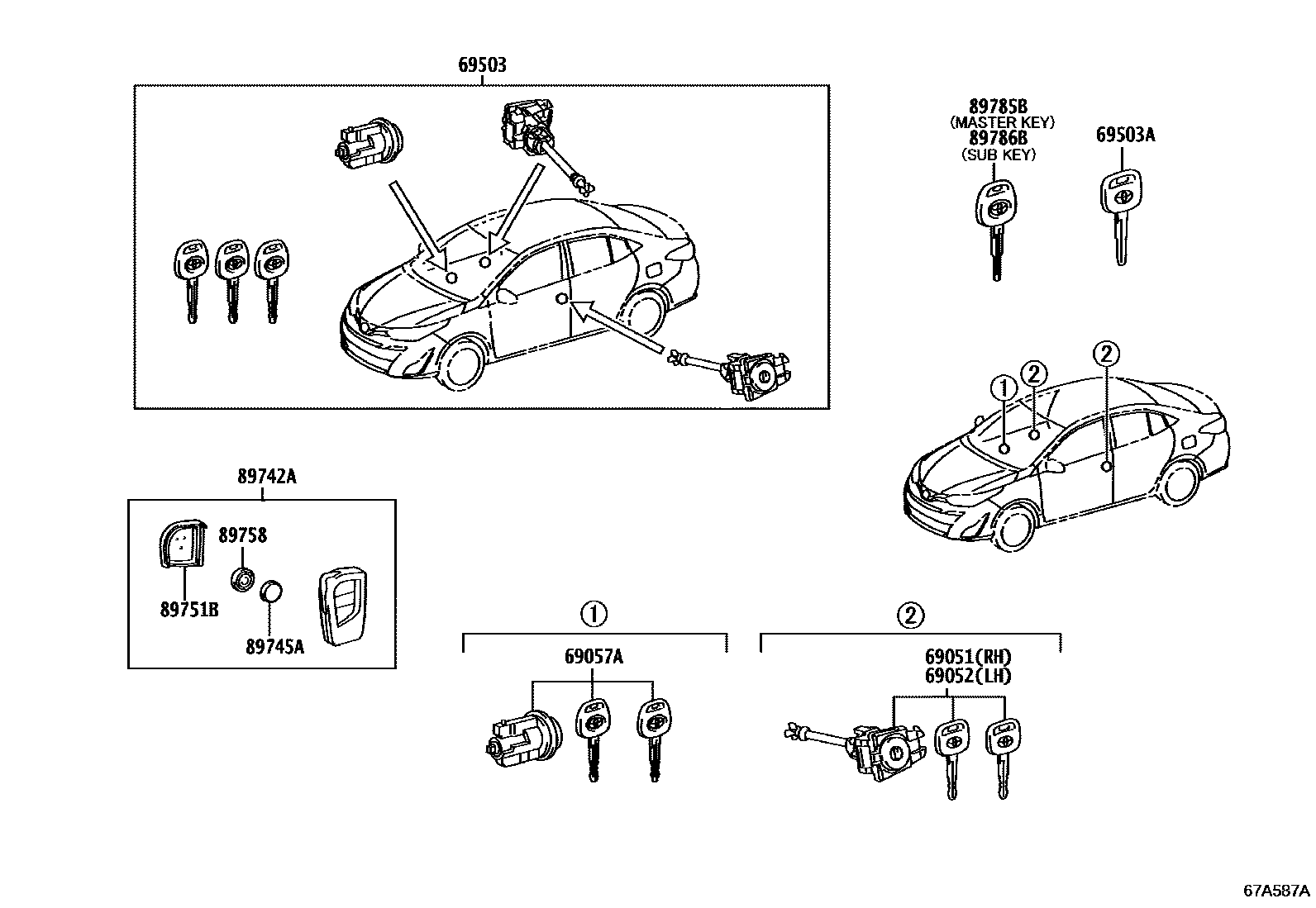

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0D400 |
| 69052 | Left door lock cylinder and key assembly | 69052-0D410 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0K170 |
| 69503 | Door lock cylinder components | 69005-0DK90 · 69005-0DL00 |
| 69503A | external tooth key | 69515-52180 · 90999-00199 |
| 89742A | remote key | 89742-0D041 |
| 89745A | Transmitter battery | 89745-02060 |
| 89745C | Transmitter battery | 89745-0K010 |
| 89751B | Transmitter housing cover | 89751-0D111 |
| 89758 | Remote key seal | 89758-02030 |
| 8975B | Remote control battery case cover | 8975B-0D010 |
| 89785B | transceiver key master transmitter | 89785-0K020 |
| 89786B | transceiver key secondary transmitter | 89786-0K020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0D280 |
