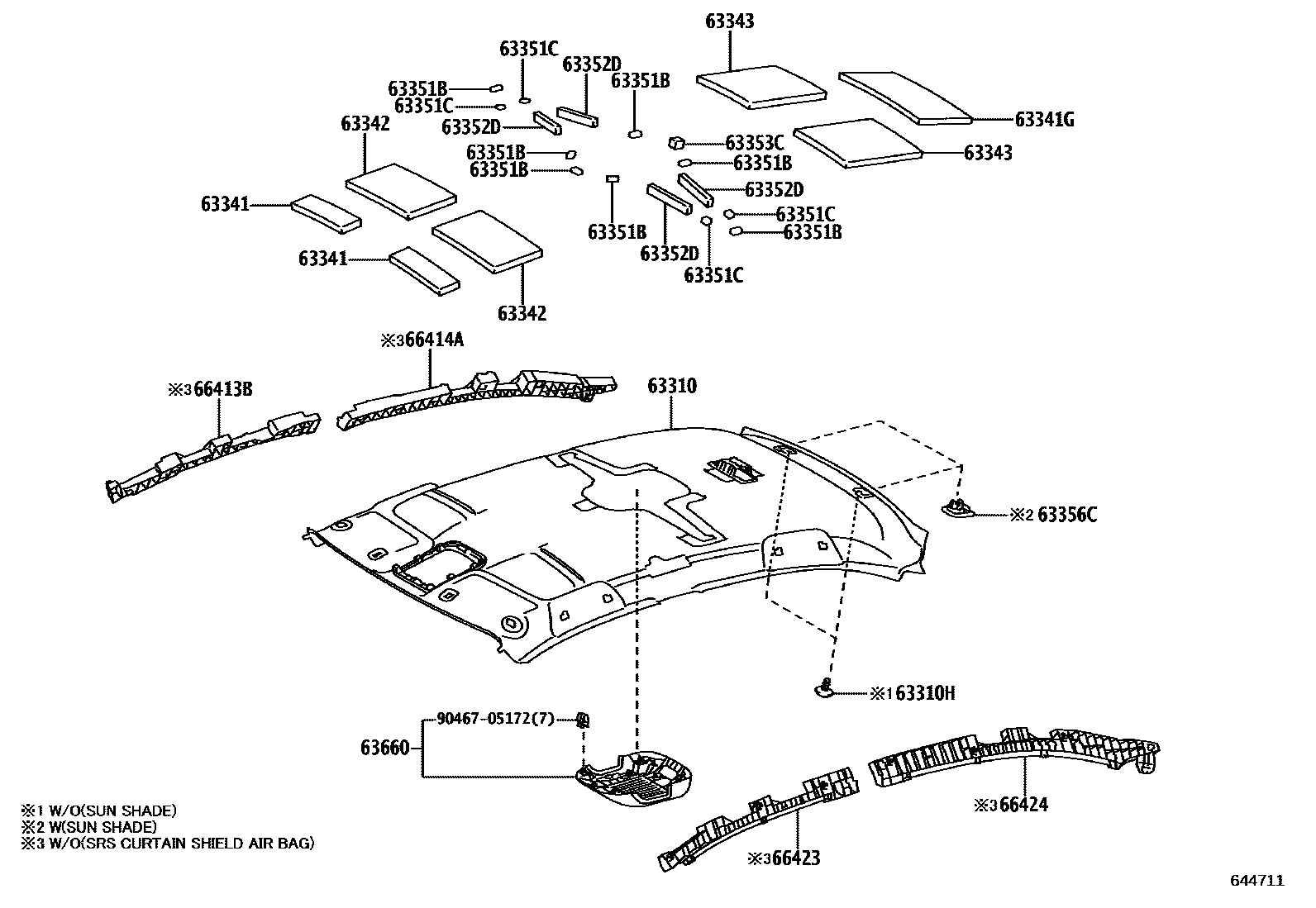

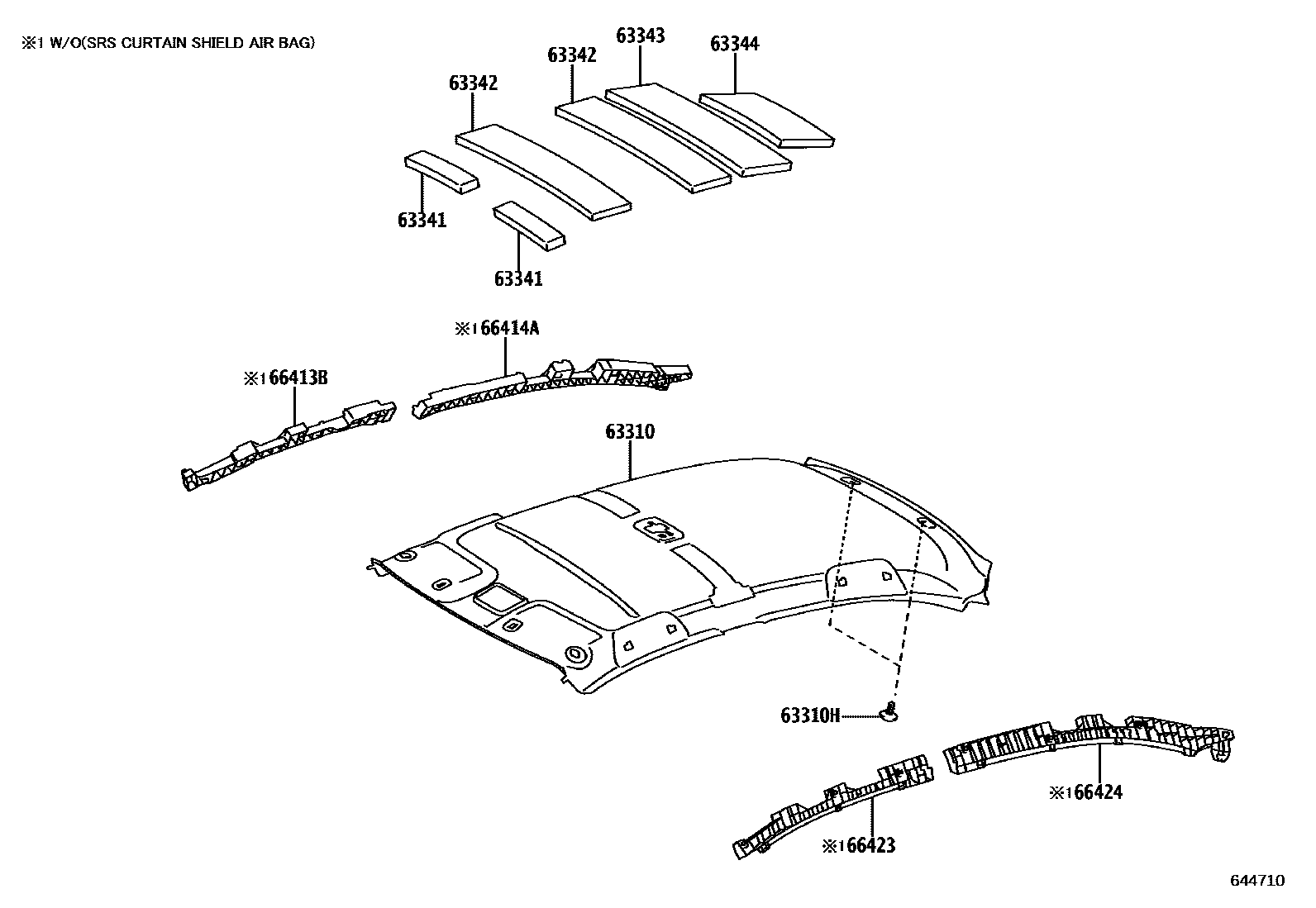

Toyota YARIS 车顶内衬和消声垫 — Figure 6402
Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-0D750 |
| 63341G | roof muffler mat | 63341-0D560 |
| 63342 | No. 2 roof muffler pad | 63341-0D720 · 63341-0D770 |
| 63343 | No. 3 roof muffler pad | 63341-0D760 · 63341-0D780 |
| 63344 | No. 4 roof silencer mat | 63341-0D560 |
| 63351B | roof lining pads | 63351-0D070 |
| 63351C | roof lining pads | 63351-0D080 |
| 63352D | No. 2 roof lining lining block | 63351-0D090 |
| 63353C | Center roof lining lining | 63351-0D100 |
| 66413B | Right front longitudinal member spacer | 66413-0D390 |
| 66414A | Right rear longitudinal member spacer | 66414-0D390 |
| 66423 | Left front longitudinal member spacer | 66423-0D350 |
| 66424 | Left rear longitudinal member spacer | 66424-0D390 |
