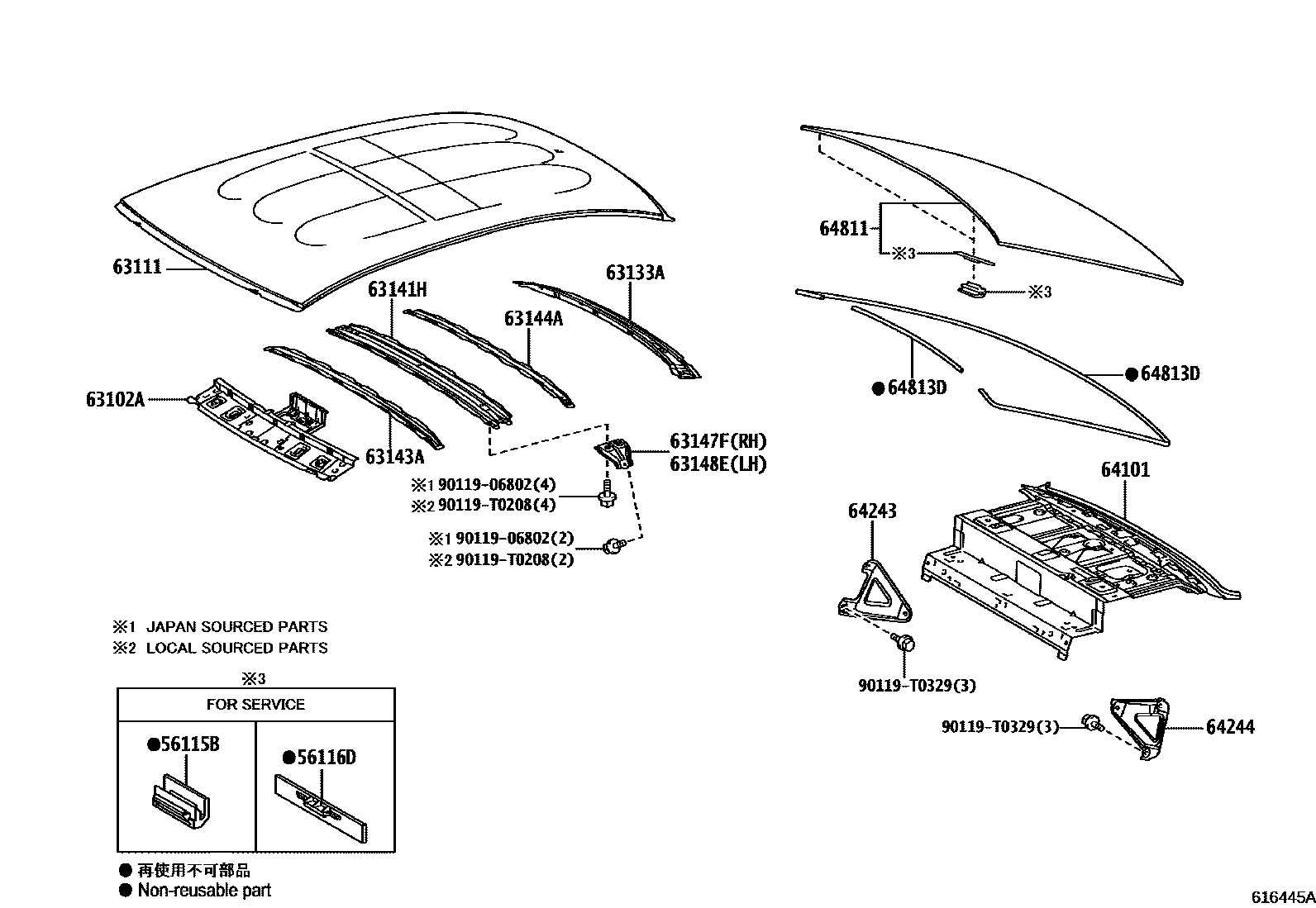

Toyota YARIS 天窗板和背窗玻璃 — Figure 6104
Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-0D250 · 63102-0D270 |
| 63111 | roof panel | 63111-K0100 |
| 63133A | upper frame of back window | 63133-0D160 |
| 63141H | Center roof panel reinforcement | 63141-0D250 |
| 63143A | Roof panel reinforcement | 63143-0D230 |
| 63144A | No. 4 roof panel reinforcement | 63144-0D210 |
| 63147F | Right roof panel reinforcement bracket | 63147-0D140 |
| 63148E | Left roof panel reinforcement bracket | 63147-0D140 |
| 64101 | Upper back panel sub-assembly | 64101-0D240 |
| 64243 | No. 2 right compartment partition | 64243-0D040 |
| 64244 | No. 2 left compartment partition | 64244-0D040 |
| 64811 | back window glass | 64801-0D290 · 64801-0D300 |
| 64813D | Back window glass adhesive seal | 64813-0D500 · 64814-0D270 |
