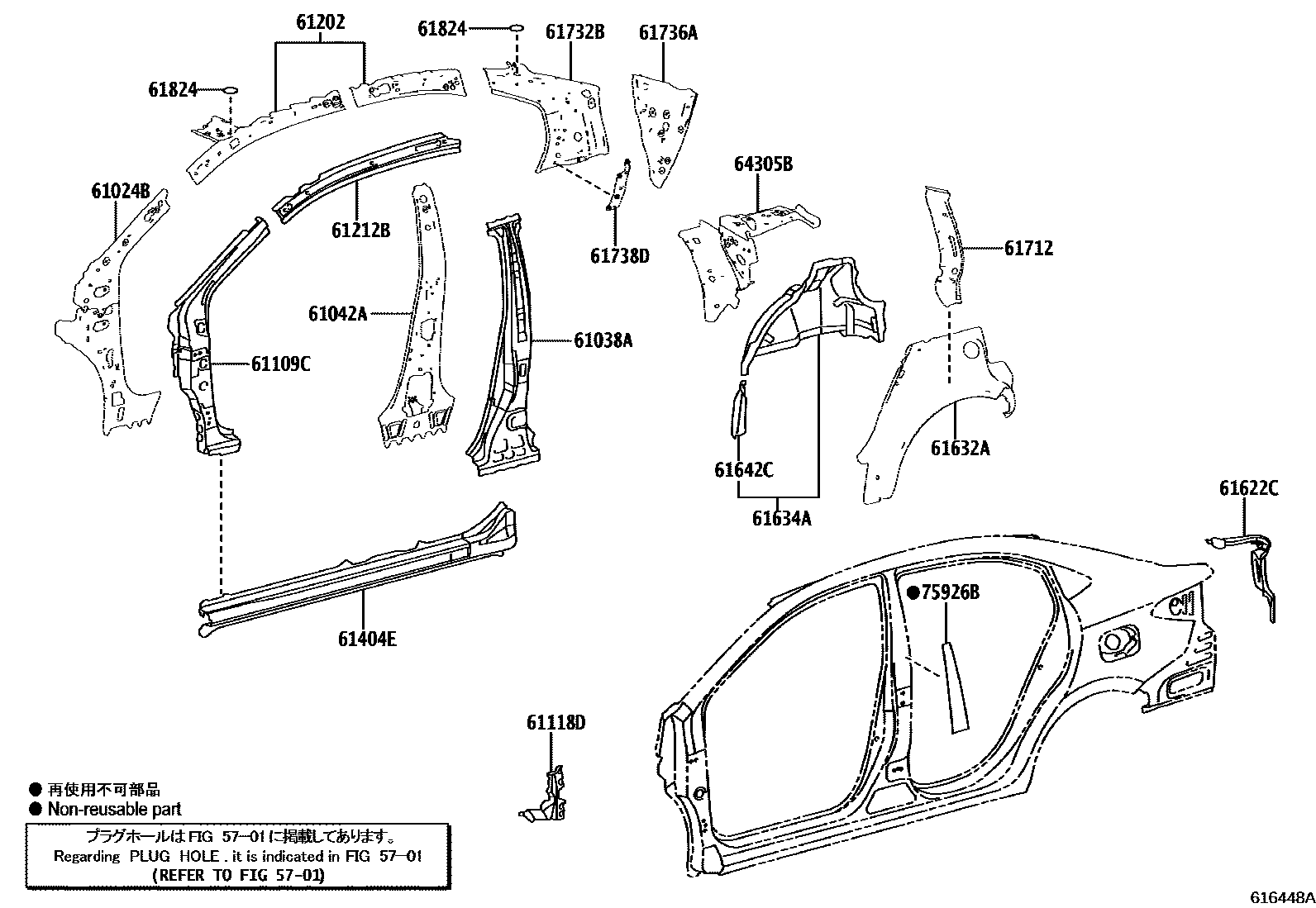

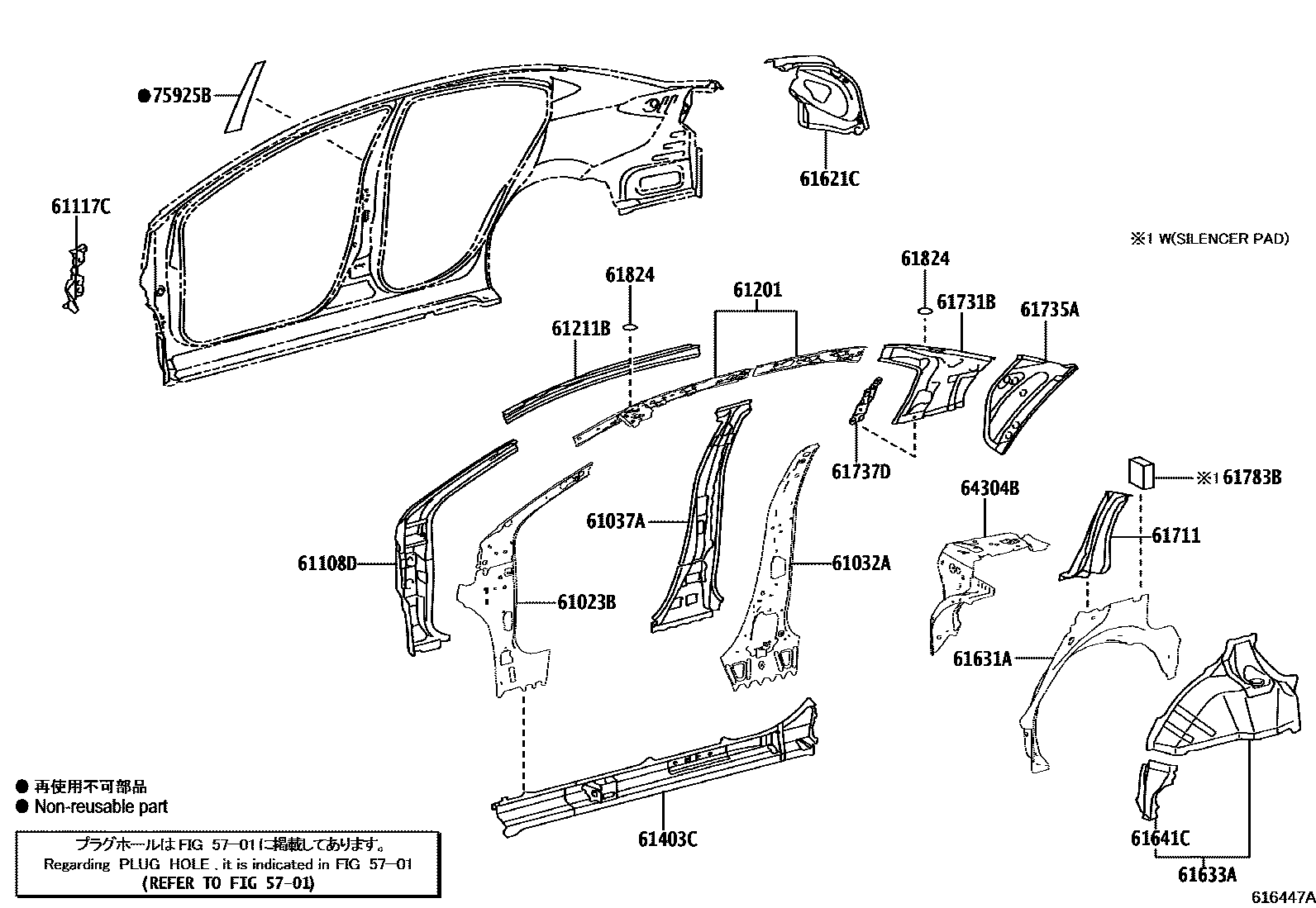

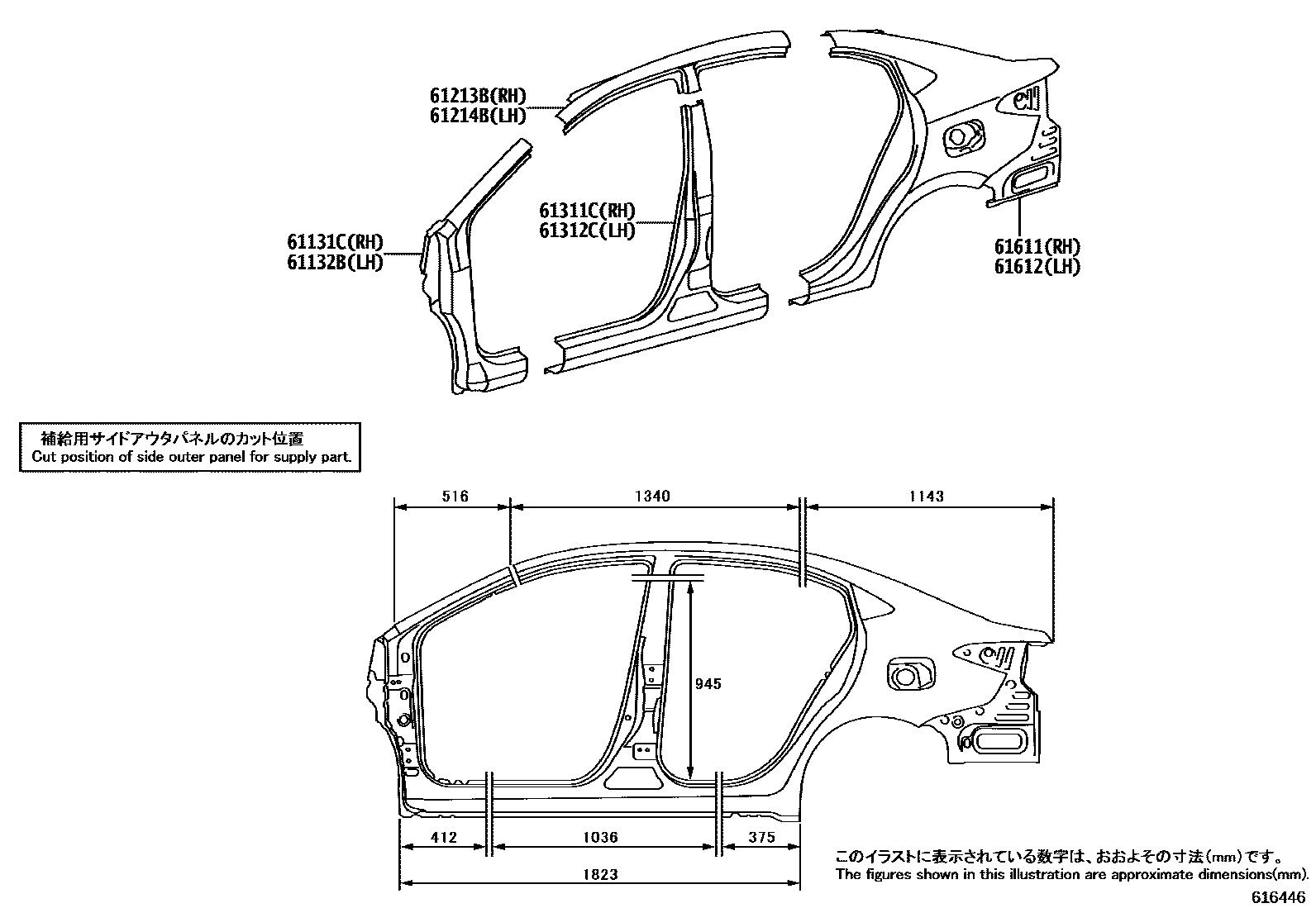

Toyota YARIS 侧梁 — Figure 6101
Toyota YARIS EPC diagram 6101, 侧梁, with 3 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61023B | Right body inner front pillar sub-assembly | 61023-0D310 |
| 61024B | Left body inner front pillar sub-assembly | 61024-0D310 |
| 61032A | No. 1 right inner column sub-assembly | 61032-0D250 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-0D919 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-0D918 |
| 61042A | No. 1 left inner column sub-assembly | 61042-0D260 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-0D210 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-0D210 |
| 61117C | Side panel to right front quarter panel | 61117-0D090 |
| 61118D | Side panel to left front quarter panel | 61118-0D100 |
| 61131C | Right body outer front pillar | 61131-0D200 |
| 61132B | Left body outer front pillar | 61132-0D200 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-0D250 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-0D250 |
| 61211B | Right rear roof outer longitudinal beam | 61211-0D290 |
| 61212B | Left rear roof rail | 61212-0D280 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-0D100 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-0D100 |
| 61311C | Right rear body front outer panel | 61311-0D130 |
| 61312C | Left rear body front outer panel | 61312-0D130 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-0D330 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-0D330 |
| 61611 | Right side hoarding | 61601-0D430 |
| 61612 | left side panel | 61602-0D450 |
| 61621C | Luggage right opening slot | 61063-0D130 |
| 61622C | Luggage trunk left opening slot | 61064-0D130 |
| 61631A | Right wheel cover outer panel | 61631-K0010 |
| 61632A | Left side wheel cover outer panel | 61632-K0010 |
| 61633A | Right wheel housing lining panel | 61605-0D120 |
| 61634A | Left side wheel housing lining panel | 61606-0D120 |
| 61641C | Right front side wheel housing corner panel | 61641-0D130 |
| 61642C | Left front side wheel housing corner panel | 61642-0D130 |
| 61711 | Roof right side outer panel | 61711-K0030 |
| 61712 | Roof left outer panel | 61712-K0030 |
| 61731B | Roof right inner panel | 61731-K0060 |
| 61732B | Roof left inner panel | 61732-K0060 |
| 61735A | Right rear roof inner panel | 61735-K0020 |
| 61736A | Left rear roof inner panel | 61736-K0020 |
| 61737D | Roof right inner reinforcement | 61737-0D160 |
| 61738D | Roof left inner reinforcement | 61738-0D160 |
| 61783B | No. 1 rear fender outer panel pad | 61783-0D150 |
| 61824 | Noise Control Panel No. 1 | 61824-0D120 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-0D210 · 64304-0D211 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-0D210 · 64305-0D211 |
| 75925B | No. 3 right side light-blocking film | 75925-0D130 |
| 75926B | No. 3 left shading film | 75926-0D130 |
