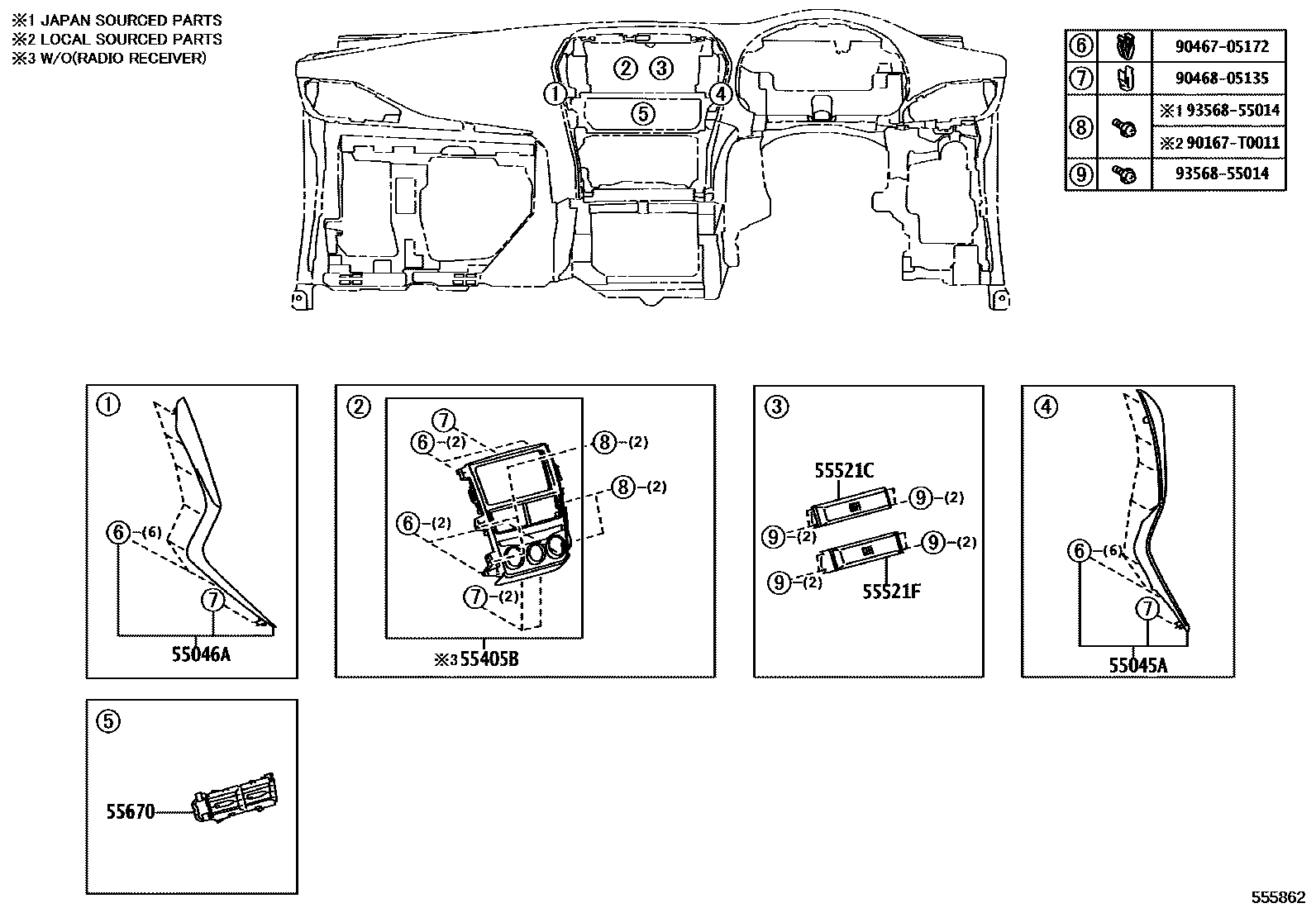

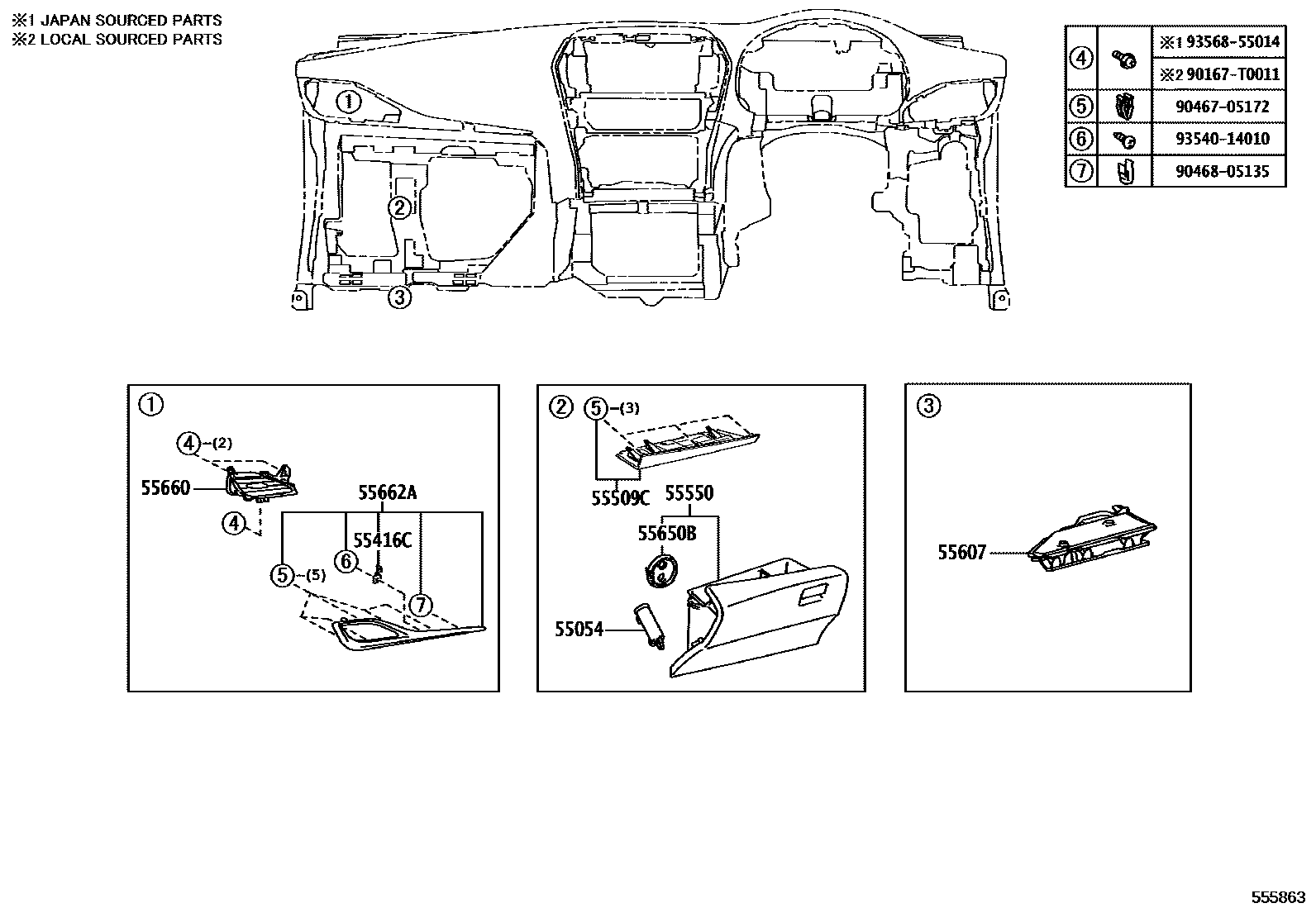

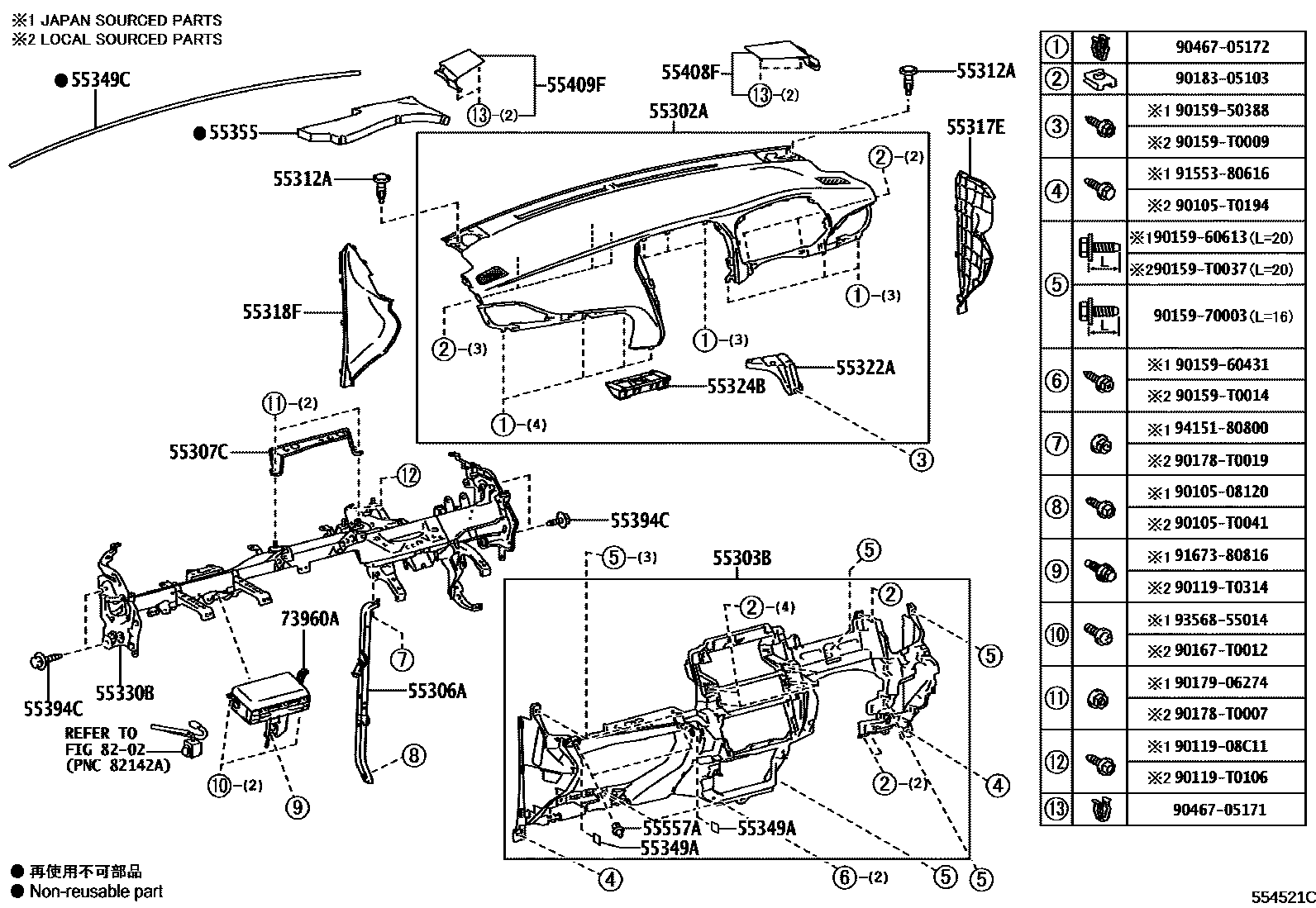

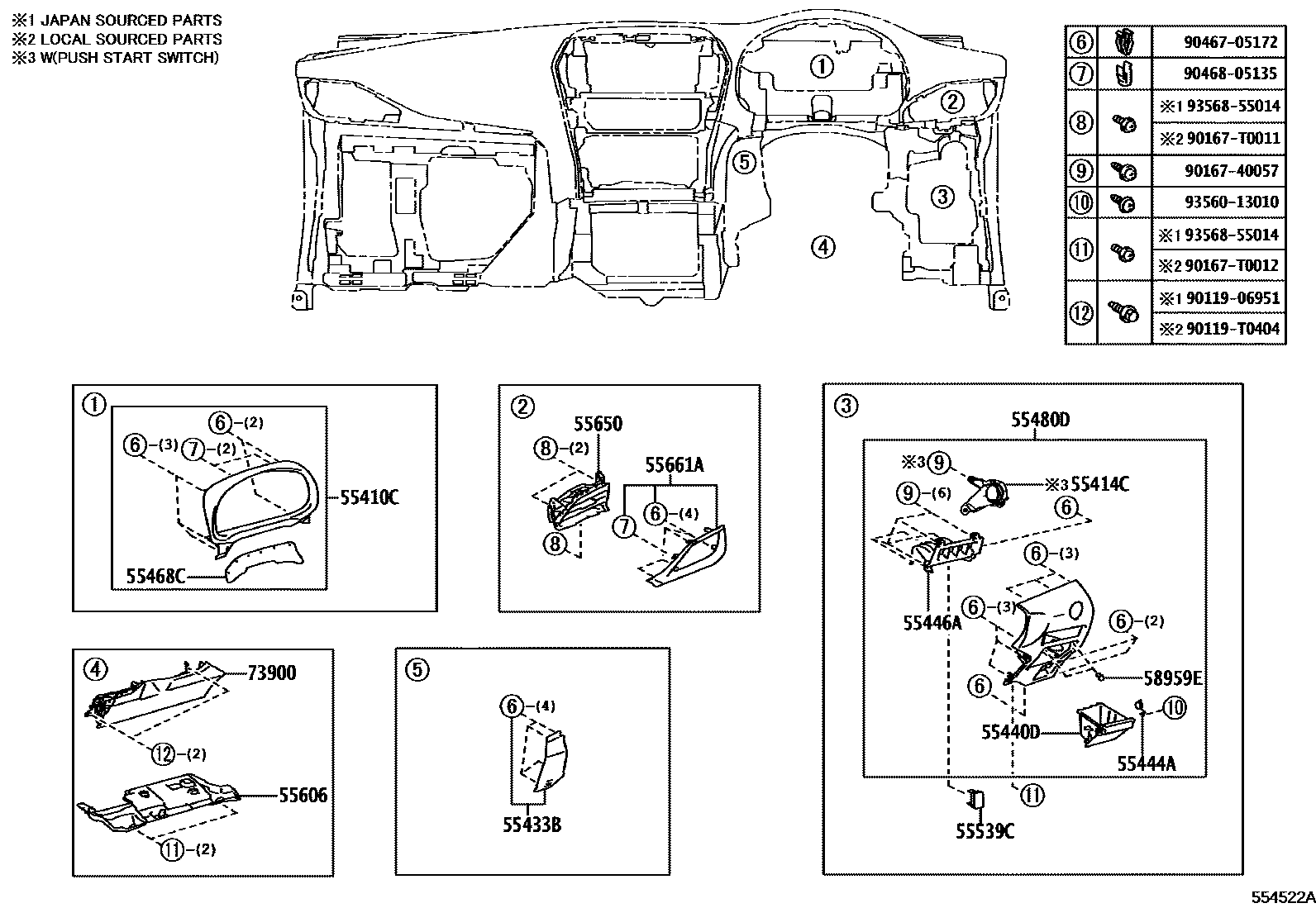

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55045A | Instrument panel lower right decorative panel sub-assembly | 55045-0D160 |
| 55046A | Instrument panel lower left decorative panel sub-assembly | 55046-0D140 |
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D430 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55308-0D140 |
| 55312A | Dashboard clip | 52161-0K040 · 52161-16010 |
| 55322A | Instrument panel bracket No. 2 | 55322-0D280 |
| 55324B | Instrument panel bracket No. 4 | 55324-0D280 |
| 55330B | Instrument panel reinforcement assembly | 55330-0D820 |
| 55349A | Dashboard cushion | 55349-0D410 |
| 55349C | Dashboard cushion | 55349-0D290 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D440 |
| 55394C | Dashboard bolts | 55394-52010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-0DA80 |
| 55416C | Instrument cluster decorative panel fixings | 55416-0D200 |
| 55444A | Dashboard storage box spring | 55444-0D330 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-0D310 |
| 55509C | Glove box panel sub-assembly | 55509-0D010 |
| 55521C | stereo system hole cover | 55521-12190 |
| 55521F | Stereo system hole cover No. 2 | 55521-05030 |
| 55557A | Glove box cover limit pad | 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D240 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D250 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-0D690 |
| 55650B | Dashboard air register bezel | 55665-42010 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-0D540 |
| 55661A | Dashboard air register bezel | 55661-0D290 |
| 55662A | No. 2 air regulator frame on dashboard | 55662-0D190 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-0D410 · 55670-0D550 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0D200 |
