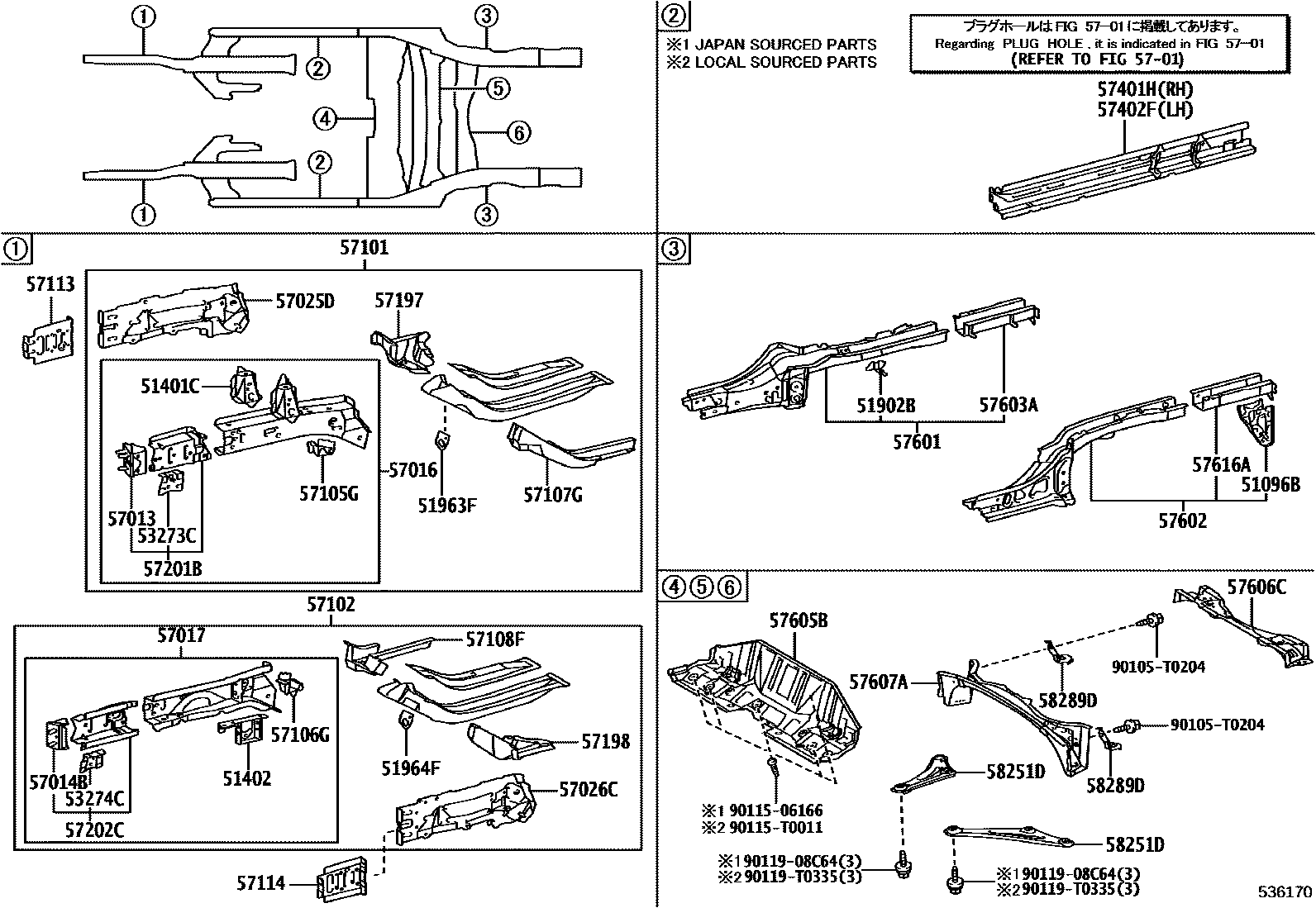

Toyota YARIS Floor stringers — Figure 5305
Toyota YARIS EPC diagram 5305, Floor stringers, with 1 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51096B | Left rear transport hook sub-assembly | 51096-0D080 |
| 51401C | Engine right front mounting bracket sub-assembly | 51401-0D050 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-0D040 |
| 51902B | No. 2 exhaust pipe hanger sub-assembly | 51902-0D060 |
| 51963F | transport hook | 51963-0D180 |
| 51964F | left transport hook | 51963-0D180 |
| 53273C | Radiator right side bracket reinforcement | 53273-0D140 |
| 53274C | Radiator left bracket reinforcement | 53274-0D090 |
| 57013 | Right front longitudinal beam bracket sub-assembly | 57013-0D100 |
| 57014B | Left front longitudinal beam bracket sub-assembly | 57014-0D091 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-0D170 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-0D270 |
| 57025D | Right front outer longitudinal beam sub-assembly | 57025-0D130 |
| 57026C | Left front outer longitudinal beam sub-assembly | 57026-0D130 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-0D250 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-0D320 |
| 57105G | Right front suspension cross member spacer sub-assembly | 57105-0D070 |
| 57106G | Suspension cross member left front spacer sub-assembly | 57106-0D050 |
| 57107G | Right front suspension cross member rear mounting bracket sub-assembly | 57107-0D110 |
| 57108F | Left front suspension cross member rear mounting bracket sub-assembly | 57108-0D090 |
| 57113 | Right front longitudinal beam extension | 57113-0D120 |
| 57114 | Left front longitudinal beam extension | 57114-0D120 |
| 57197 | Right front torsion box section piece | 57197-0D070 |
| 57198 | Left front anti-torsion box section piece | 57198-0D070 |
| 57201B | Right front longitudinal beam extension sub-assembly | 57201-0D060 |
| 57202C | Left front longitudinal beam extension sub-assembly | 57202-0D071 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-0D190 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-0D350 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-0D220 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-0D360 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-0D200 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-0D230 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-0D130 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-0D080 |
| 57616A | Rear floor left rear longitudinal member | 57616-0D160 |
| 58251D | front floor bracket | 58251-0D060 · 58252-0D130 |
| 58289D | Rear floor brake hose bracket | 58289-0D090 · 58299-0D090 |
