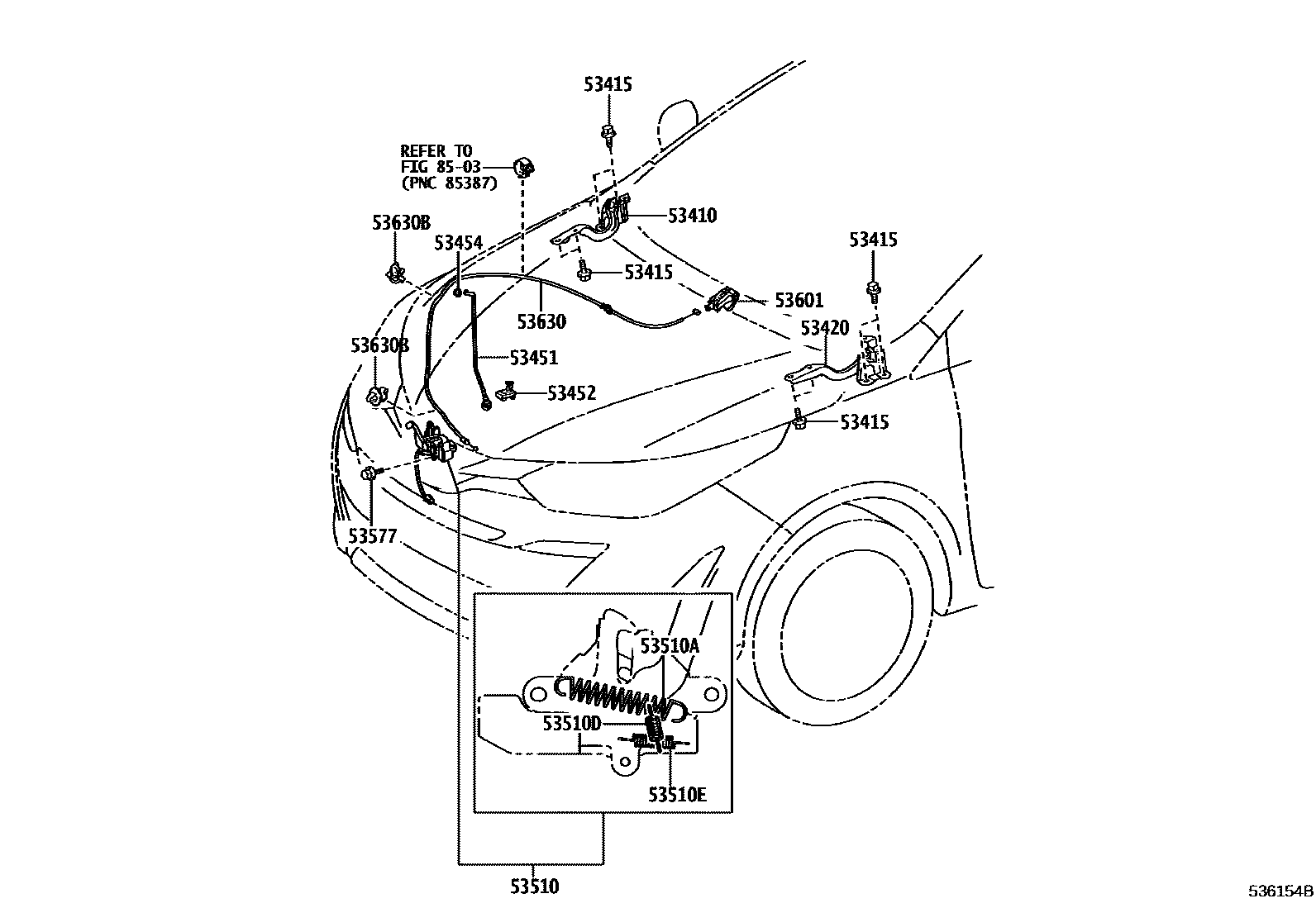

Toyota YARIS 发动机盖锁和铰链 — Figure 5303
Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0D760 |
| 53415 | Engine cover hinge bolts | 90105-T0120 |
| 53420 | Engine cover left hinge assembly | 53420-0D760 |
| 53451 | Engine cover support rod | 53440-0D260 |
| 53452 | Engine cover stay rod fixing | 53452-0D140 |
| 53454 | Engine cover support rod clip | 90480-15025 · 90480-T0009 |
| 53510 | Engine cover lock assembly | 53510-0D710 |
| 53510A | Tension spring (for hood lock) | 90506-16077 |
| 53510D | Tension spring (for hood lock) | 90506-T0004 |
| 53510E | Tension spring (for hood lock) | 90506-T0005 |
| 53577 | engine cover lock bolt | 90119-T0273 |
| 53630 | Engine hood lock control cable assembly | 53630-0D330 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 · 90469-T0003 |
