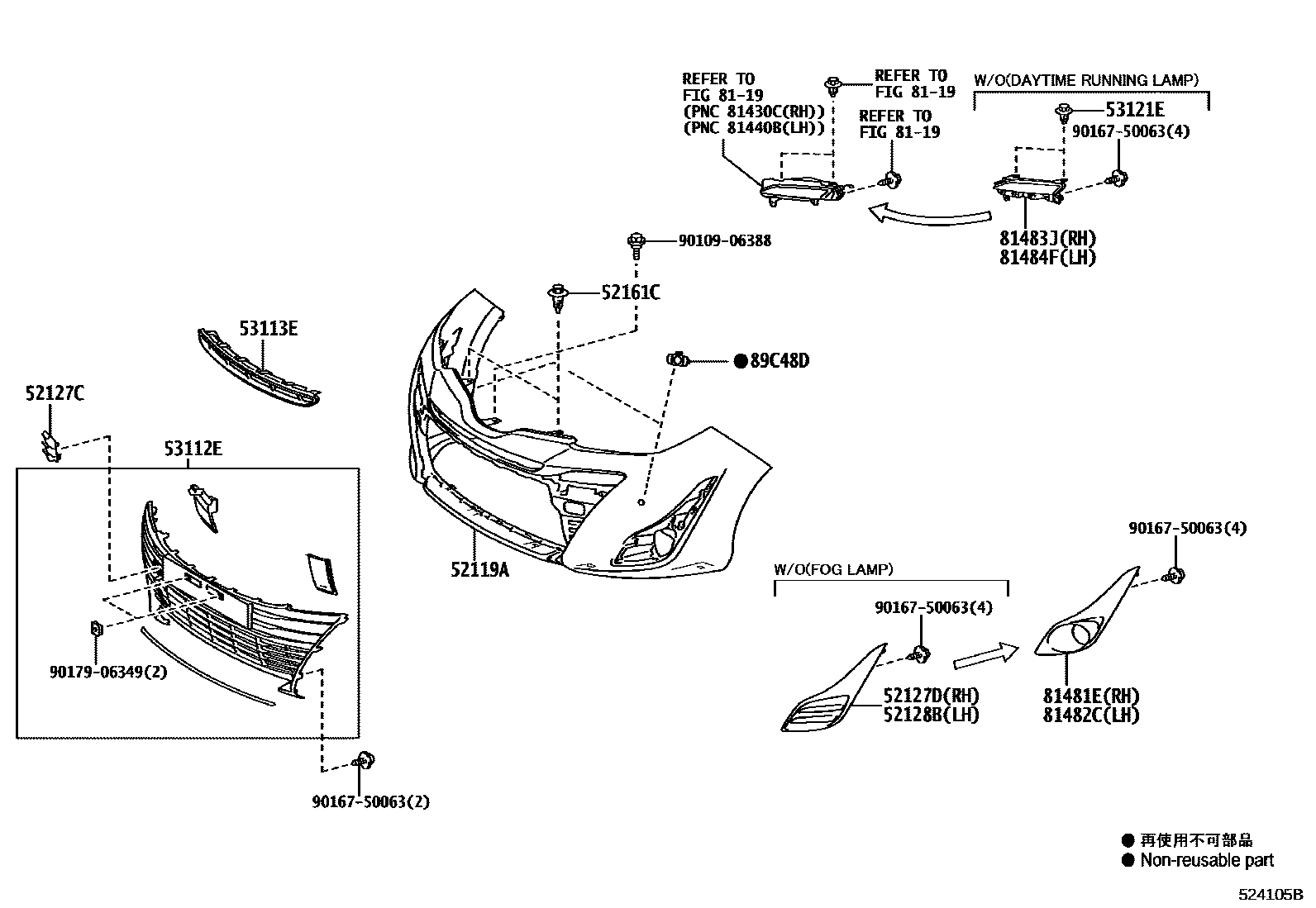

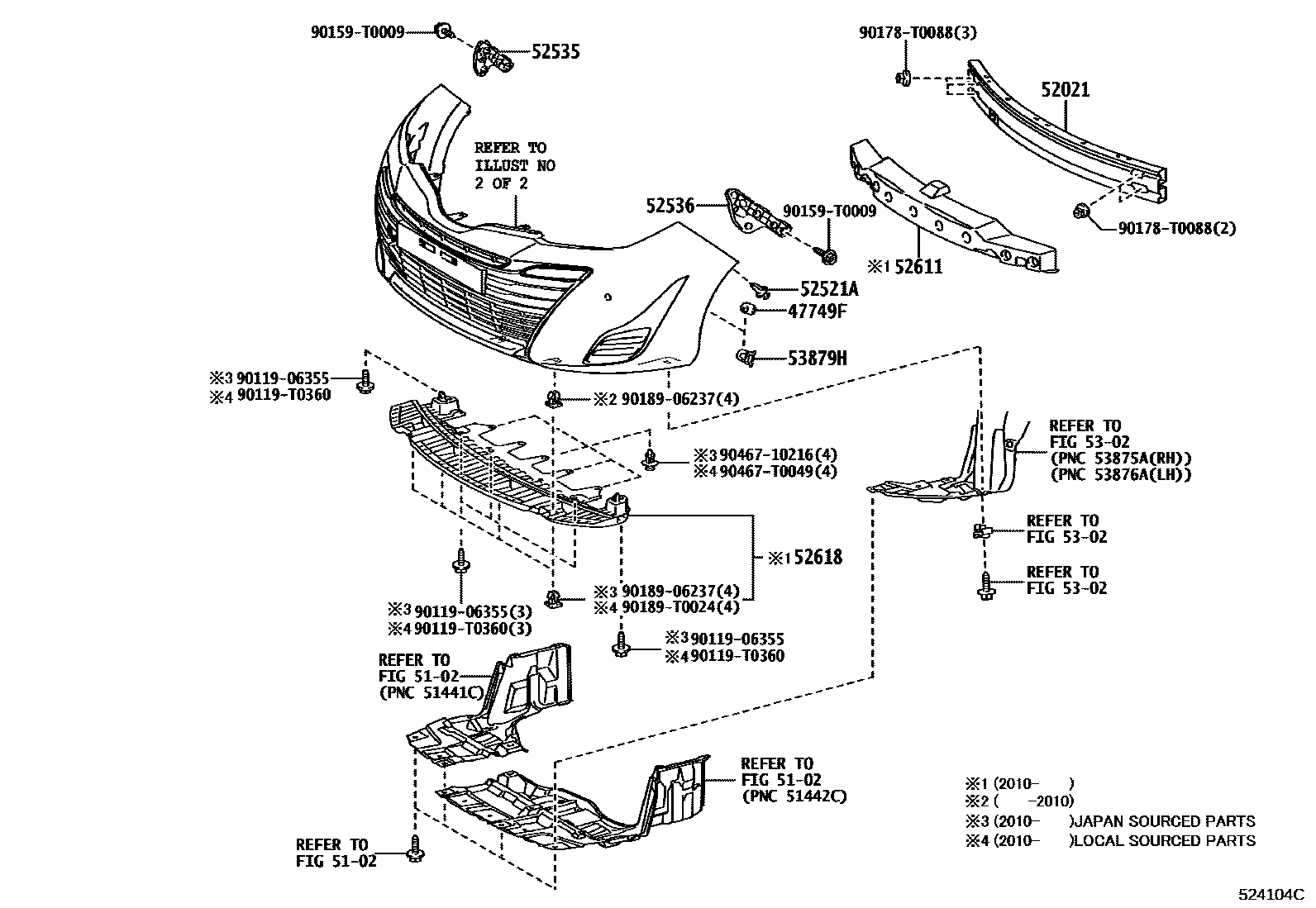

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-33030 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D180 |
| 52119A | front bumper cover | 52119-0U937 · 52119-0U940 |
| 52127C | Front bumper hole cover | 52721-0D230 · 52721-0D250 |
| 52127D | Front bumper right hole cover | 52127-0DA20 |
| 52128B | Front bumper left hole cover | 52128-0D650 |
| 52161C | front bumper insert | 52161-0K040 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52535 | Front bumper right side fixing bracket | 52535-0D250 |
| 52536 | Front bumper left fixed bracket | 52536-0D250 |
| 52611 | front bumper energy absorber | 52611-0D101 |
| 52618 | Front bumper lower shock absorber | 52618-0D110 |
| 53112E | No. 1 radiator lower grille | 53112-0D550 · 53112-0D580 |
| 53113E | No. 2 radiator lower grille | 53113-0D080 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 81481E | Right fog light cover | 52127-0DA10 |
| 81482C | Left fog light cover | 52128-0D660 |
| 81483J | Right daytime running light cover | 81483-0D070 · 81483-0D130 |
| 81484F | Left daytime running light cover | 81484-0D050 · 81484-0D110 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-0D030 |
