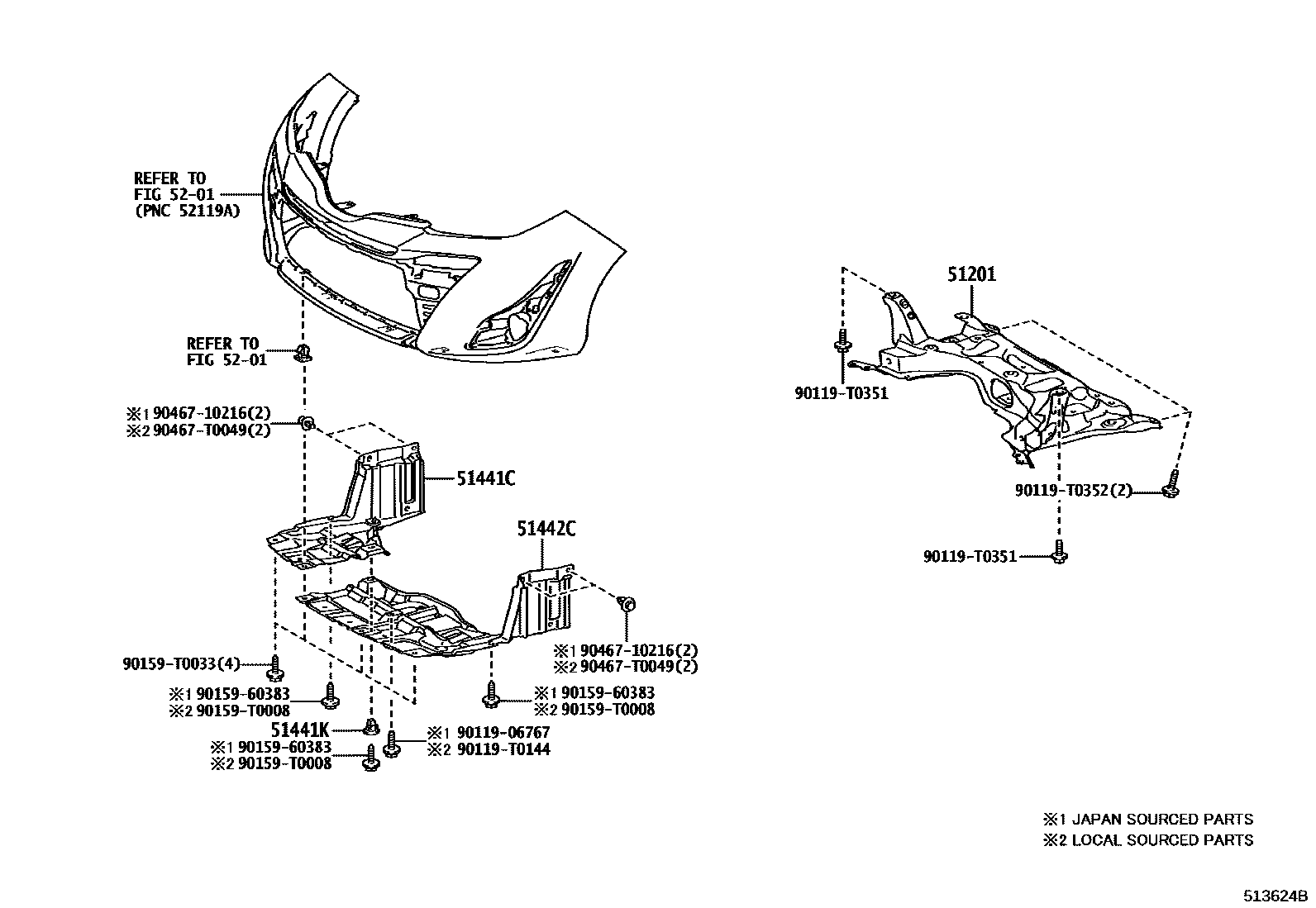

Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0D151 |
| 51441C | Engine right bottom cover | 51441-0D431 |
| 51441K | Gasket (for engine underhood) | 90189-06006 |
| 51442C | Engine left bottom cover | 51442-0D251 |
