Toyota YARIS 制动助力器和真空管 — Figure 4703

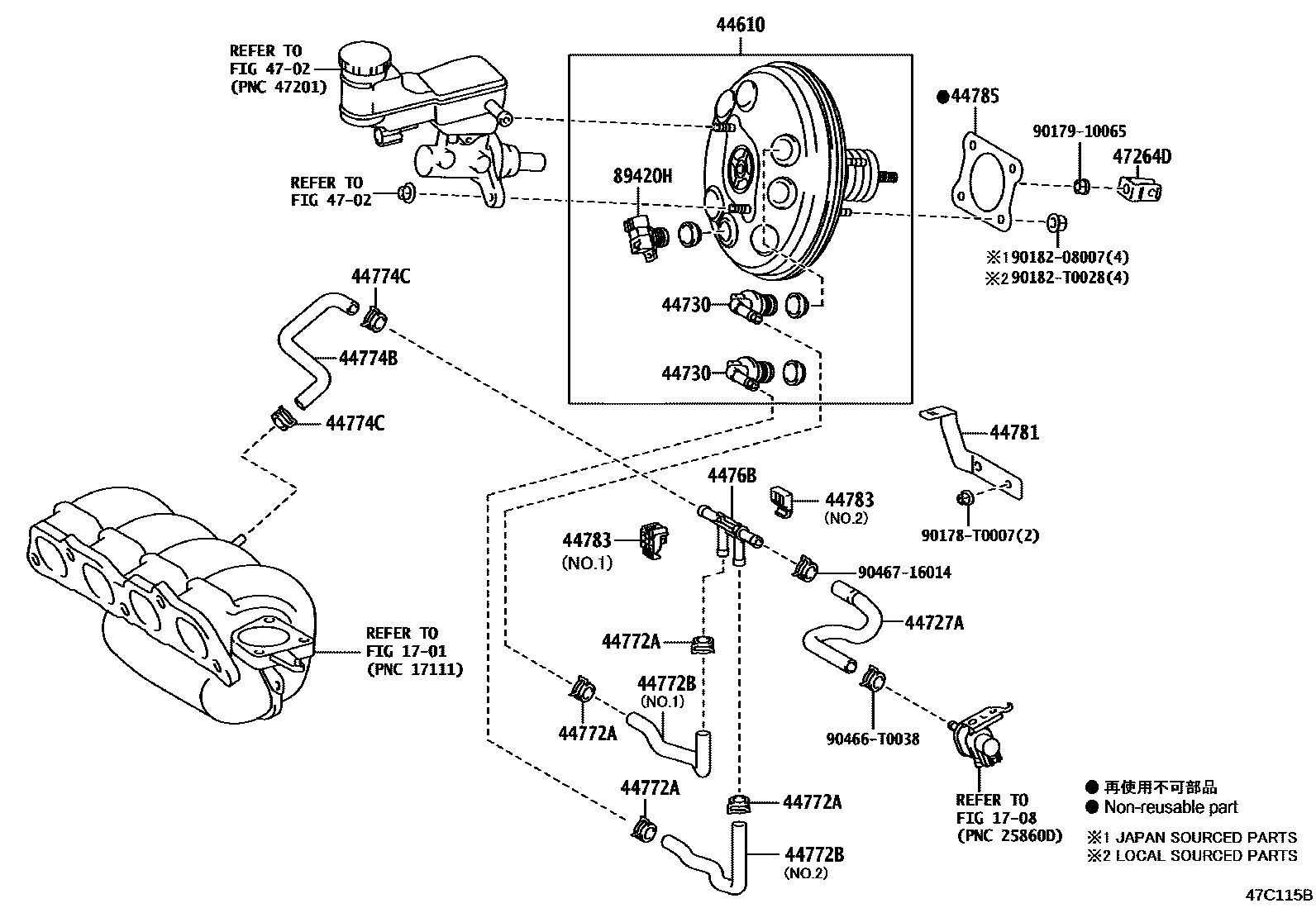

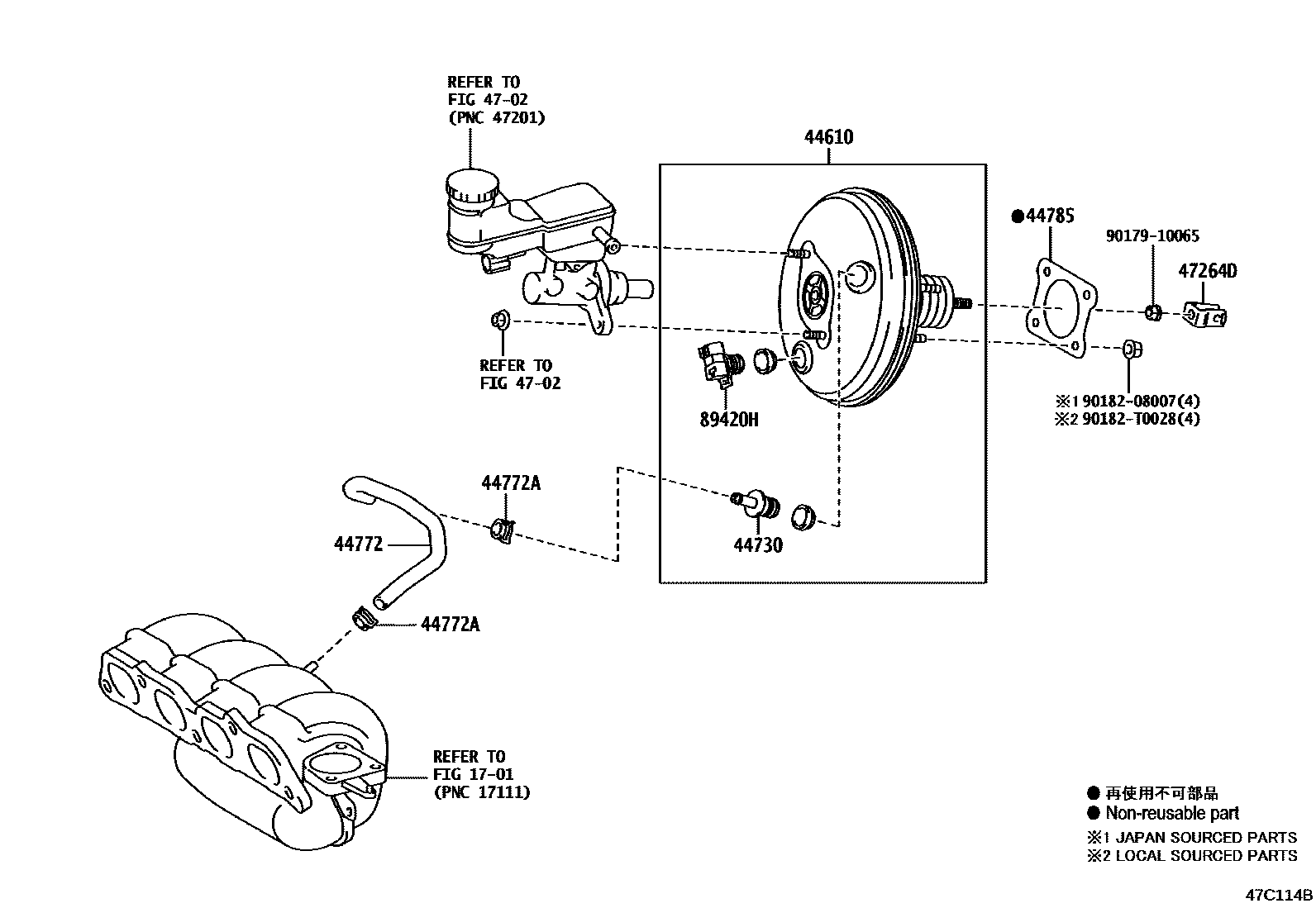

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-0DB80 · 44610-0DB90 · 44610-0DD20 · 44610-0DD30 · 44610-0DD40 · 44610-0DD50 |
| 44727A | Air hose No. 2 | 17342-0Y120 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-0D040 · 44730-28010 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44772 | Hoses (check valve to connector tube) | 44772-0D510 |
| 44772A | Clip (for check valve to connector tube) | 90466-T0054 · 90467-16014 |
| 44772B | Hoses (check valve to brake booster) | 44772-0D520 · 44772-0D530 |
| 44774B | Hoses (joints to connector tubes) | 44774-0D260 |
| 44774C | Clip (for fitting to connector tube hose) | 90466-T0054 · 90467-16014 |
| 44781 | hose holder | 44781-0D180 |
| 44783 | Vacuum hose clamp | 44783-0D020 · 44783-0D030 |
| 44785 | brake booster pad | 44785-0D040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0D020 |
| 89420H | Vacuum sensor assembly | 89421-12160 |
