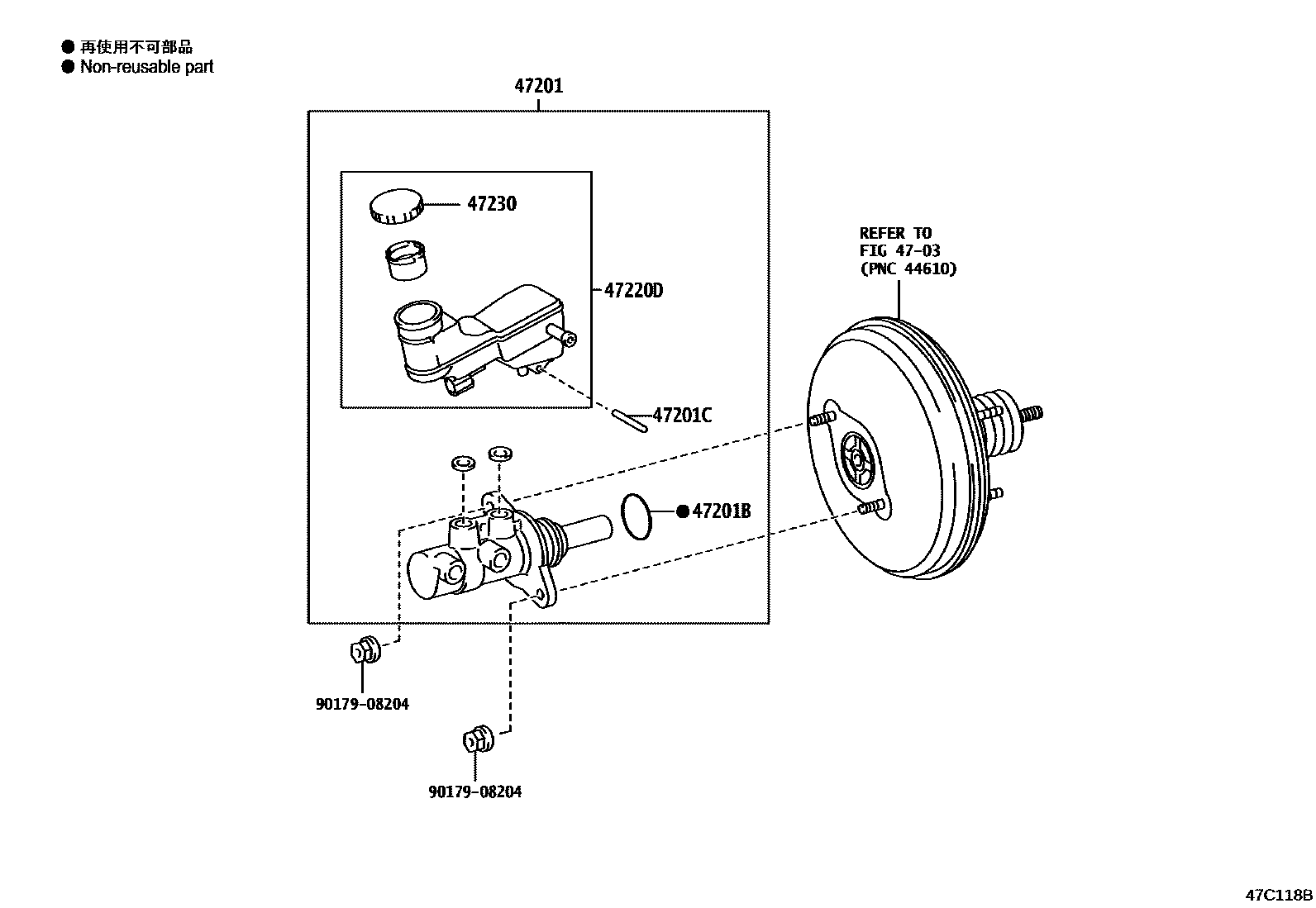

Toyota YARIS 制动总泵 — Figure 4702
Toyota YARIS EPC diagram 4702, 制动总泵, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-0D830 · 47201-0D840 · 47201-0D870 · 47201-0D880 · 47201-0D890 · 47201-0DA00 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH001 |
| 47201C | Brake master cylinder ring pin | 90015-AE401 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-0D450 · 47220-0D460 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D140 |
