Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 28 PNC and OE references.

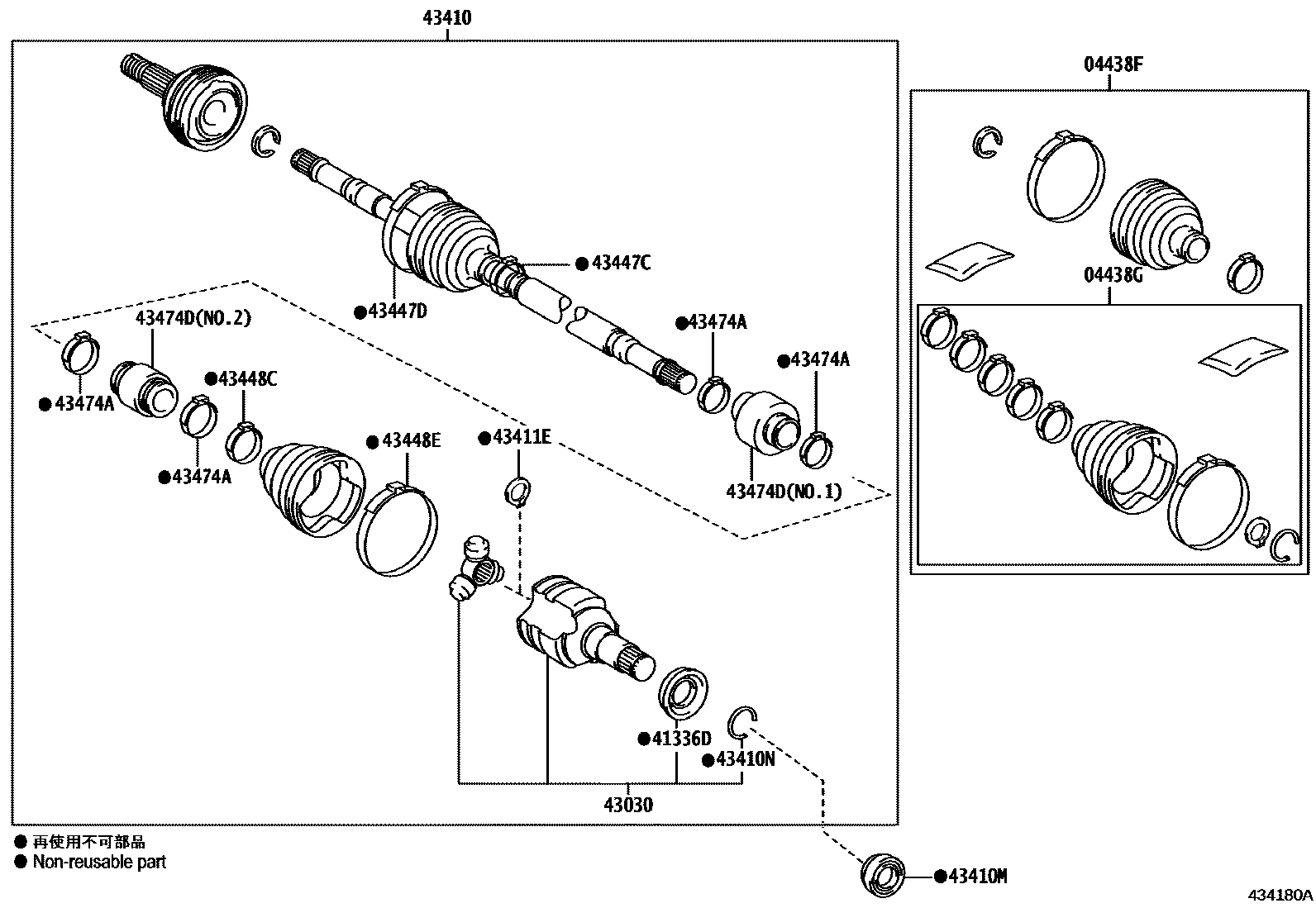

Toyota YARIS Front Drive Shaft EPC diagram — 434243A
Front Drive Shaft — 434243A (201908 – 999999)

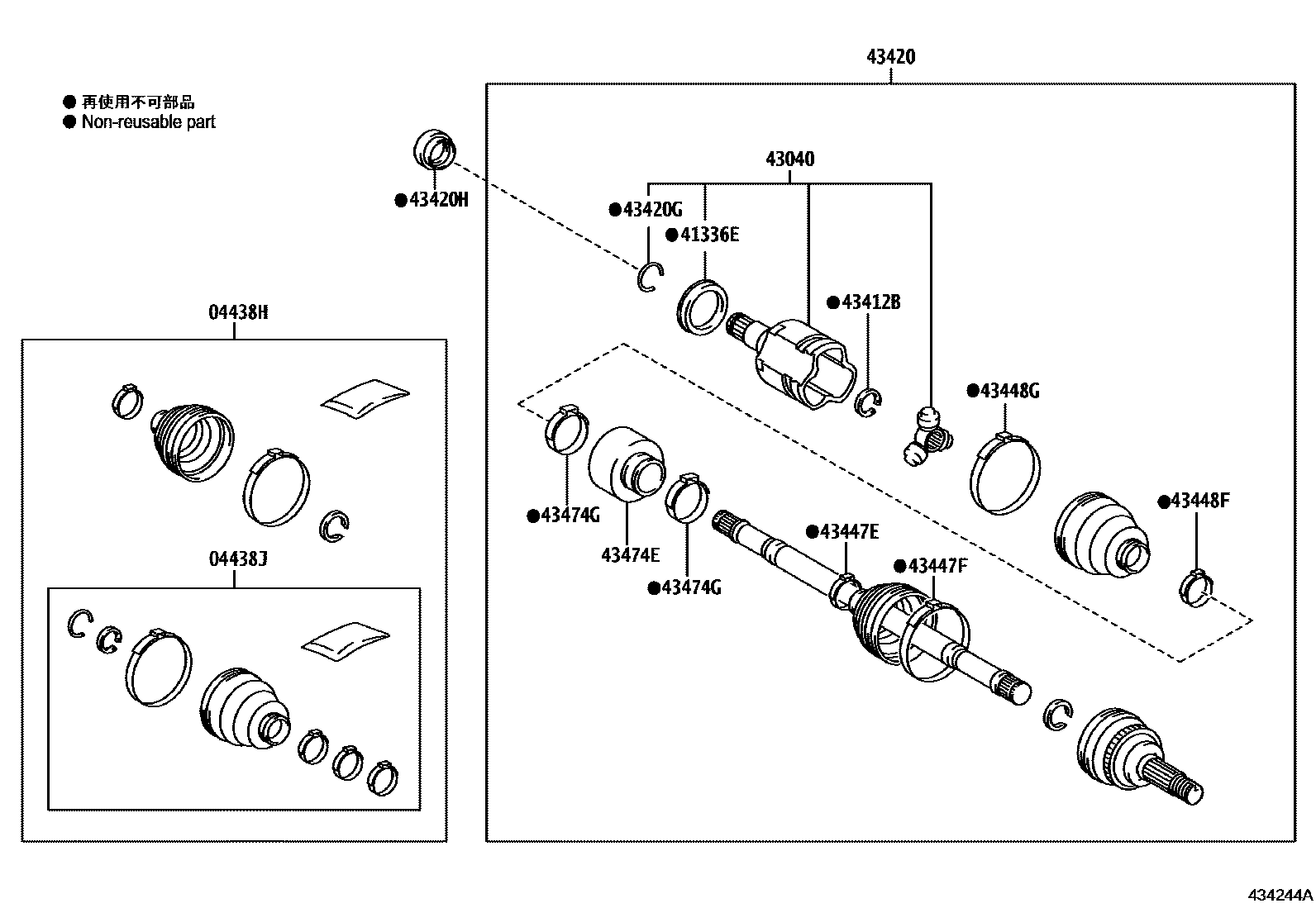

Toyota YARIS Front Drive Shaft EPC diagram — 434244A
Front Drive Shaft — 434244A (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-0D540 · 04427-0D550
04438GRight front drive shaft inner universal joint dust boot assembly04437-0D370 · 04437-0D380
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-0D510 · 04428-0D520
04438JLeft front drive shaft inner universal joint dust boot assembly04438-0D300 · 04438-0D310
41336DRight front driveshaft dust cover41336-02150 · 41336-0D080
41336ELeft front driveshaft dust cover41336-02150 · 41336-0D080
43030Right front drive shaft inner universal joint assembly43040-0D090 · 43040-0D100
43040Left front drive shaft inner universal joint assembly43040-0D090 · 43040-0D100
43410Right front driveshaft assembly43410-0D730 · 43410-0D740
43410MFront drive shaft right oil seal90311-34050 · 90311-T0087
43410NHole snap ring (for right front driveshaft)43425-02260 · 43425-0D200
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-0D480
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-0D480
43420Left front drive shaft assembly43420-0D610 · 43420-0D700
43420GHole snap ring (for left front driveshaft)43425-02260 · 43425-0D200
43420HFront drive shaft left oil seal90311-34051 · 90311-T0085 · 90311-T0105
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-0DC50
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-0DC40
43447EClamp (for left front axle outer universal joint dust cover)42345-0DC50
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-0DC40
43448CClamp (for the universal joint dust cover inside the right front axle)42345-0DC10
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-0DC00
43448FClamp (for left front axle inner universal joint dust cover)42345-0DC10
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-0DC00
43474AClamp (for securing driveshaft damper)42345-0D720
43474DRight front driveshaft shock absorber43474-0D400 · 43474-0D460 · 43474-0D520
43474ELeft front driveshaft shock absorber43474-0D450 · 43474-0D480
43474GClamp (for left front driveshaft shock absorber)42345-0D720
