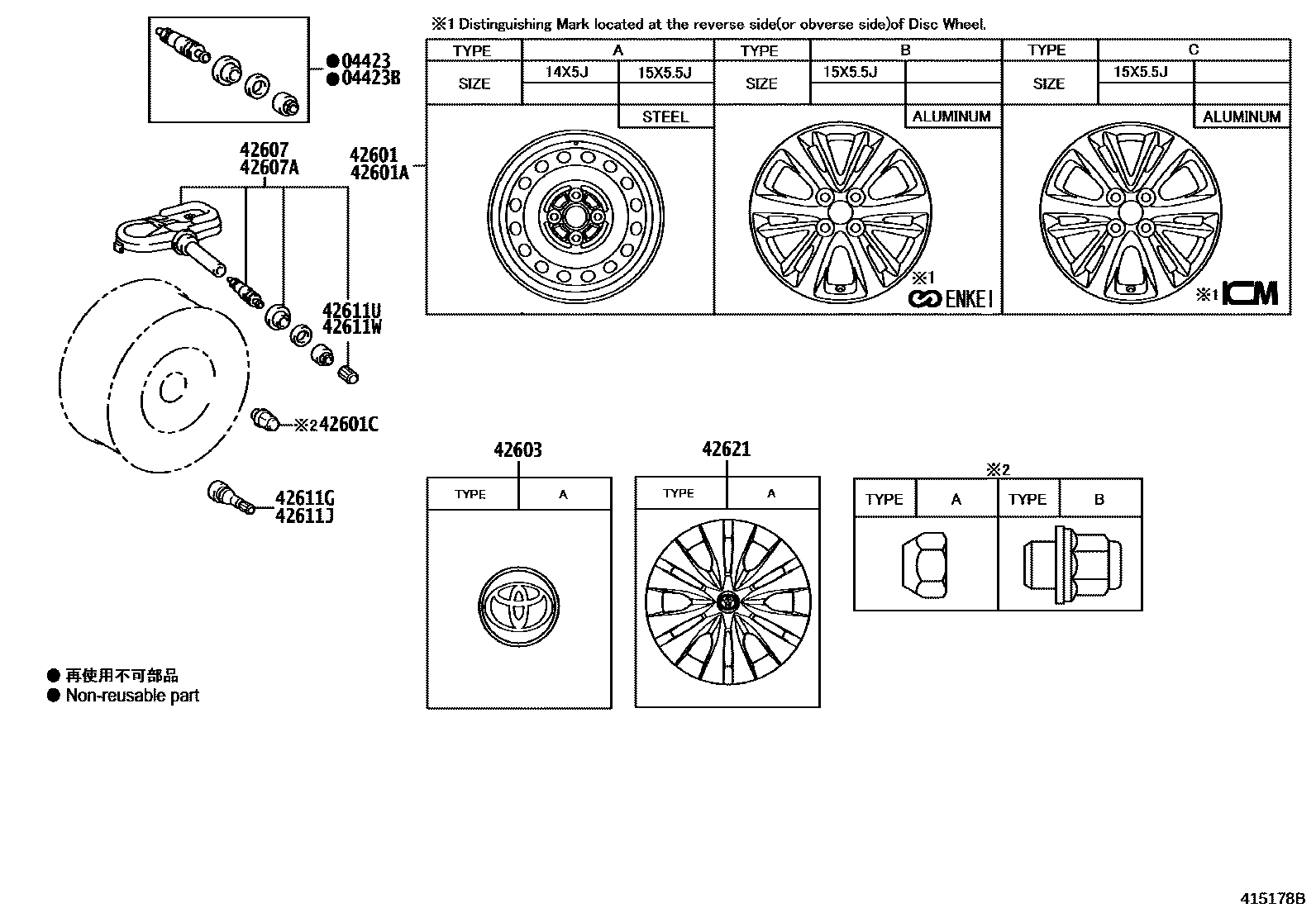

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33060 |
| 42601 | spoke wheel | 42611-0DG01 · 42611-0DG10 · 42611-0DG50 · 42611-0DL30 · 42611-0DL40 |
| 42601A | Spoke wheel (for spare tire) | 42611-0DG01 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-0D200 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-42021 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-42021 |
| 42611G | Valve (for tubeless tires) | 90942-T5001 |
| 42611J | Valve (for tubeless spare tire) | 90942-T5001 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-0D360 |
