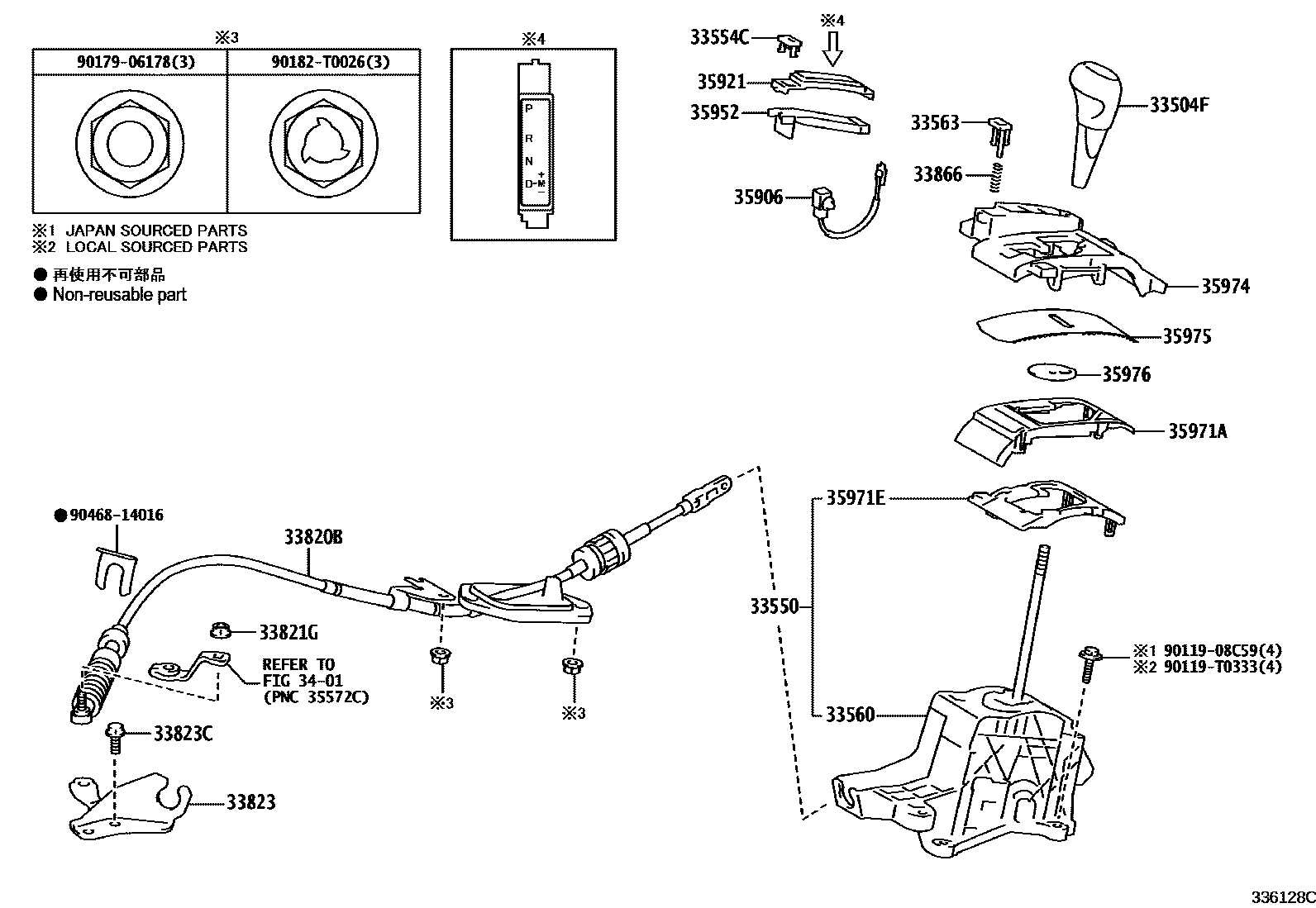

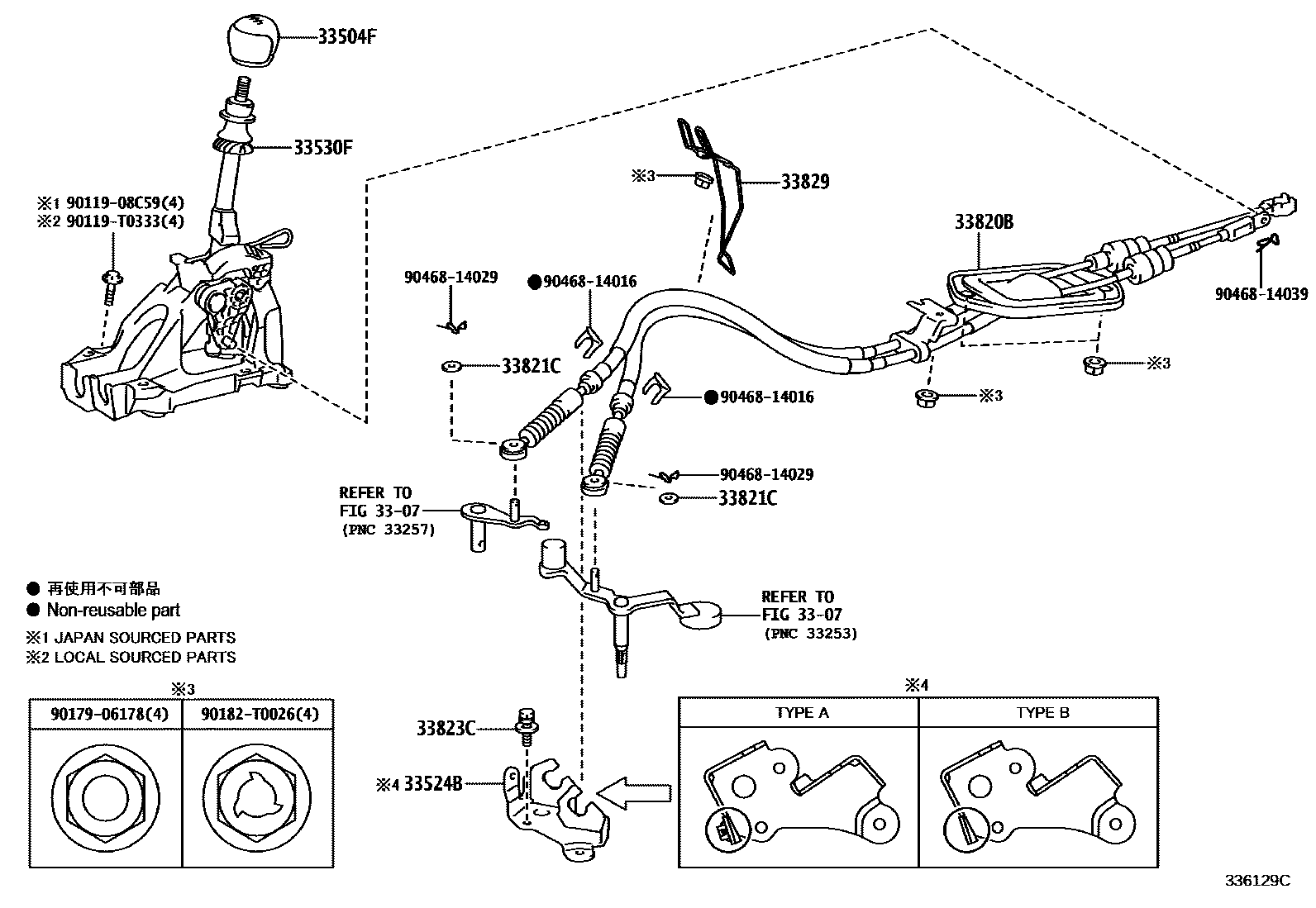

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524B | Control cable bracket | 33524-0D150 · 33524-0D190 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0D250 |
| 33550 | Transmission floor shift assembly | 33550-0D610 |
| 33554C | Shift lock release button cover | 33554-0D240 · 33554-0D360 |
| 33560 | Shift lock control unit assembly | 33560-0D160 |
| 33563 | Shift lock release button | 33563-0D140 |
| 33820B | Transmission control cable assembly | 33820-0D710 · 33820-0D720 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90179-08040 |
| 33823 | No. 1 transmission control cable bracket | 33823-0D230 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-T0102 · 90119-T0342 · 91671-80820 |
| 33829 | Transmission control cable bracket | 33829-0D160 |
| 33866 | Shift lock release spring | 33866-06030 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-0D290 |
| 35921 | control position indicator board | 35921-0D160 |
| 35952 | Position indicator lampshade | 35952-0D030 |
| 35971A | Position indicator light upper shell | 35971-0D560 |
| 35971E | position indicator housing | 35971-0D580 |
| 35974 | Position indicator light lower shell | 35974-0D100 |
| 35975 | Slide cover (for position indicator light) | 35975-0D120 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-0D140 |
