Toyota YARIS 离合器壳和变速器壳(MTM) — Figure 3302

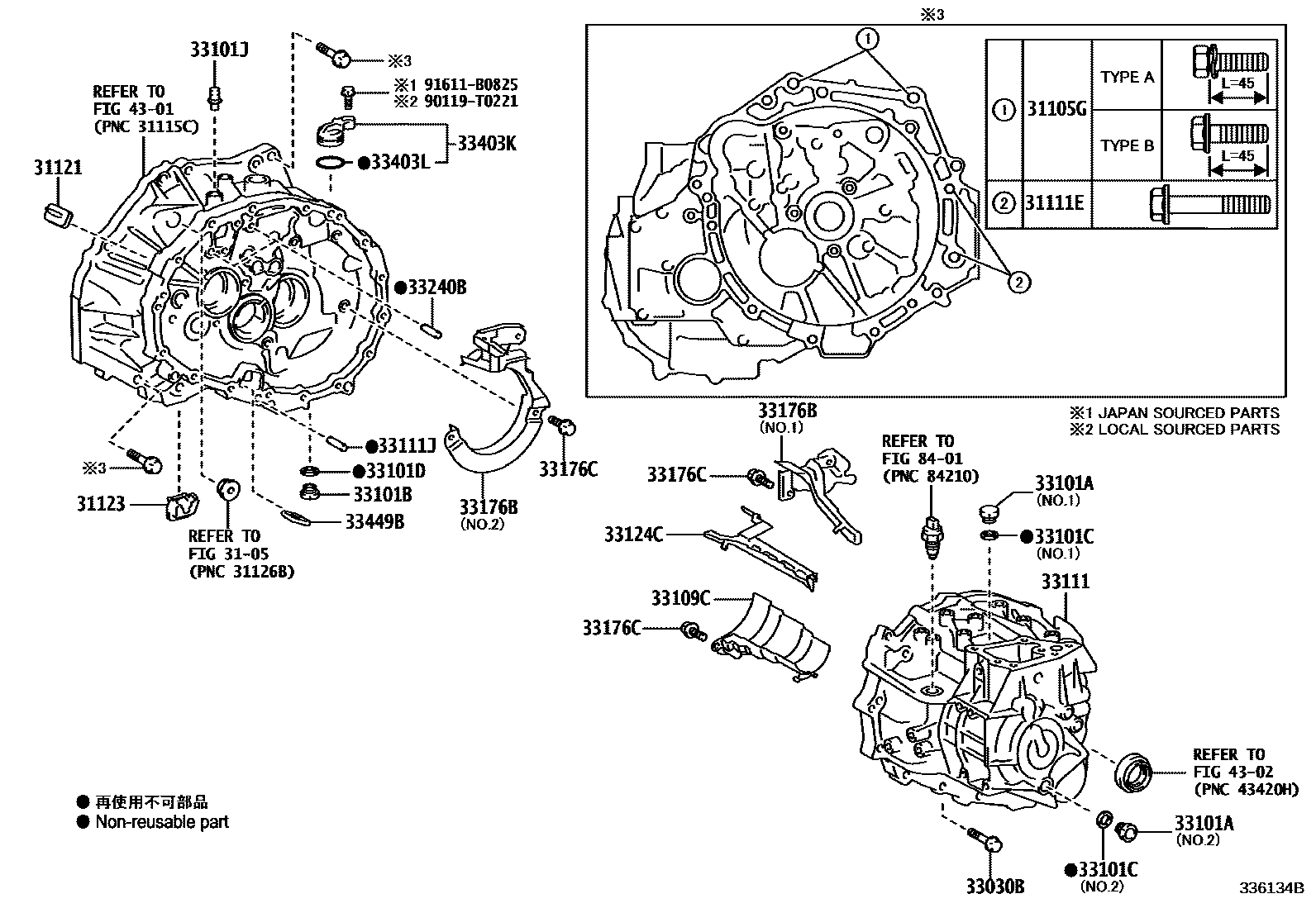

Toyota YARIS EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-T0173 · 90119-T0310 · 91552-81245 · 91619-61245 |
| 31111E | Bolts (for securing transaxle and engine) | 90105-T0331 · 91552-81280 |
| 31121 | No. 1 clutch housing cover | 31121-0D070 |
| 31123 | No. 2 clutch housing cover | 31121-52120 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 91551-10840 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-14032 · 90341-18033 |
| 33101B | Screw plug (for manual transmission drain port) | 90341-18023 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-T0011 · 90430-T0026 |
| 33101D | Gasket (for manual transmission drain plug) | 90430-T0011 |
| 33101J | vent plug | 90930-03133 |
| 33109C | Manual transmission oil separator sub-assembly | 33109-52011 |
| 33111 | Manual transmission housing | 33111-0D150 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-0D040 |
| 33176B | Transmission oil separator (MTM) | 33176-20080 · 33176-20090 |
| 33176C | Bolt (for transmission oil separator) | 90105-W0035 |
| 33240B | Direct sale (for reverse shift arm bracket) | 90250-08054 |
| 33403K | Speedometer driven gear hole cover sub-assembly | 33403-0D020 |
| 33403L | O-ring | 96711-24030 |
| 33449B | derailleur magnet | 33449-20010 |
