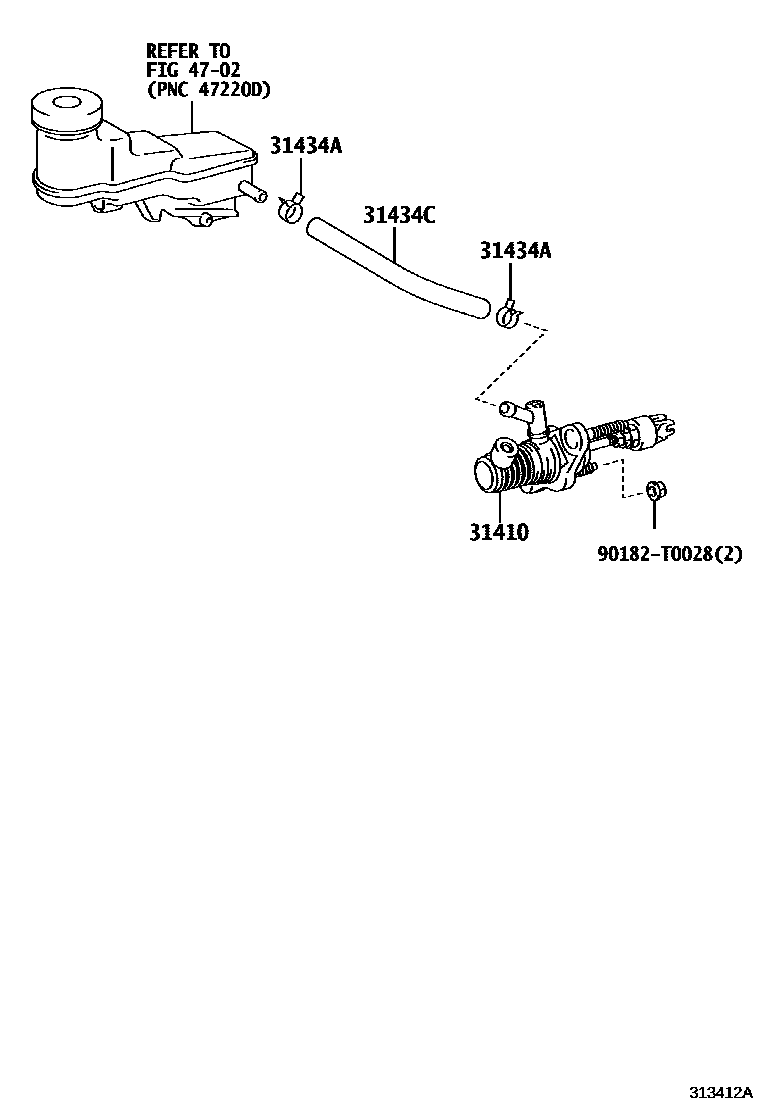

Toyota YARIS 离合器总泵 — Figure 3103
Toyota YARIS EPC diagram 3103, 离合器总泵, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-12030 |
| 31434A | Clamp (for clutch reservoir connecting pipe) | 90466-T0052 |
| 31434C | Clutch reservoir connecting pipe | 31434-0D010 |
