Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 1 images and 5 PNC and OE references.

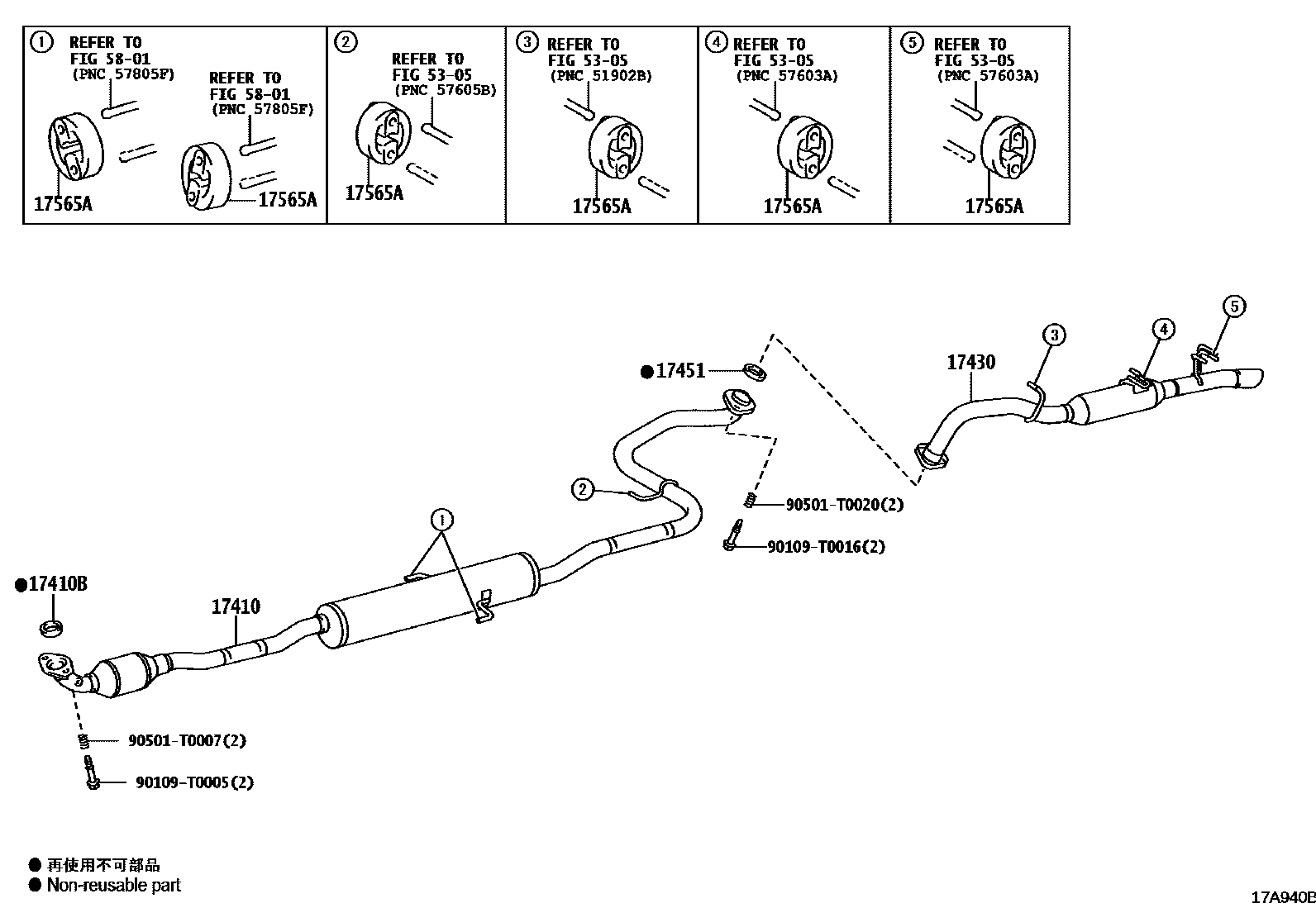

Toyota YARIS Exhaust Pipe EPC diagram — 17A940B — Exhaust Pipe — 17A940B (201908 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-0Y470 · 17410-0Y630
17410B	Exhaust pipe gasket	17451-0Y020
17430	Exhaust tailpipe assembly	17430-0Y330
17451	Exhaust pipe gasket	17451-0M032
17565A	No. 4 exhaust pipe lifting lug	17565-0Y010
