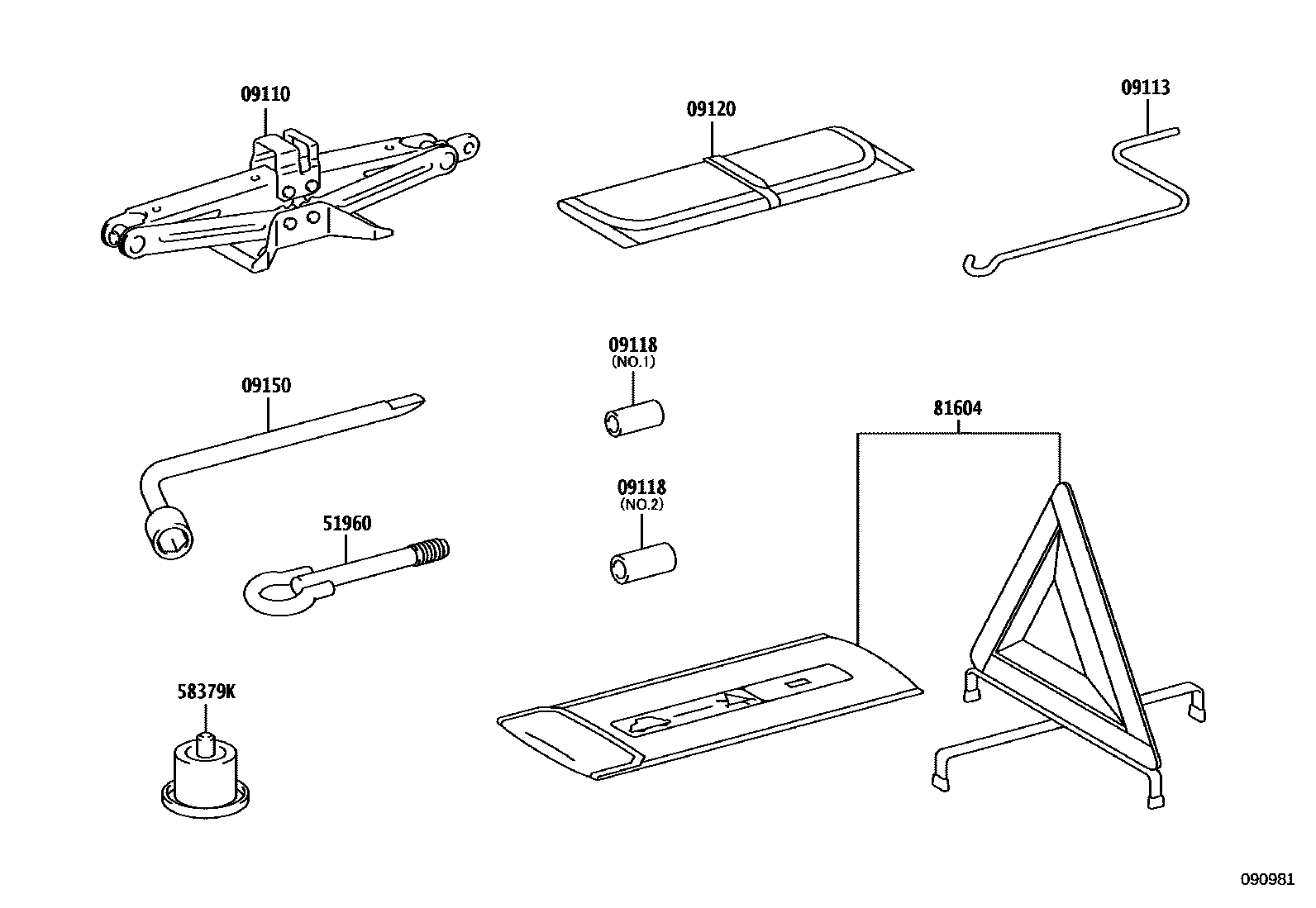

Toyota YARIS Standard Tools — Figure 0901
Toyota YARIS EPC diagram 0901, Standard Tools, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0D100 |
| 09113 | Jack Handle | 09113-0D140 |
| 09118 | jack cover | 09118-0D030 · 09118-0D040 |
| 09120 | Tool Bag | 09120-0D070 |
| 09150 | Wheel Nut Wrench Case | 09150-02080 |
| 51960 | Front Towing Hook Assembly | 51960-0D230 |
| 58379K | Body lower back panel protection parts | 58379-0D040 |
| 81604 | Triangular reflector assembly | 81604-0D020 |
