Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719

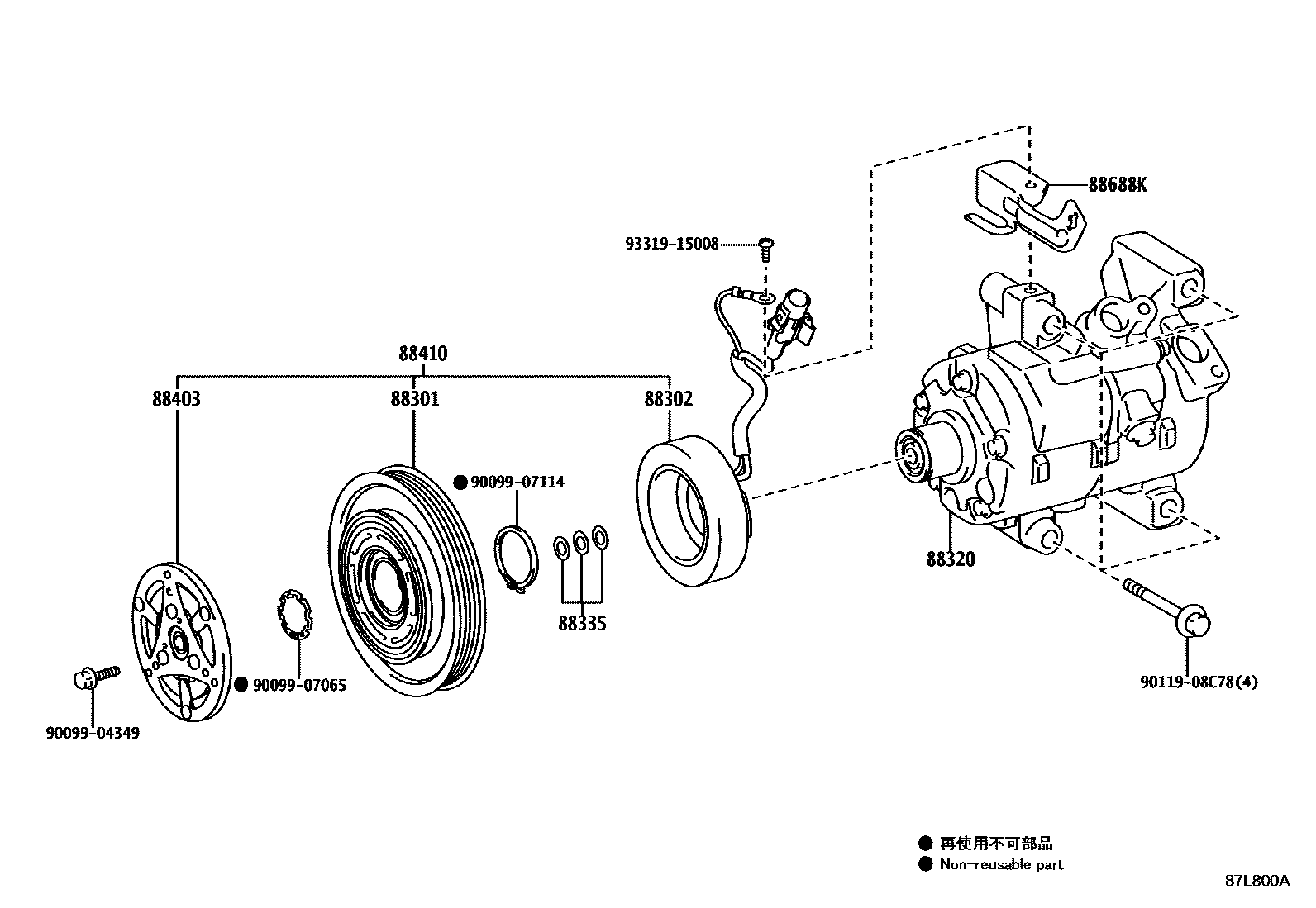

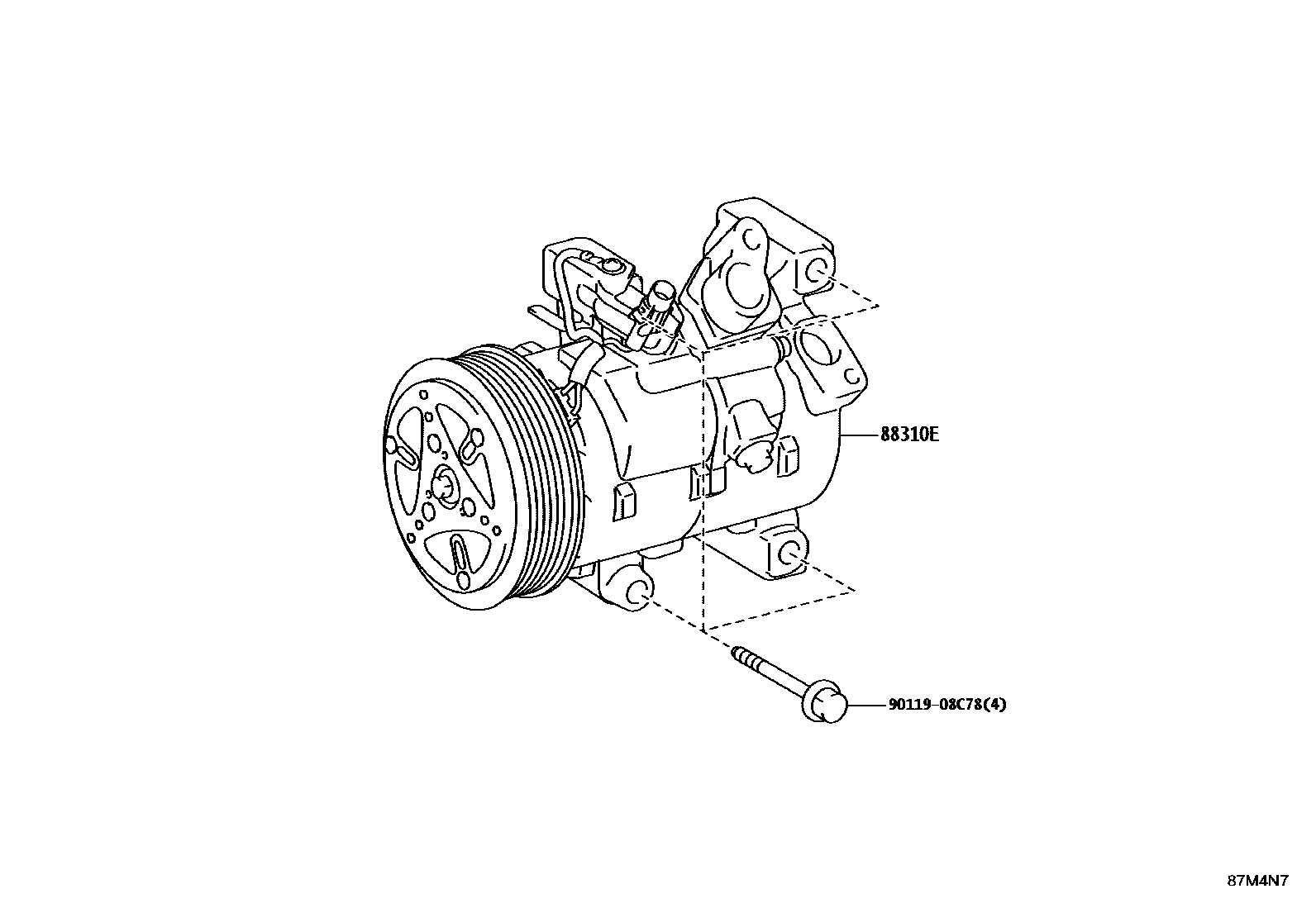

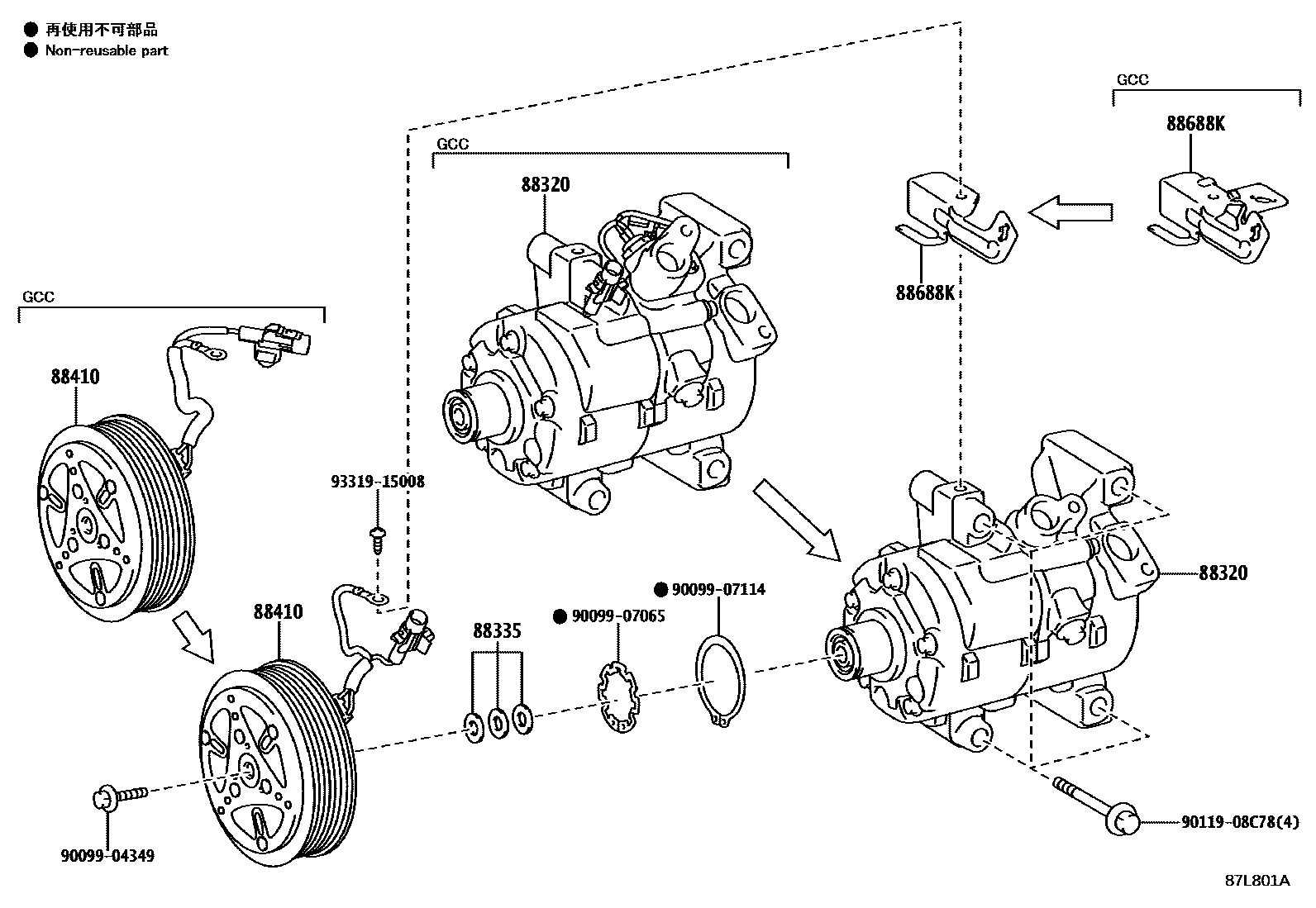

Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-0D230 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-0D240 |
| 88310E | Compressor with electromagnetic clutch | 88310-0DB90 |
| 88320 | Cooler Compressor Assembly | 88320-0D140 · 88320-0D150 |
| 88335 | Overhaul gasket assembly | 88335-30420 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-0K080 |
| 88410 | Magnetic Clutch Assembly | 88410-0D380 · 88410-0D390 · 88410-0D440 |
| 88688K | Cooler compressor bracket | 88849-0D050 · 88849-0D070 |
