Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

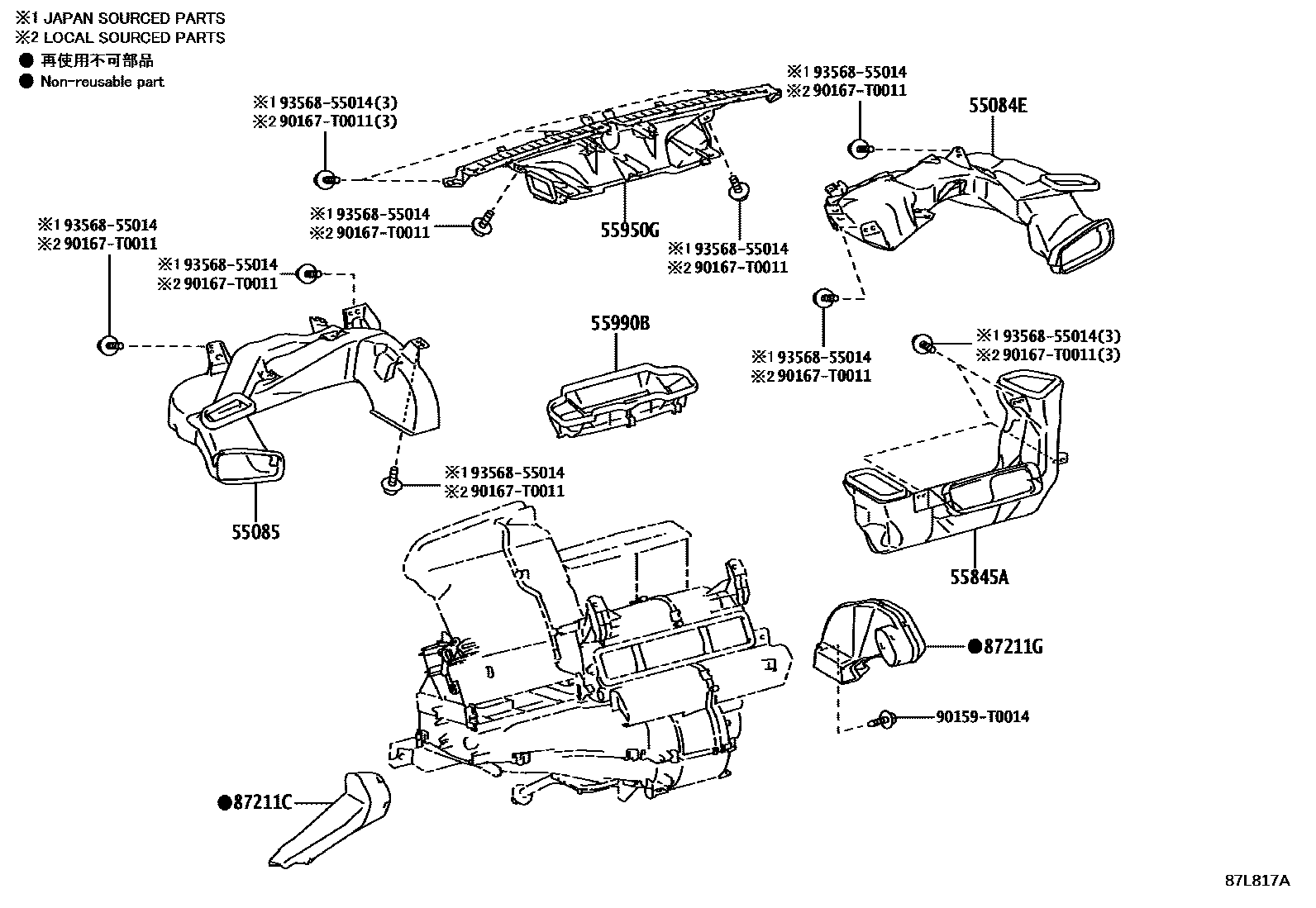

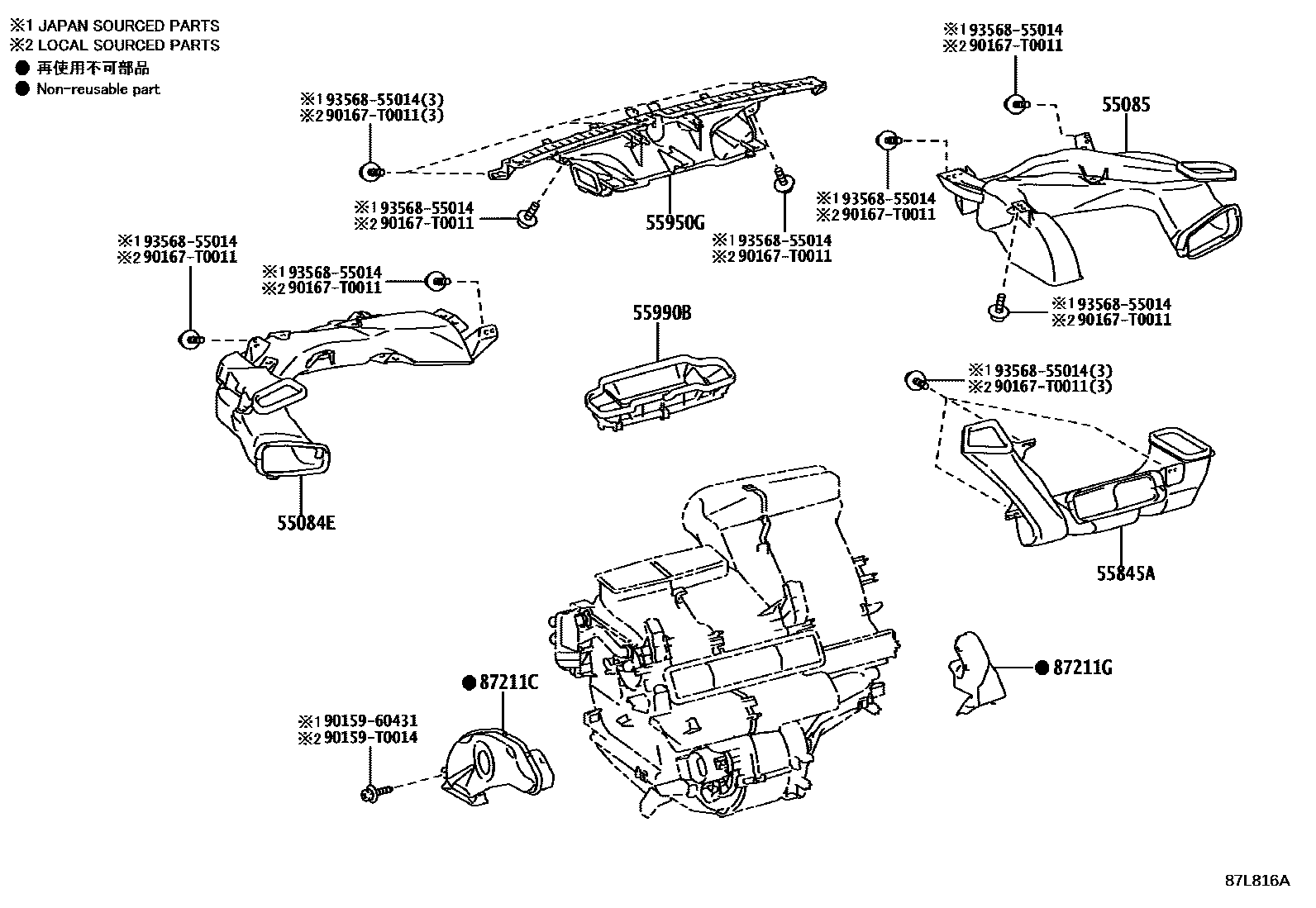

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-0D190 · 55084-0D200 · 55084-0D210 · 55084-0D280 · 55084-0D320 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-0D140 · 55085-0D150 · 55085-0D160 · 55085-0D230 · 55085-0D250 |
| 55845A | Air duct No. 3 from heater to air regulator | 55870-0D020 · 55870-0D030 · 55870-0D040 · 55870-0D110 · 55870-0D130 |

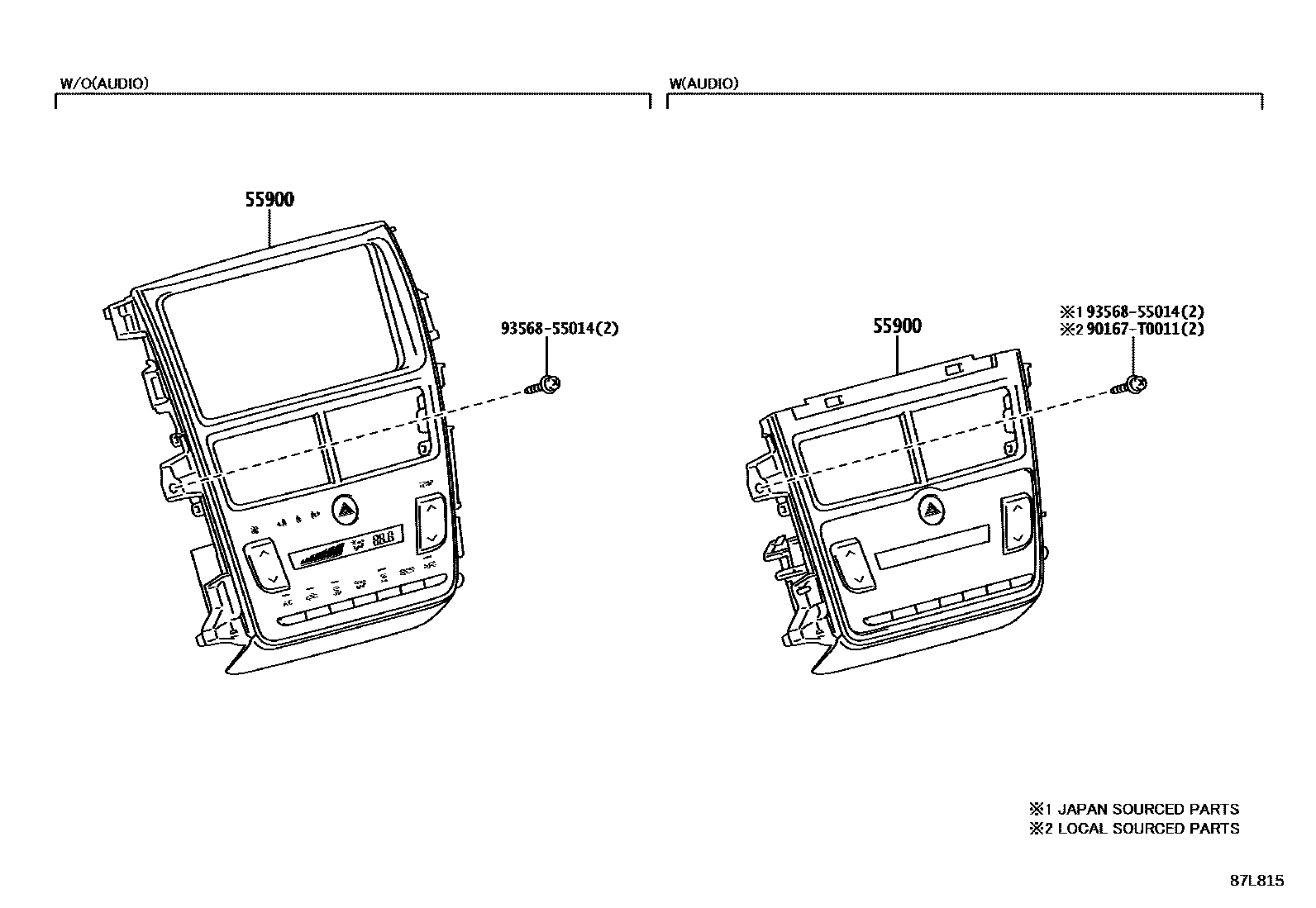

| 55900 | Air conditioning control assembly | 55900-0DJ90 · 55900-0DN70 · 55900-0DN80 · 55900-0DN90 |

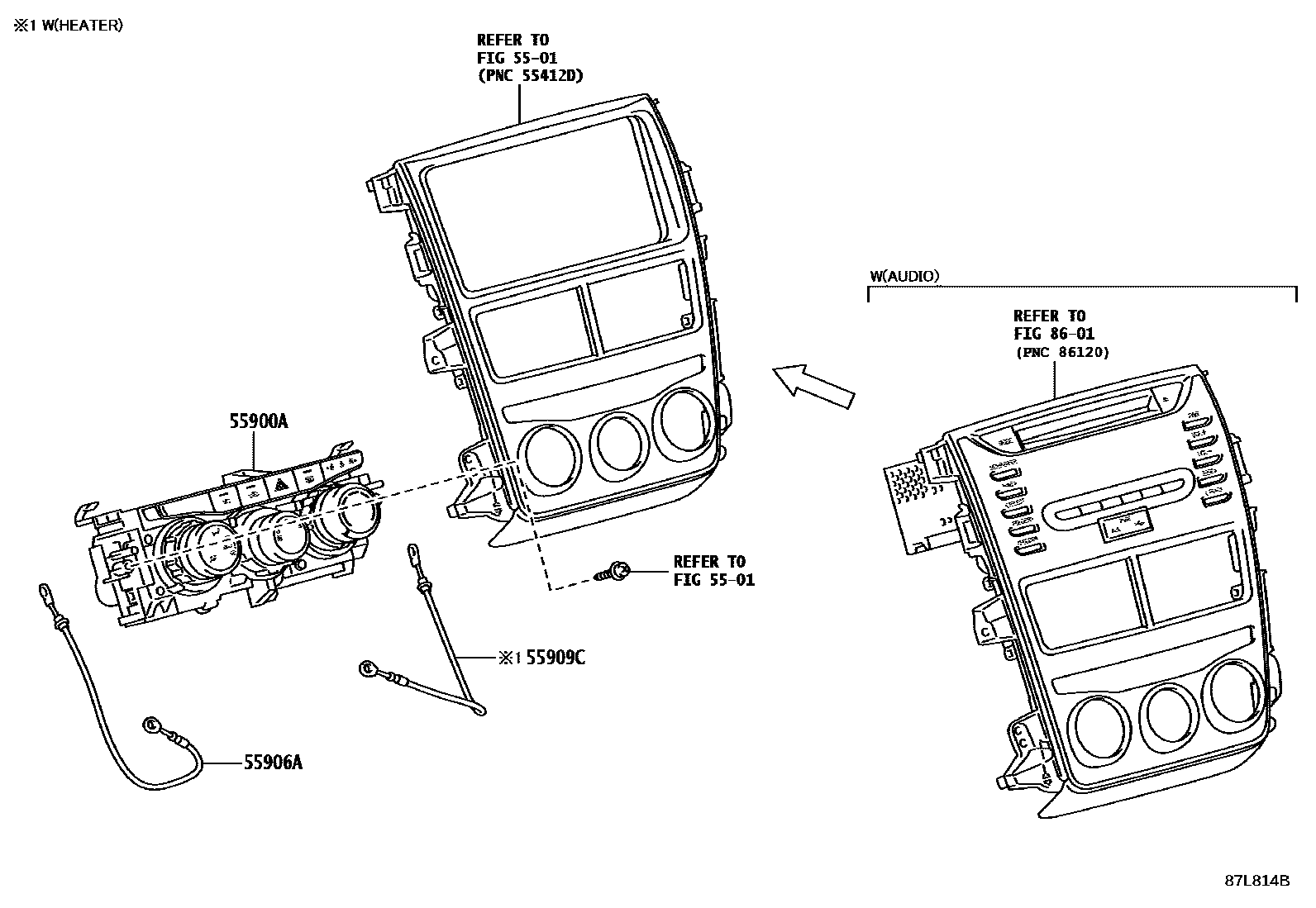

| 55900A | Heater control and accessory assembly | 55900-0DA40 · 55900-0DA60 · 55900-0DB20 · 55900-0DF80 · 55900-0DG20 · 55900-0DJ50 · 55900-0DJ60 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0D180 · 55906-0D190 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0D090 · 55909-0D170 |
| 55950G | Defroster nozzle assembly | 55950-0D270 · 55950-0D280 · 55950-0D340 · 55950-0D350 |
| 55990B | Lower defroster nozzle assembly | 55990-0D030 · 55990-0D040 · 55990-0D090 · 55990-0D120 |
| 87211C | No. 4 air duct | 87211-0D300 · 87211-0D380 · 87211-0D560 · 87211-0D650 |
| 87211G | No. 5 air duct | 87211-0D320 · 87211-0D550 · 87211-0D620 · 87211-0D640 |

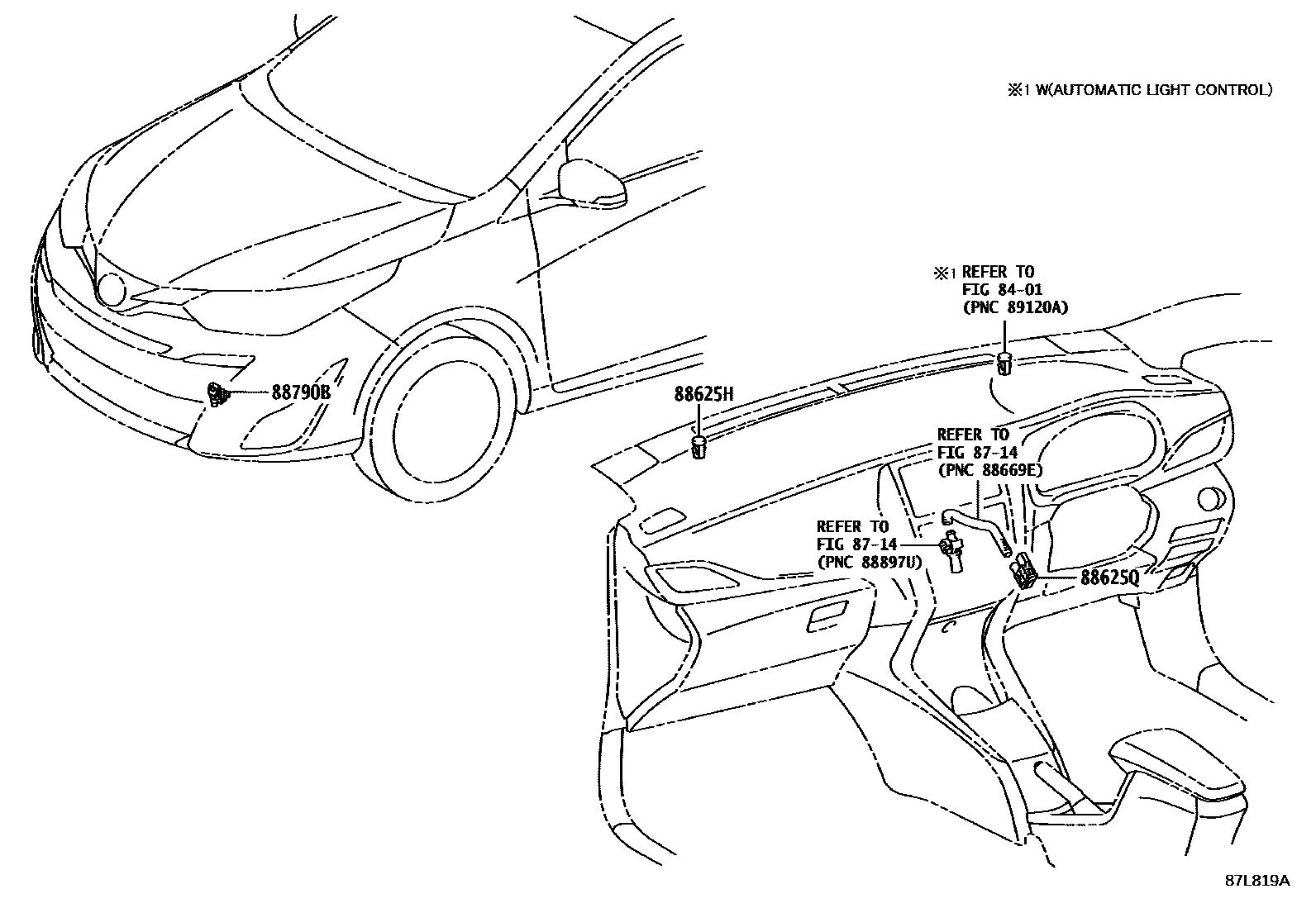

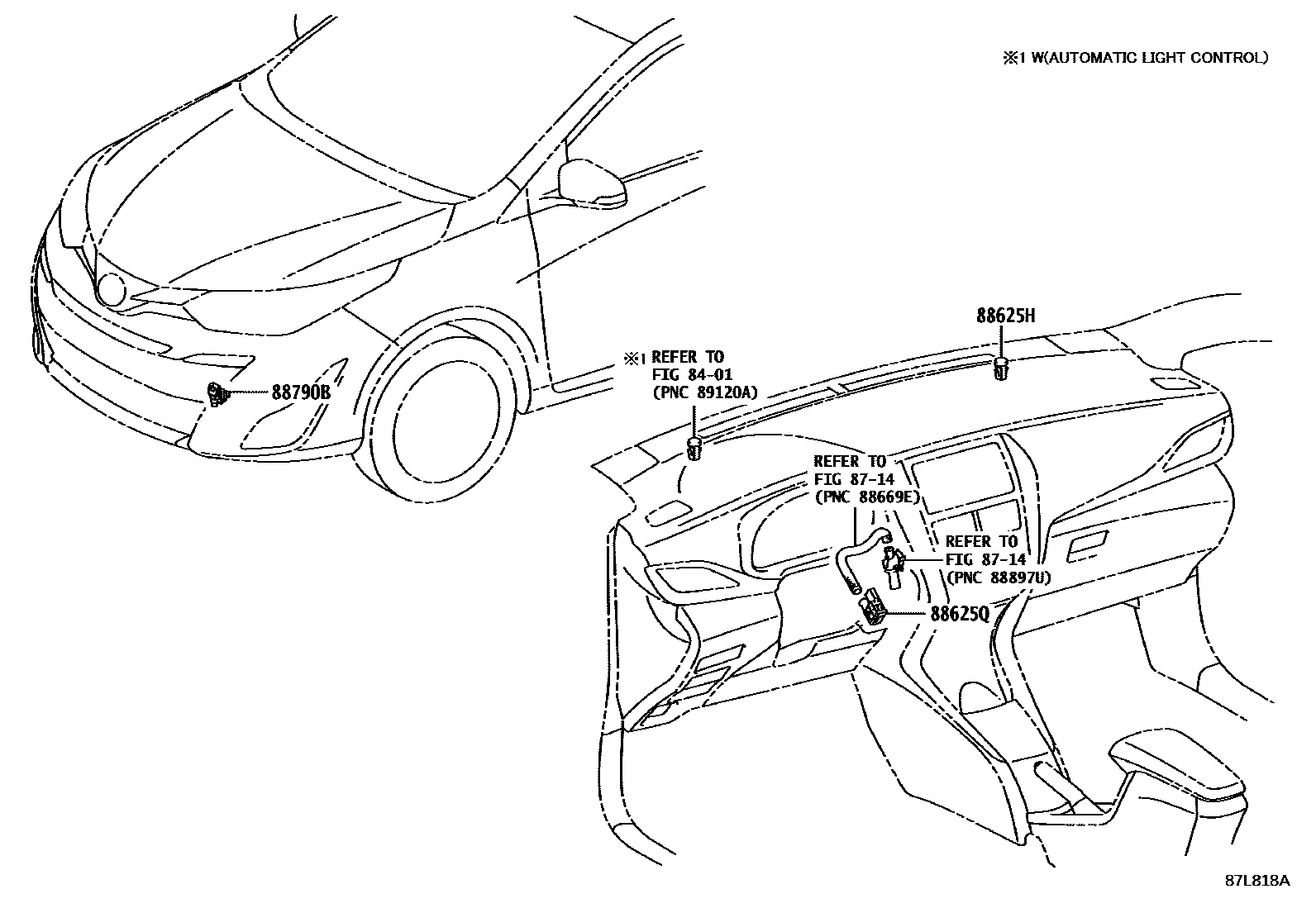

| 88625H | Cooler thermistor (sunlight sensor) | 88625-52130 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-0K010 · 88790-22131 · 88790-28100 |
